H/D VGA DVI Audio LVDs Controller Board 30 pin for 17" 19" 1280x1024 M170EG01 M170EN01 M170EN06 M170ETN01 1 LCD Gaming Screen Panel Description

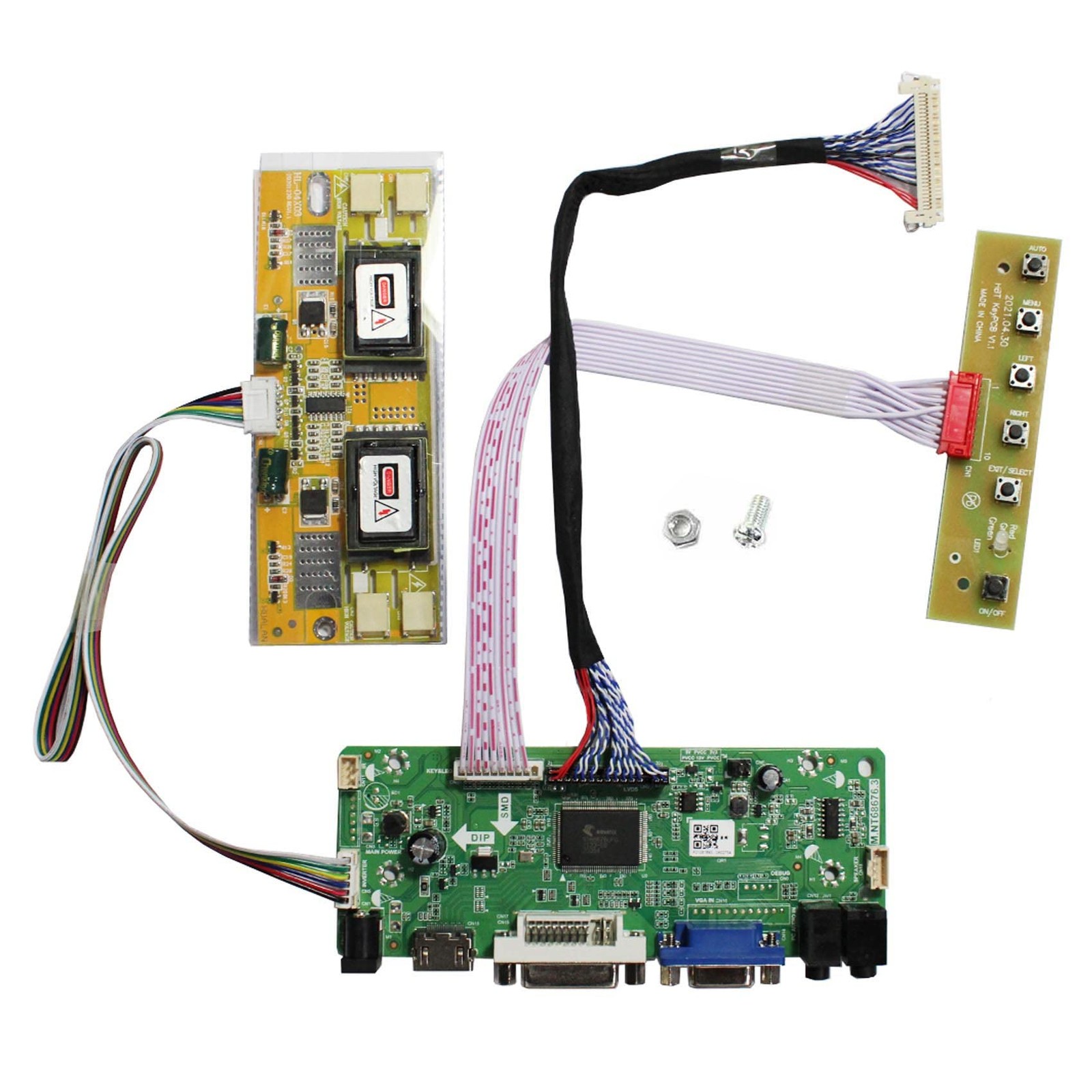

LCD Controller Board:DVI VGA AUDIO LCD Board Work for LVDS Interface LCD ScreenInput Power Adapter:12Vdc More than 3A.Come In Standby Model When Not Input SignalStandby Model LTM170EU LTM170EH LTM170E5 LTM170E619inch 1280x1024LM190E02 LM190E03 LM190E08 M190E5 G190EG01M190EG02 M190EG03 M190EN01 HSD190MEN4HSD190ME11 HSD190ME12 HSD190ME13 LTM190EXLTM190E1 LTM190E2 LTM190E3Packing list :1× VGA DVI LCD Controller Board M.NT686761× 4CCFL Inverter Board1× 30Pin Signal Cable1× Keyboard With Cable

Features:

• 【LCD Driver Board】 Work for 1280x1024 30Pin 5V LVDs LCD display,video input: VGA DVI ,Audio output: speaker connector ( 8ohm 2W 4Pin PH2.0 connection),Pls use in insulated environment.
• 【Compatible Screen models 】17" LTM170EU LTM170EH LTM170E5 LTM170E6 HSD170ME13 M170EG01 M170EG02 M170EN01 M170EN04 M170EN05 M170EN06 LM170E03 , 19" LM190E02 LM190E03 LM190E08 G190EG01 M190EG02 M190EN01 HSD190ME11 HSD190ME12 HSD190ME13 LTM190EX
• 【Plug and play】with compatible screen , Connecting the cables and ports as link pictures, Power on ,enter into VGA/DVI signal,the screen can be lit.
• 【Input power supply】12V DC more than 3A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
• 【Board failure self-check】: Directly power on board ,The LED light green/red means board can work normally ;Then connect screen port, No enter ,the"no siganl" words showing on screen means the problem comes from ,Pls try with other cable /resource; White/Black screen ,Check screen port connecting/resolution/5V jumper pin/resource.

Product Details:

• Publisher: VSDISPLAY
• Publication date: 0
• ISBN-13: 060-1285614397
• Dimensions: 12.5 x 5.8 x 1.7 cm
