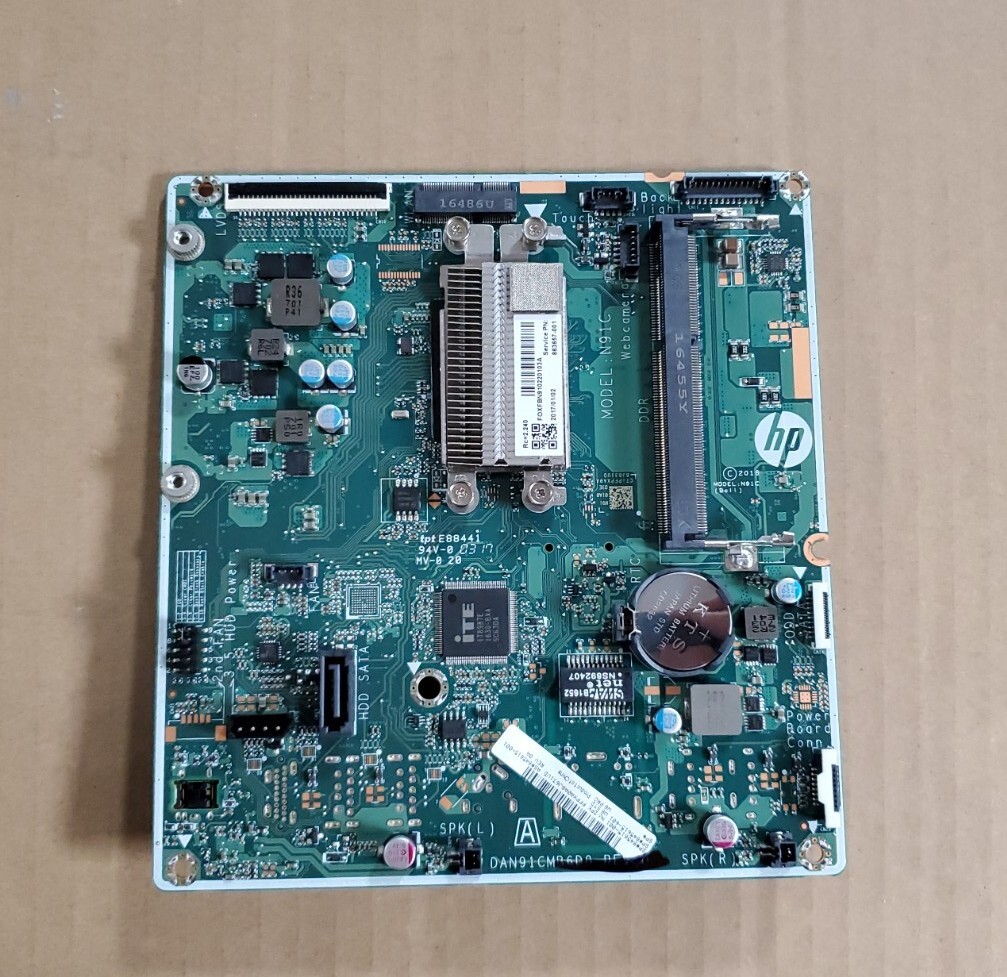

HP Desktop PCs - Motherboard Specifications, Bali-UFigure: Bali-U motherboardMotherboard description

• HP name: Bali-U
• SSID: 8245

Form Factor

• Customized: 15.0x14.0 cm (5.9x5.5 in)

ChipsetThe chipset on this motherboard is combined with the processor into a single integrated circuit called System on a Chip (SoC). This technology combines the processor and chipset functionality into a single physical package.Processor upgrade information

• Supports the AMD E2-7110, AMD A4-7210, AMD A6-7310, AMD A8-7410 (Carrizo-L) Quad Core processors only. The processor is not upgradeable.

Memory upgrade information

• Single channel memory architecture
• One DDR3L SODIMM (204-pin) socket
• Supports up to PC3L-12800 (DDR3L-1600)
• Supports 2 GB, 4 GB, and 8 GB SODIMMs
• Supports up to 4 GB on 32-bit systemsNOTE:32-bit systems cannot address a full 4.0 GB of memory.
• Supports up to 8 GB on 64-bit systemsNOTE:Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

VideoIntegrated graphicsIntegrated graphics are based on the processor.

• AMD E2-7110: Integrated Radeon R2 Series Graphics
• AMD A4-7210: Integrated Radeon R3 Series Graphics
• AMD A6-7310: Integrated Radeon R4 Series Graphics
• AMD A8-7410: Integrated Radeon R5 Series Graphics

AudioIntegrated audio

• Audio Codec: Realtek ALC3252
• Audio jack presence detection

NetworkLAN: 1000BASE-T

• Technology: Realtek RTL8161GSH
• Data transfer speeds: up to 10/100/1000 Mb/s
• Transmission standards: 1000BASE-T Gigabit Ethernet

Expansion Slots

• One M.2 socket 1, 2230 type for WLAN

I/O Ports and clear CMOS and clear passwordBack I/O portsClear CMOS and clear passwordFigure: Bali-U pins and jumper
