HP AiO PCs - Skywalk motherboard specifications

Find the detailed Skywalk motherboard specifications.

Skywalk specifications

Review physical dimensions, processor model, memory information, connectivity types, video and audio specifications, expansion slots, and I/O ports of the Skywalk motherboard.

Motherboard description

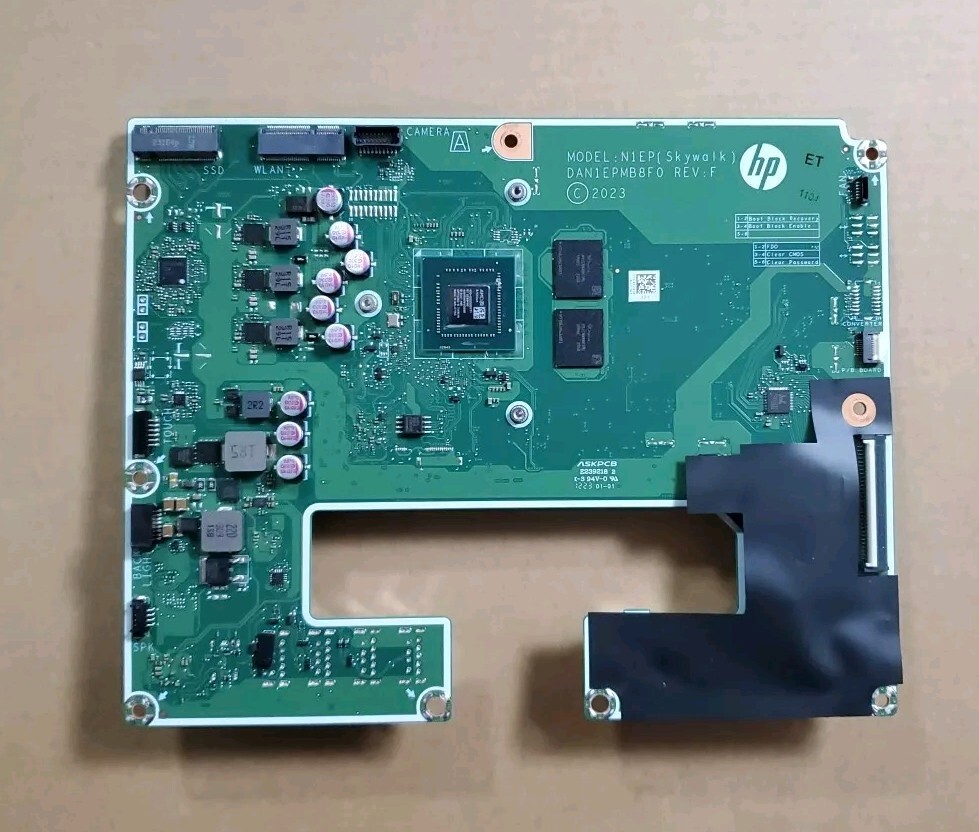

• HP name: Skywalk

• SSID: 8B4E

Form Factor and dimensions

• Customized

• Dimensions:19.8 x 15.6 cm(7.79 x 6.14 in)

Chipset

• N/A

Processor upgrade information

• TDP: Up to 15 W

• Socket type: BGA

• Skywalk motherboard supports the following processor upgrades:

AMD Athlon™Gold 7220U (up to 3.7 GHz maximum boost clock, 4 MB L3 cache, 2 cores, 4 threads)

15 W

AMD Athlon™Silver 7120U (up to 3.5 GHz maximum boost clock, 2 MB L3 cache, 2 cores, 2 threads)

15 W

AMD Ryzen™3 7320U (up to 4.1 GHz maximum boost clock, 4 MB L3 cache, 4 cores, 8 threads)

15 W

AMD Ryzen™5 7520U (up to 4.3 GHz maximum boost clock, 4 MB L3 cache, 4 cores, 8 threads)

15 W

Memory upgrade information

• Dual Channel Memory architecture

• Onboard system memory

• Supports up to PC5-44000 (LPDDR5-5500)

• Supports up to 16 GB

Integrated graphics

• AMD Radeon™Graphics (integrated in processor)

Audio

• Audio Codec: Realtek ALC3247

• Audio jack presence detection

Ethernet LAN: 1000BASE-T

• Technology: Realtek RTL8111GSH

• Data transfer speeds: up to 10/100/1000 Mb/s

• Transmission standards: 1000BASE-T Ethernet

Expansion slots

• (1) M.2 socket 1, key A, type 2230 for WLAN

• (1) M.2 socket 3, key M, type 2280 for SSD (PCIe x4 Gen 4 .0)

Rear I/O ports

• (1) HDMI v1.4 output port

• (1) RJ-45 Ethernet port

• (1) Headphone/microphone combo port

• (1) USB 3.2 Gen 1.0 Type-C® port (5 Gbps signaling rate)

• (2) USB 3.2 Gen 1.0 Type-A port (5 Gbps signaling rate)

• (2) USB 2.0 Type-A ports
