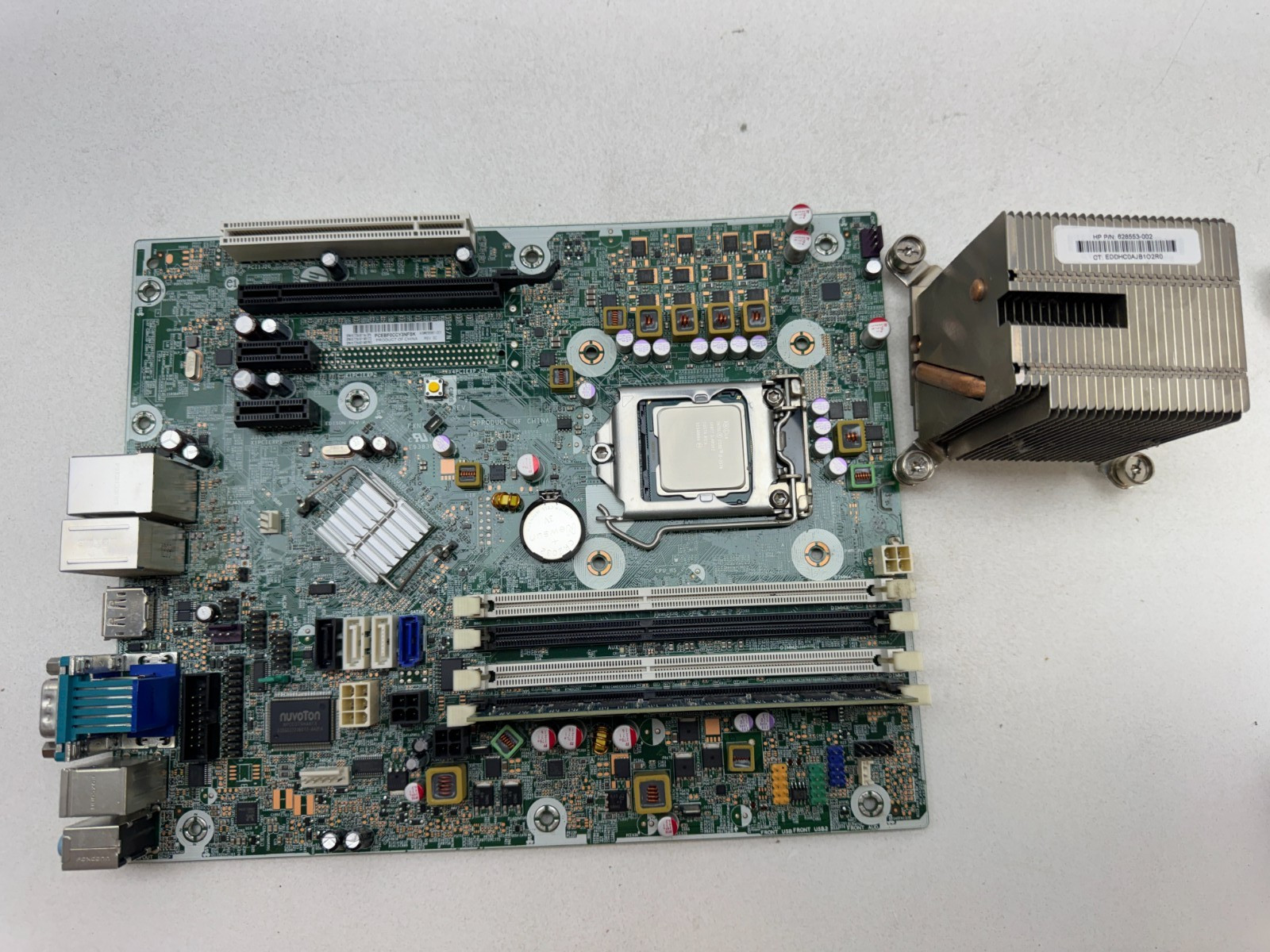

HP Compaq Pro 6300 LGA 1155 Motherboard Combo - SP# 657094-001Includes Intel Core i5-3570 3.40GHz Quad-Core CPU, 4GB DDR3 RAM & HP Copper Heatsink
Genuine HP OEM desktop motherboard assembly pulled from a working HP Compaq Pro 6300 system. Features the Intel Q75 Express chipset with 4 native rear USB 3.0 SuperSpeed ports. Powered by a high-performance 3rd Generation Intel Core i5-3570 quad-core processor running at 3.40GHz (up to 3.80GHz Turbo), paired with a 4GB Ramaxel DDR3-1600 memory module and the original HP copper heatpipe tower cooler.
Technical Specifications:- Motherboard Brand: HP (Hewlett-Packard)- Compatible Model: HP Compaq Pro 6300 (MT / SFF)- HP Spare Part Number: SP# 657094-001 (interchangeable with 657094-501, 657094-601)- HP Assembly Number: AS# 656961-001 Rev. 0E- Board Codename / Revision: EDISON REV A- Socket Type: Socket LGA 1155 (Socket H2)- Chipset: Intel Q75 Express Chipset- Power Supply Headers: HP proprietary 6-pin main + 4-pin CPU power
Processor Details:- Model: Intel Core i5-3570 (Ivy Bridge 22nm)- S-Spec: SR0T7- Cores / Threads: 4 Cores / 4 Threads- Base Frequency: 3.40 GHz (Max Turbo Frequency: 3.80 GHz)- Cache: 6 MB Intel Smart Cache- Integrated Graphics: Intel HD Graphics 2500- TDP: 77W
Memory Details:- Installed Memory: 4GB Ramaxel PC3-12800U DDR3-1600 (RMR5040ED58E9W-1600, HP P/N: 688410-150)- Total Memory Slots: 4 x 240-pin DDR3 DIMM slots (Dual Channel supported)
Cooling Assembly:- Genuine HP 4-screw bolt-through copper heatpipe tower heatsink (HP P/N: 628553-002)
Expansion Slots:- 1 x PCI Express 3.0 x16 Slot- 2 x PCI Express 2.0 x1 Slots- 1 x Legacy 32-bit PCI Slot- 4 x Internal SATA Ports (including 1x SATA 6.0 Gb/s blue port)
Rear I/O Connectivity:- 4 x USB 3.0 Ports (SuperSpeed)- 2 x USB 2.0 Ports- 1 x DisplayPort Video Output- 1 x VGA (D-Sub) Video Output- 1 x DB-9 Serial (RS-232 COM) Port- 1 x RJ-45 Gigabit Ethernet Port- 2 x PS/2 Ports (Keyboard & Mouse)- 2 x 3.5mm Audio Jacks (Line-In / Line-Out)
untested. The physical condition is exactly as shown in the provided photographs
