PLEASE NOTE THAT YOU ARE PURCHASING A PRODUCT FROM ANOTHER COUNTRY AND WILL THEREFORE BE SUBJECT TO CUSTOMS DUTIES
HP Procurve 2520G 8-Port Gigabit PoE Switch J9298A With PSUThe description of this item has been automatically translated. If you have any questions, please feel free to contact us.

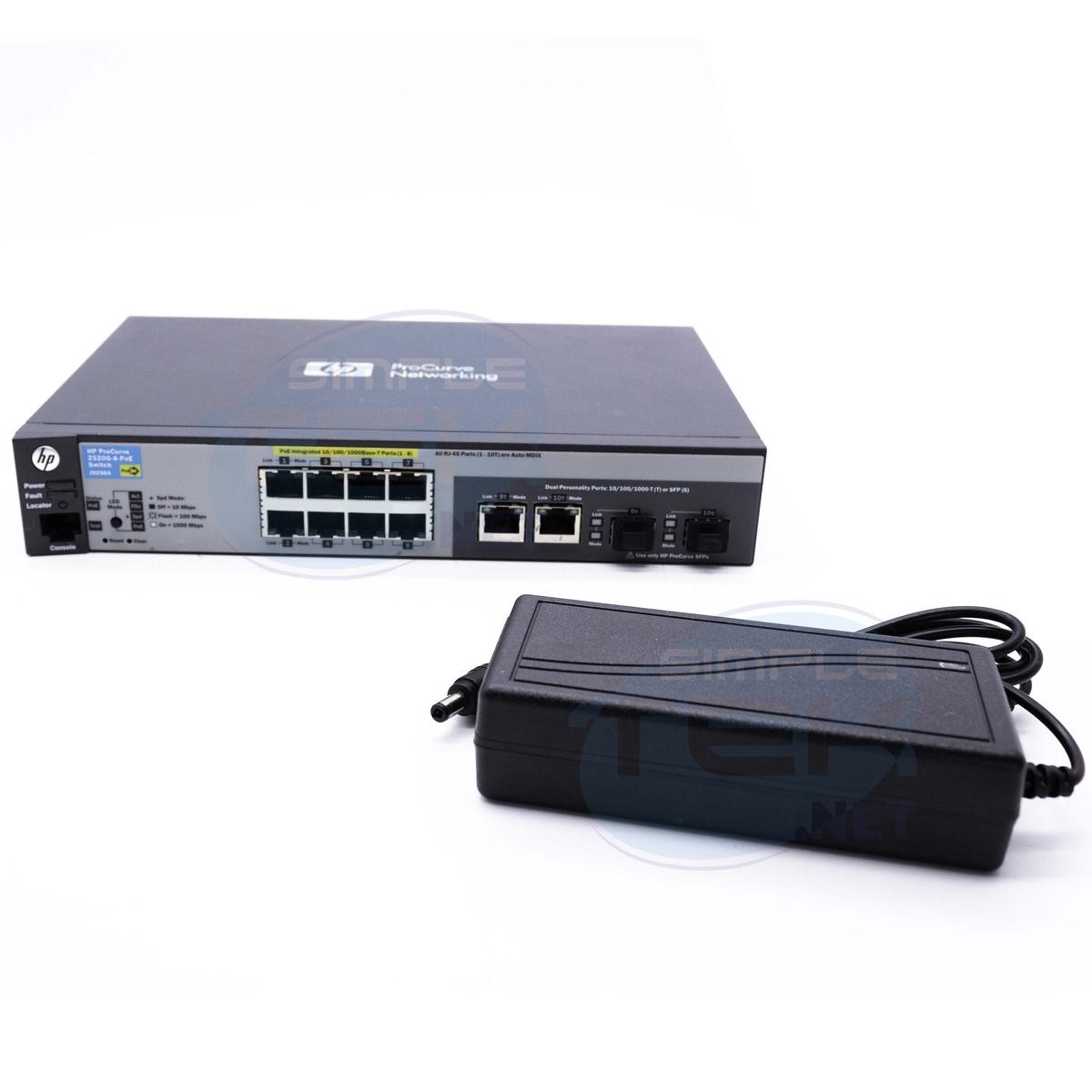

Hp Procurve Poe Switch 2520g 8 Ports J9298a Gigabit + Refurbished Power Supply
Simpletek code 1971
Grade A Refurbished Possible presence of purely aesthetic defects, which do not affect use, such as small pixel defects (ISO-9241-3xx standards), microscratches on the body/screen and/or other defects not visible more than 30cm from the object resulting from wear of the object over time; the hardware is however tested, working and guaranteed (see product condition details)
GENERAL INFORMATION
Warranty: 1 year (Simpletek)
Purchase invoice: must be requested at the same time as the order and will be sent via email. In the absence of billing data, a receipt will be issued which cannot be cancelled.
Description TECHNICAL CHARACTERISTICS The HP 2520 Series is ideal for small to medium-sized businesses looking to deploy voice, video, or wireless solutions with Power over Ethernet (PoE) connectivity.
HP brand
Co2 Savings 5.41
Safety cUL, UL, CE, EN, AS/NZS
Electromagnetic compatibility FCC, VCCI, EN/CISPR, ICES, AS/NZS, IEC/EN
Switch type Managed
L2 switch level
Quality of Service (QoS) Support Yes
Web-based management Yes
System event log Yes
MIB Support MIB II, Bridge MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB
Quantity of RJ-45 ports 8
SFP Combo ports quantity 2
SFP/SFP+ port quantity 2
Console port RS-232
Network standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Support 10G No
Ethernet technology over copper cables 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T
Port mirroring Yes
Full duplex Yes
Broadcast storm control Yes
Opening protocol tree Yes
Auto MDI/MDI-X Yes
Flow Control Support Yes
Link grouping Yes
VLA number 4096
MAC 8000 table dimensions Entrances
Supported data transfer rates 10/100 Mbps
20 Gbit/s switching capacity
Throughput 14.8 mpps
Maximum transfer speed 1 Gbit/s
Jumbo Frames Support Yes
Packet memory buffer 0.5 MB
DHCP Features DHCP server, DHCP client
Access Control List (ACL) Yes
IGMP snooping function Yes
SSH/SSL Support Yes
MAC address filters Yes
Static security door Yes
Supported security algorithms 802.1x RADIUS, SSH, SSL/TLS
DHCP Server Yes
DHCP Client Yes
Multicast support Yes
Management protocols IGMPv2, SNMPv1/v2c/v3
LLDP data link protocol
Supported Network Protocols IPv6, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP, SNTPv4
Integrated processor Yes
PowerPC MPC8313 processor model
Processor frequency 266 MHz
Memory type DDR2-SDRAM
Installed RAM 128 MB
32 MB flash memory
Input current 1.5 A
Input voltage 100 - 240 V
Consumption 86.2 W
Power over Ethernet (PoE) support Yes
Operating temperature range 0 - 45 °C
Temperature range -40 - 70°C
Operating humidity range 15 - 95%
Humidity 15 - 95%
Operating altitude 0 - 3000 m
Operating temperature range 32 - 113°F
Heat dissipation 89 BTU/h
Weight 1.66 kg
Wi-Fi No
Latency 5.3µs/2.7µs
Dimensions (WxDxH) 159.5 x 254 x 44.5 mm
Wired connection technology
Input frequency 50/60 Hz
Gigabit Ethernet networking features
EIA assembly
Dimensions (W x D x H) 254 x 159.5 x 44.5 mm (10 x 6.28 x 1.75")
Weight (imperial) 1.66 kg (3.66 lb)
