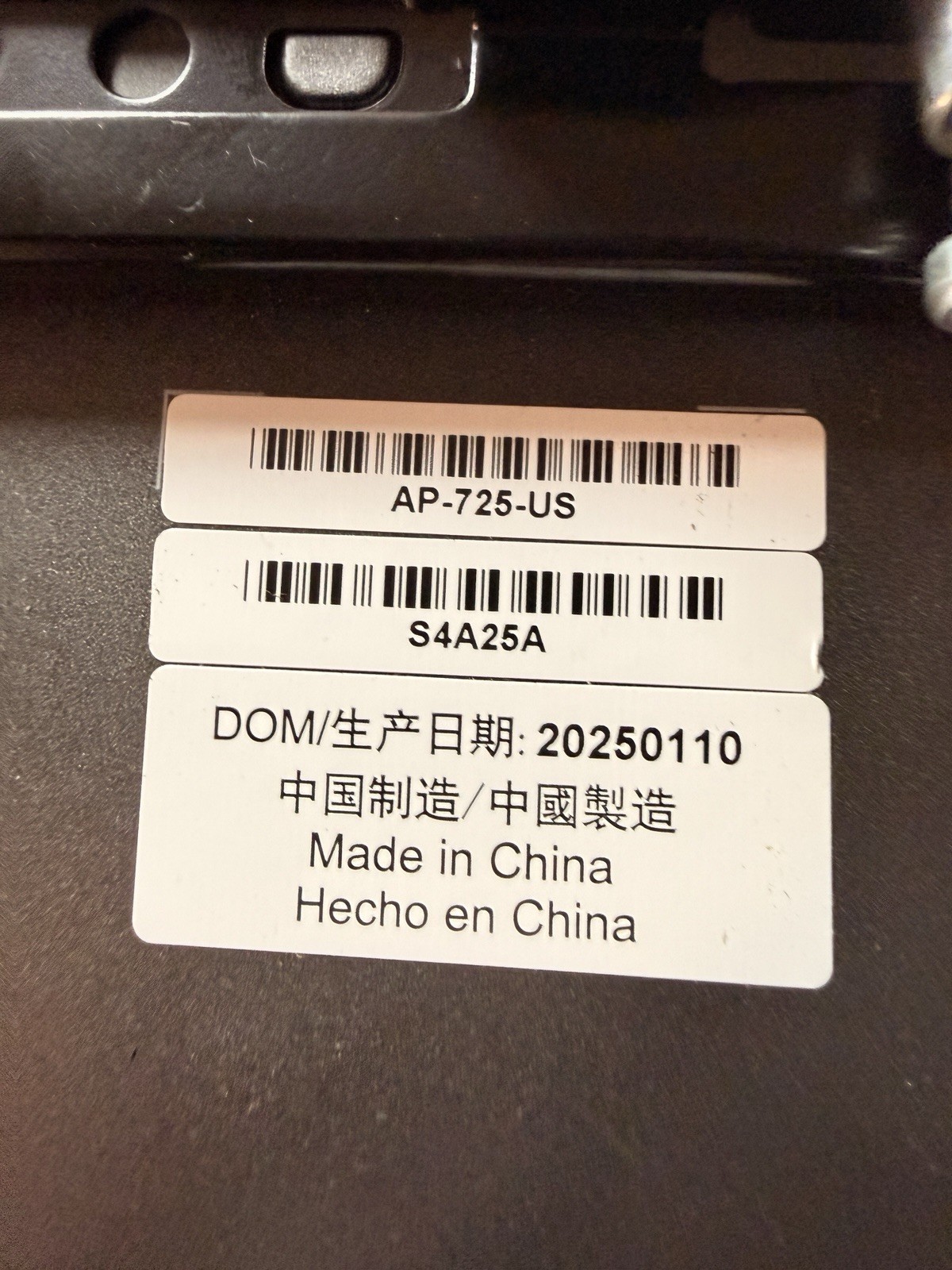

Aruba AP-725-US (part number S4A25A) is a compact indoor campus access point from HPE Aruba Networking, part of the 720 Series. It’s designed for high-performance Wi-Fi in enterprise environments like offices, schools, or high-density areas.
This model supports Wi-Fi 7 (802.11be) and leverages the 6 GHz band for significantly increased capacity, lower latency, and better performance compared to previous generations.
Key Features and Specifications
* Radios: Tri-radio 2x2 MIMO configuration
* 2.4 GHz band
* 5 GHz band
* 6 GHz band
* Maximum Data Rate: Up to approximately 4.7 Gbps aggregate (tri-band combined; specific per-band peaks vary based on configuration and conditions)
* Ethernet Port: 2.5 Gbps (2.5GBase-T) uplink
* Additional Connectivity: USB 2.0 port, Bluetooth 5.4 LE, Zigbee support (flexible IoT radio)
* Antennas: Internal omnidirectional/down-tilt antennas (peak gain around 5.1 dBi in some bands)
* Mounting: Ceiling-mountable (designed for indoor use)
* Other Highlights:
* AI-powered management and optimization
* Enhanced security features (including across wired/wireless networks)
* IoT device support
* High reliability (e.g., reported MTBF around 1,720,000 hours)
* Supports multilink operation (MLO), 4K QAM, and other Wi-Fi 7 advancements for better throughput and efficiency
This US variant (AP-725-US) is region-specific for regulatory compliance (e.g., FCC rules on power and channels).
