Comes with1 X P42737-001 HPE PCA NS204i-p G10 Plus SPI Boot Ctrl
both brackets2 X P41538-001
HPE DRV SSD 480GB NVMe RI MV M.2
HPE Boot Device Options
The HPE NS204i-u is a universal installation hot plug OS boot device that includes two 480 GB M.2 NVMe SSDs. This device no longer takes up a PCIe slot, and auto-creates RAID1 volume. The HPE NS204i-u Gen11 is compatible with Gen11 platforms, and the NS204i-u V2 is compatible with DL365, DL385 Gen11, and Gen12 Platforms.

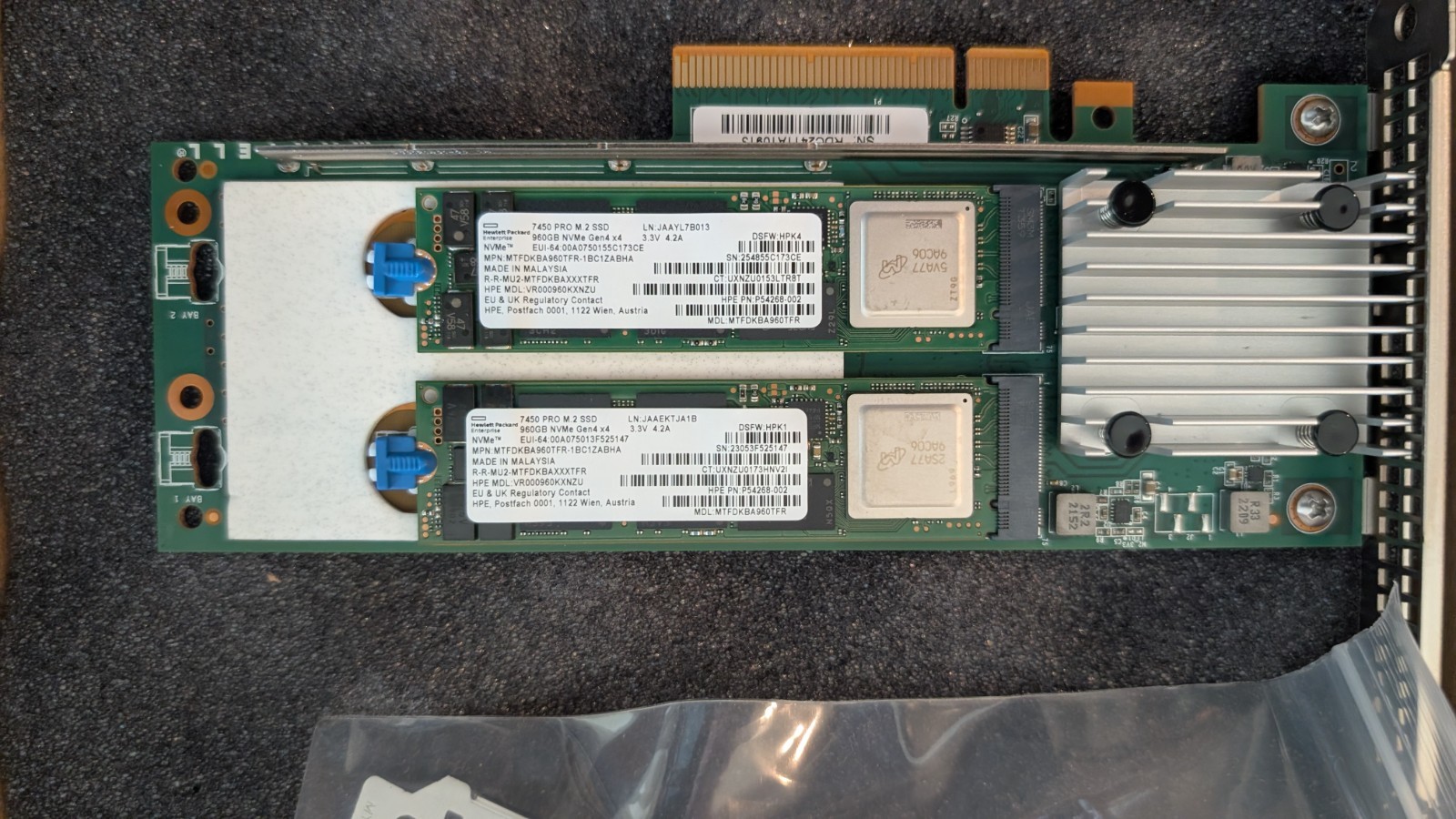

The HPE NS204i-p and the NS204i-d (SY480 Gen10 Plus) boot devices includes two 480 GB M.2 NVMe SSDs. Two 22110 M.2 NVMe SSDs must be added to the NS204i-r riser and the NS204i-t Boot Controller. The NS204i boot device enables customers to mirror their OS through dedicated RAID 1.
HPE NS204i presents itself to your management interface as a single directly connected NVMe drive, not a RAID controller. As the NS204i is a hardware boot device, only RAID 1 mode is supported and it will not operate in any other RAID mode. HPE NS204i is “plug-and-play” with no need to configure or manage the device. Always ensure you are running the latest iLO version and update server BIOS, FW and drivers when they become available.
