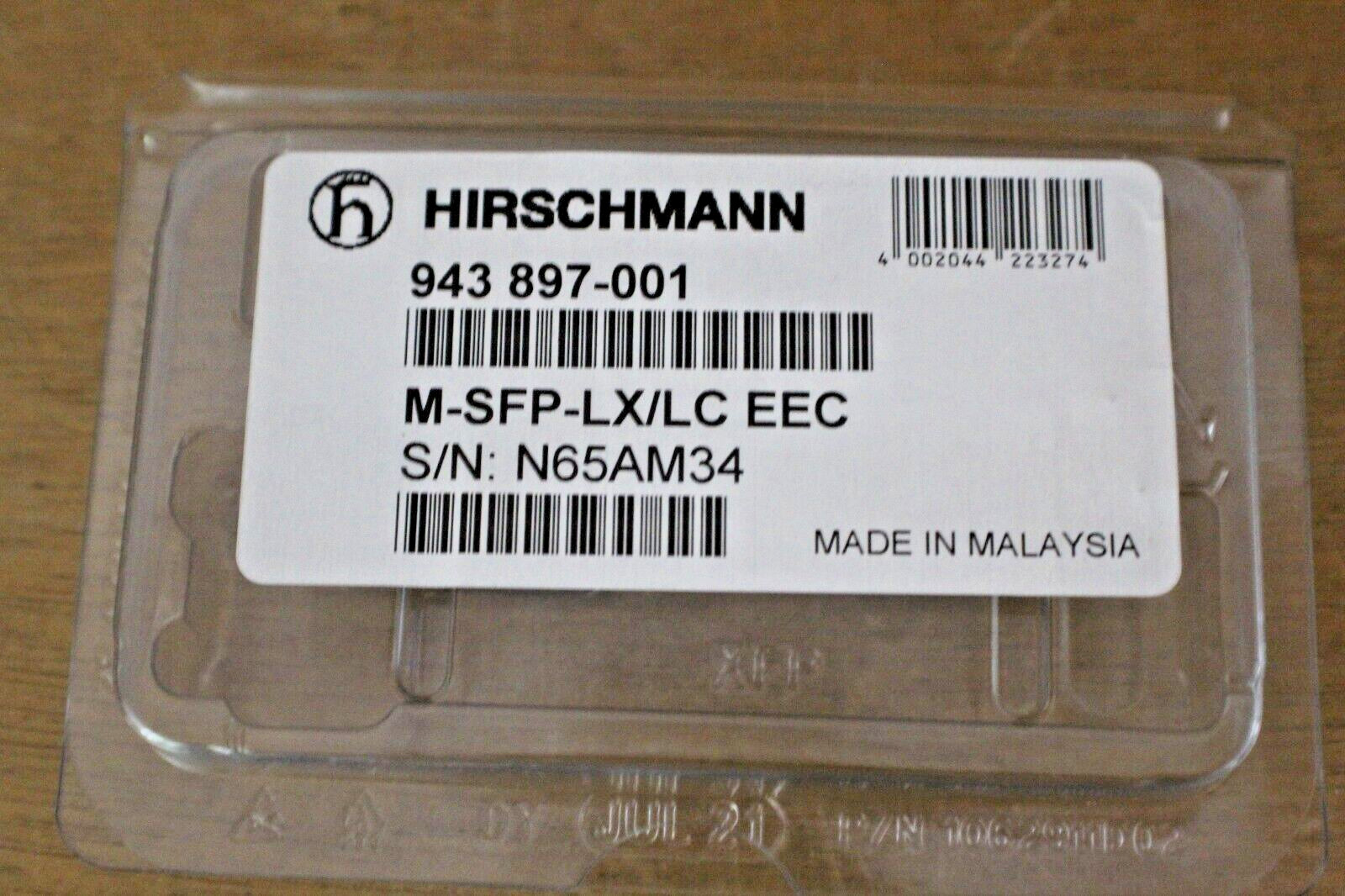

Hirschmann943 897-001 M-SFP-LX/LC EEC SFP Fiberoptic Gigabit EthernetTransceiver, extended temperature range Part Desc.:FTLF1318P3BTL-HA

***NEW – UNOPENED BOX – NEVER USED - FACTORY SEALED ***

DESCRIPTION:

Hirschmann943 897-001 M-SFP-LX/LC EEC is an SFP Fiberoptic Gigabit EthernetTransceiver with extended temperature range. It has one port type1000BASE-LX with LC connector. It is compatible with multimode fiber(MM) 50/125 µm, 62.5/125 µm and single mode fiber (SM) 9/125 µm1.

SPECIFICATIONS:

• Maker: Belden

• Brand: Hirschmann

• Model: M-FAST SFP-SM/LC

• Part Number: 943 897-001

• Country: Malaysia

• Type: Transceiver

• UPC: 4002044223274

• EAN-13: 4002044223274

• UNSPSC Code: 43201553

• Part Desc.:FTLF1318P3BTL-HA

• Port type: 1000BASE-LX with LC connector

• Port quantity: 1

• Network size - length of cable:

  • Multimode fiber (MM) 50/125 µm

    • 0 - 550 m,

    • 0 - 11 dB link budget at 1310 nm

    • A = 1 dB/km, 3 dB reserve, B = 800 MHz x km

    • With f/o adapter in line with IEEE 802.3-2000 clause 38

  • Multimode fiber (MM) 62.5/125 µm

    • 0 - 550 m,

    • 0 - 11 dB link budget at 1310 nm

      • A = 1 dB/km, 3 dB reserve,

      • B = 500 MHz x km

      • With f/o adapter in line with IEEE 802.3-2000 clause 38

  • Single mode fiber (SM) 9/125 µm

    • 0 m - 20 km,

    • 0 - 11 dB link budget at 1310 nm

    • A = 0.4 dB/km, 3 dB reserve,

    • D = 3.5 ps/(nm x km)

• Mounting: SFP slot

• Protection class: IP 20

• Mechanical stability:

  • IEC 60068-2-27 shock: 15 g, 11 ms duration, 18 shocks

  • IEC 60068-2-6 vibration:

    • 1 mm, 2 Hz - 13.2 Hz, 90 min.;

    • 0.7g, 13.2 Hz - 100 Hz, 90 min.;

    • 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.;

    • 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.

• EMC interference immunity:

  • EN 61000-4-2 electrostatic discharge (ESD):

    • 6 kV contact discharge, 8 kV air discharge

  • EN 61000-4-3 electromagnetic field:

    • 10 V/m (80 - 1000 MHz)

  • EN 61000-4-4 fast transients (burst):

    • 2 kV power line, 1 kV data line

  • EN 61000-4-5 surge voltage:

    • power line: 2 kV (line/earth), 1 kV (line/line), 1kV data line

  • EN 61000-4-6 conducted immunity:

    • 3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)

• EMC emitted immunity:

  • FCC CFR47 Part 15:

    • FCC CFR47 Part 15 Class A

  • EN 55022: EN 55022 Class A

• Approvals:

  • Hazardous locations: cUL 60950-1

• Operating temperature: -40 ºC to +85 ºC (-40 ºF to +185 ºF)

• Storage/transport temperature: -40°C to +85°C (-40 ºF to +185 ºF)

• Relative humidity (non-condensing): 10% to 95%

• MTBF: 13 888 889 Heures
