IMX766 50MP High Speed Auto Focus 8160x 6120 USB2.0 Camera Module Plug and Play For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

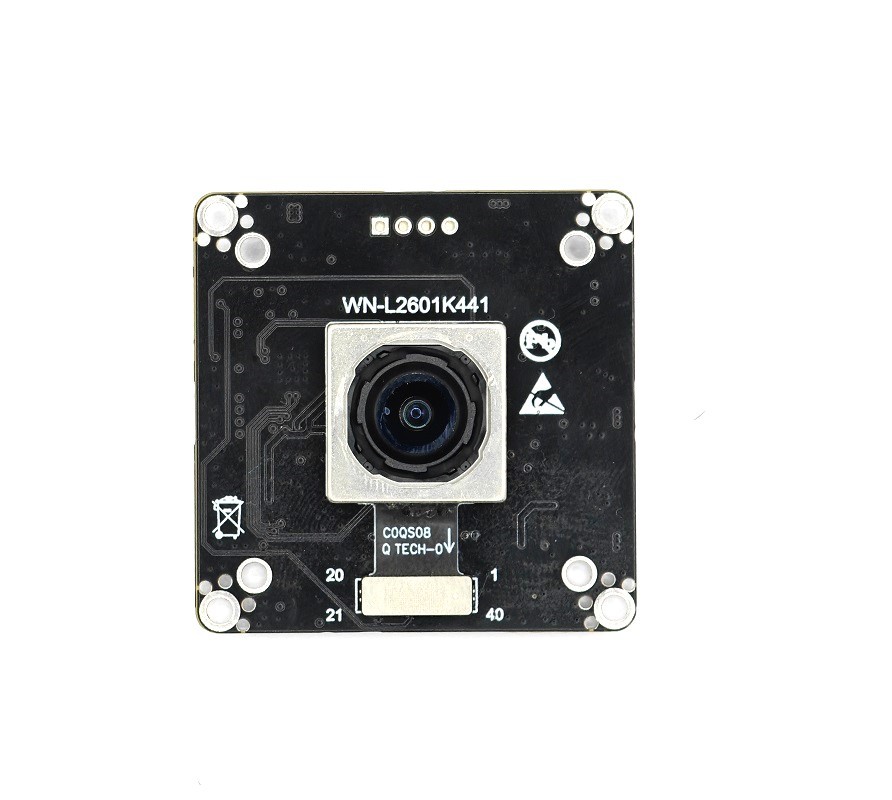

IMX766 50MP High Speed Auto Focus 8160x 6120 USB2.0 Camera Module Plug and Play

Price: CN $48.99

50MP USB2.0 Camera ModuleSpecifications:

·Module Size:38*38mm·Image Sensor:IMX766 CMOS Sensor·Pixel Size: 1.0*1.0μm·Max. Resolutions: 8160H*6120V·Frame Rate: 5fps·OutputFormat:MJPEG,YUV2 ·Field of View: 84.4°·Focus Mode:Autofocus·Shutter Mode: Electronic Rolling Plug and Play for Windows, Android, Linux, Mac OS, etc.·Connection Cable:Default 1.0Meter USB Cable.Controllable Parameters :Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, ExposureWorking Conditions:Working Voltage:DC 5V Working Current:280mAWorking Temperature:-15°C ~ 60°CStorage Temperature:-20°C ~ 85°CHumidity:80 ~85%Supported Resolution and Frame Rate

Format

Resolution

Frame Rate (USB2.0)

MJPEG

8160X6120(50MP)

5FPS

4096X3072

20FPS

4000X3000

20FPS

3840X2160（4K）

30FPS
