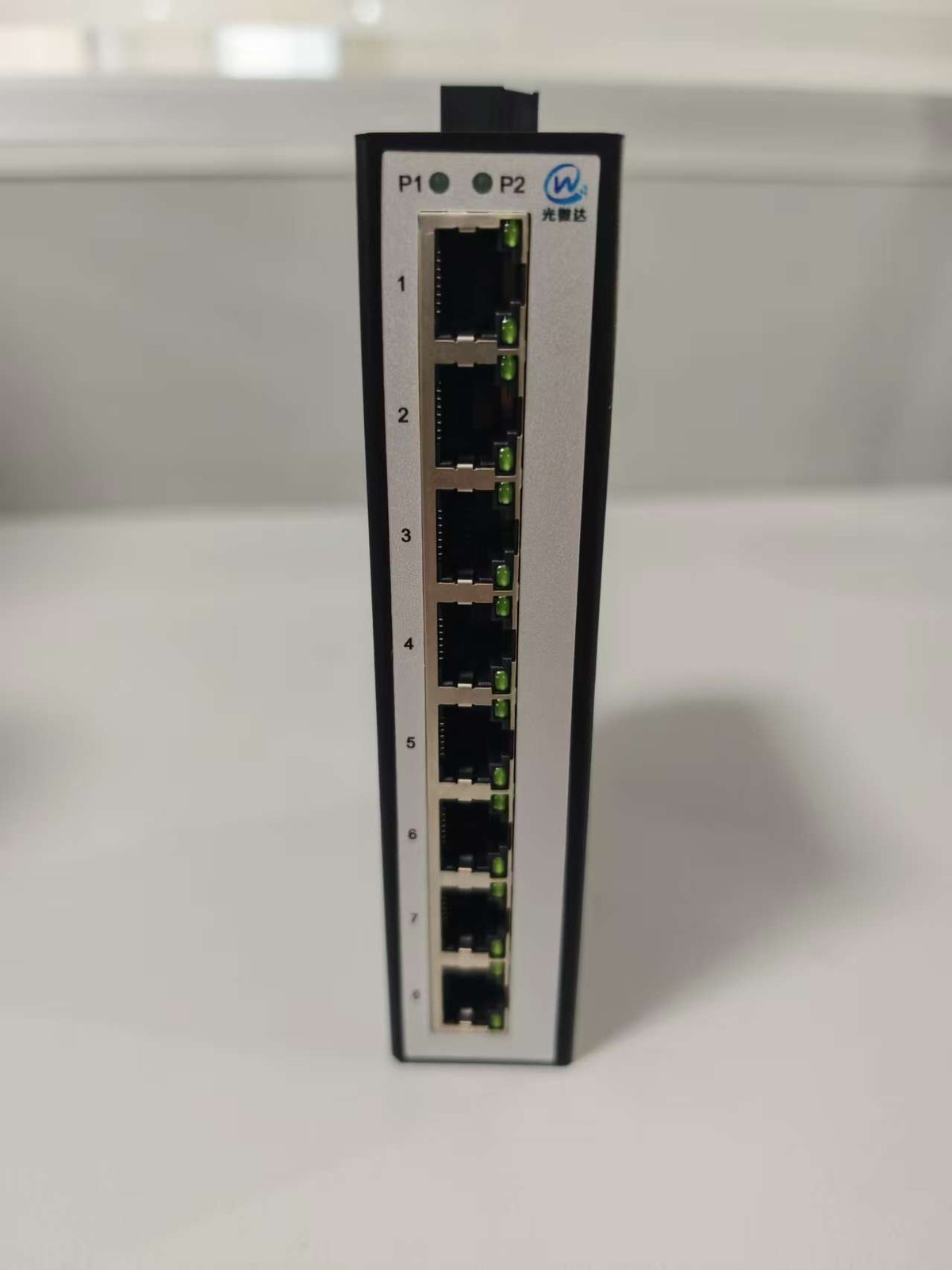

Industrial 8-Port Fast Ethernet DIN-Rail Unmanaged Switch (AC/DC Input)

Price: CN $161.90

Industrial 8-Port 10/100Mbps DIN-Rail Unmanaged Ethernet Switch (LS3208D-8T-AD220)

This industrial DIN-rail unmanaged Ethernet switch features eight 10/100Base-TX RJ45 ports and supports high-voltage AC85–264V / DC100–300V power input. It is designed for stable operation in harsh environments, with an IP40 metal enclosure, fanless natural cooling, and low power consumption (<5W).

Key Features

8 × 10/100Base-TX Ethernet ports, Auto-negotiation, Auto MDI/MDIX
High-voltage power input: AC85–264V / DC100–300V
Plug-and-play unmanaged design
IP40 metal housing
Fanless natural heat dissipation
Overload protection and reverse-polarity protection
Operating temperature: -40°C to +75°C
Power consumption: <5W
DIN-rail installation (optional wall-mount)
5-year warranty

Technical Specifications Ethernet

Ports: 8 × 10/100Base-TX RJ45
Auto-negotiation; Auto MDI/MDIX
Standards: IEEE 802.3i / 802.3u
Switching method: Store-and-forward
MAC address table: 2K
Backplane bandwidth: 2Gbps
Switching delay: <10μs
Jumbo frame: 2048 bytes

Power

Input range: AC85–264V / DC100–300V
Power consumption: <5W
Protection: Overload protection, reverse-connection protection

Mechanical

Housing: Metal, IP40
Cooling: Fanless
Size: 32 × 144 × 95 mm
Weight: ≤1kg
Mounting: DIN-rail (optional wall-mount)

Environmental

Operating temperature: -40°C ~ +75°C
Storage temperature: -40°C ~ +85°C
Humidity: 5%–95% non-condensing

Compliance

EMI: FCC Part 15, EN55022 Class A
EMS:
- EN61000-4-2 ESD (Contact 6 kV, Air 8 kV)
- EN61000-4-3 RS (10 V/m, 80 MHz–1 GHz)
- EN61000-4-4 EFT (Signal 1 kV, Power 2 kV)
- EN61000-4-5 Surge (Power 2 kV line-to-ground, 1 kV line-to-line)
- EN61000-4-6 CS (10 V, 150 kHz–80 MHz)
Shock, vibration, drop: IEC60068 standards
Safety: EN62368-1
