Wi-Fi Features:Brand: IntelIntel AX210 no vProTX/RX Streams: 2x2Bands: 2.4GHz, 5GHz, 6GHz (160Mhz)Wi-Fi CERTIFIED*: 802.11axCompliance: FIPS, FISMABluetooth Version: Bluetooth 5.2 (May Vary by OS installed)Integrated Bluetooth: YesBoard Form Factor: M.2 2230MU-MIMO: YesSupported Operating Systems: Windows 10, 11 64-bit, Google Chrome OS, LinuxAntenna Features:M.2 NGFF Antenna for wireless 6E wifi and bluetooth, WiFi 6, also including WiFi 6E new 6GHz band, Bluetooth, ZigBeeMHF4 connectors, aerial plates with sticker on the backPCB antenna greatly increase reception over built-in antennaCables length: around 37.5cm (14.4 inch)Aerial plate size: Size 40.0 mm x 8.0 mm x 1.0 mm (designed to be installed on plastic surface)
• Adhesive backing on the PCB simplifies mounting within the device• Global Frequency coverage• PCB antenna assembly
- Feed Point Impedance 50 ohms unbalanced
- Polarization Linear
- Size 40.0 mm x 8.0 mm x 1.0 mm
note:1. Antenna designed to be mounted on plastic cover.2. Area in blue above indicates Keep Out Area (Please review pictures included)

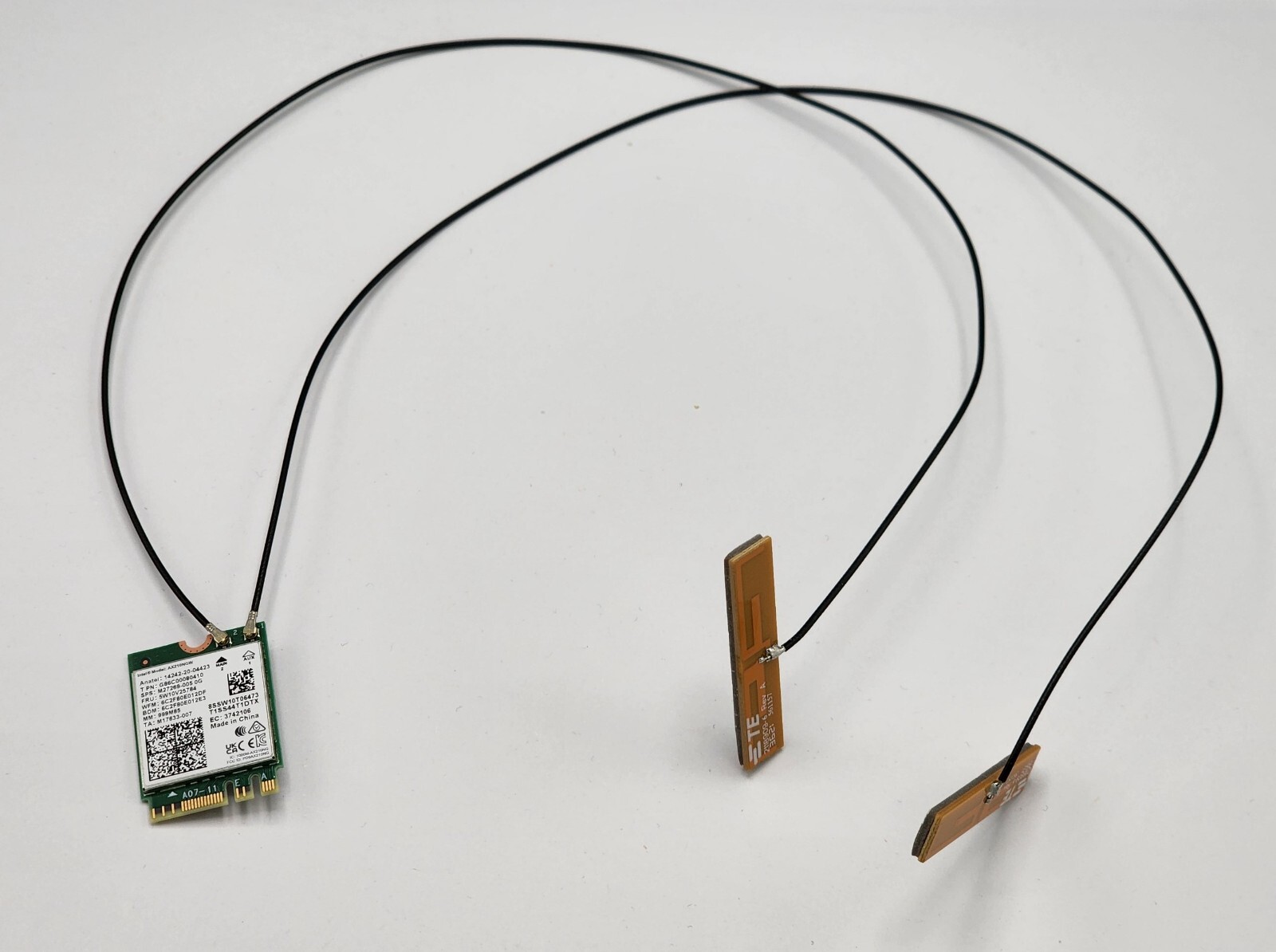

Packing List (bulk pack):1 x AX210 (AX210NGWG.NV) M.2 Wireless Card with Commercial Temparature Ratings1 x Pair of internal antenna (14.42inch, 375mm)
