Intel DH77EB LGA 1155 Motherboard w/ i5-3470 3.2GHz CPU Cooler I/O Shield
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Intel DH77EB LGA 1155 Motherboard w/ i5-3470 3.2GHz CPU Cooler I/O Shield
Price: US $65.00

Intel DH77EB LGA 1155 Motherboard w/ i5-3470 3.2GHz CPU Cooler I/O Shield

Description:

  • Condition: Used -Tested Working


What's Included:

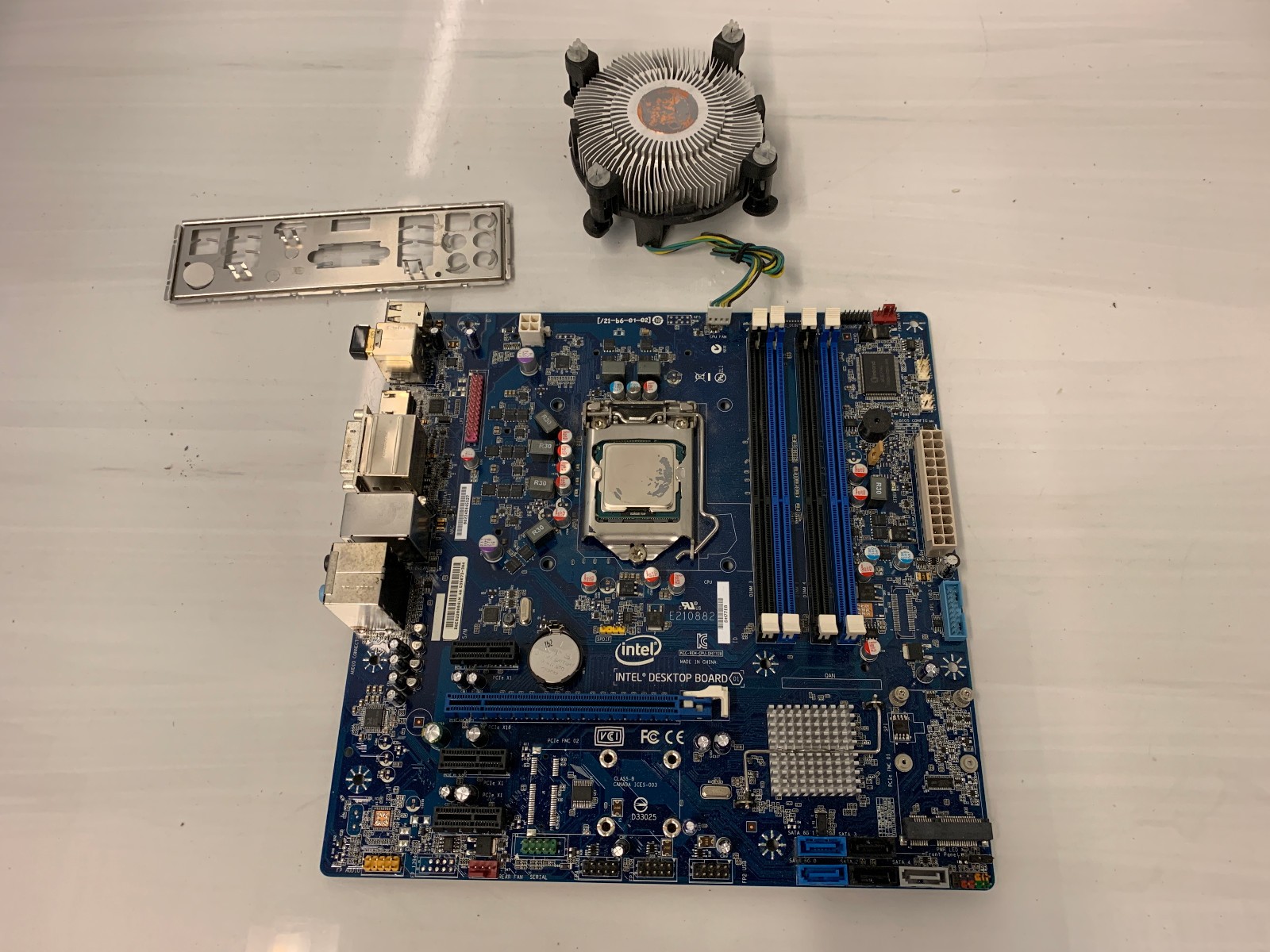

  • Genuine Intel Desktop Board DH77EB Micro-ATX Motherboard (Socket LGA 1155)

  • Genuine Intel Core i5-3470 Quad-Core 3.20GHz (3.60GHz Turbo) Processor (SR0T8, installed in socket)

  • Genuine Intel Aluminum/Copper-Core Heatsink Cooling Fan with 4-Pin PWM Connector

  • Genuine Matching Stainless Steel Rear I/O Shield Plate


    • Specifications

    • Brand: Intel

    • Product Line: Intel Desktop Board (Media Series)

    • Model Number: DH77EB (BOXDH77EB)

    • Regulatory Model: KCC-REM-CPU-DH77EB

    • Form Factor: Micro-ATX (9.6" x 9.6" / 24.38 cm x 24.38 cm)

    • CPU Socket: LGA 1155 (Socket H2)

    • Processor Included: Intel Core i5-3470 (Ivy Bridge, 22nm)

    • Processor S-Spec: SR0T8

    • CPU Core Count / Threads: 4 Cores / 4 Threads

    • CPU Clock Speed: 3.20 GHz Base (Up to 3.60 GHz Intel Turbo Boost)

    • CPU Cache: 6 MB Intel Smart Cache

    • Chipset: Intel H77 Express Chipset

    • Cooler Included: Genuine Intel Aluminum Heatsink with 4-Pin PWM Fan

    • Memory Support: 4x 240-Pin DDR3 DIMM Slots (Dual-Channel, Non-ECC, 1600 / 1333 / 1066 MHz, Max 32GB)

    • Integrated Graphics Support: Intel HD Graphics 2500 (via processor)

    • Storage Interfaces:

      • 2x SATA III 6.0 Gb/s Ports (Blue)

      • 2x SATA II 3.0 Gb/s Ports (Black)

      • 1x Full/Half Mini-PCIe / mSATA Slot

      • 1x eSATA 3.0 Gb/s Port (Rear Panel)

    • Expansion Slots:

      • 1x PCI Express 3.0 x16 Slot (Blue)

      • 3x PCI Express 2.0 x1 Slots (Black)

      • 1x Full-Size / Half-Size Mini-PCIe / mSATA Shared Slot

    • Rear Panel I/O:

      • 1x HDMI Port

      • 1x DisplayPort

      • 1x DVI-I Port

      • 2x USB 3.0 SuperSpeed Ports (Blue)

      • 4x USB 2.0 Ports (Black)

      • 1x eSATA Port (Red)

      • 1x RJ-45 Gigabit Ethernet LAN Port (Intel 82579V)

      • 1x Optical SPDIF Digital Audio Out

      • 5x 3.5mm Analog Audio Jacks (10-Channel Intel HD Audio / Realtek ALC892)

    • Power Connectors: 1x 24-Pin ATX Main Power + 1x 4-Pin ATX 12V CPU Power
