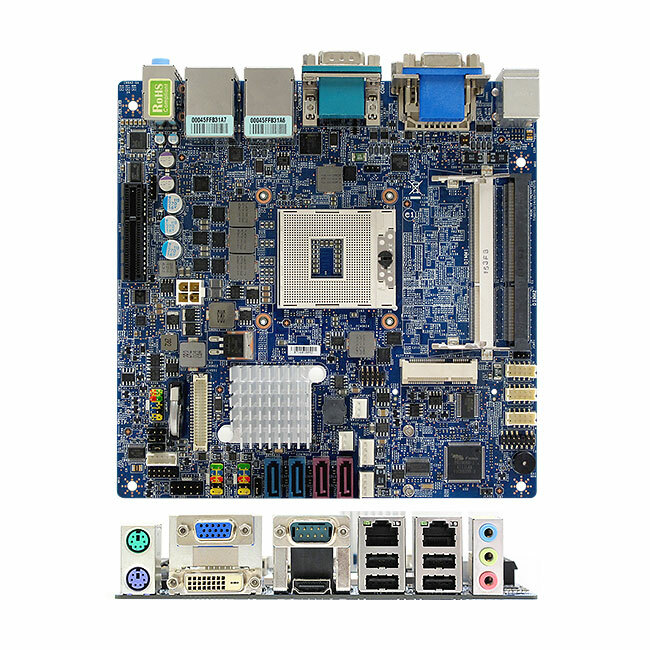

Intel QM67 Mini-ITX Motherboard with DC-in HDMI Dual LAN Socket G2
-Ideally suited for opensource storage/firewall ProjectsFeatures :
- Socket G supports 2nd generation Intel® Core™ i7/i5/i3 processors
- Intel® QM67 PCH
- Supports up to 16 GB dual channel 1066/1333 MHz DDR3 memory
- Dual Display: HDMI, DVI-D, VGA, 18/24-bit LVDS
- 2 x SATA III and 2 x SATA II, RAID
- 8 x USB
- 4 x COM
- 1 x PCIe x4, 1 x Mini PCIe
- 1 x CFast
- Intel® Active Management Technology 7.0
- Intel® Trusted Execution Technology
- Wide Range DC Power (12 to 24V Input)
Specifications :
CPUSocket G μPGA 989 supports 2nd generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® processors up to 45W MaxSystem ChipsetIntel® QM67 ChipsetSystem MemoryTwo 204-pin DIMM slots support up to 16 GB dual channel 1066/1333 MHz DDR3 memory moduleAudio Realtek® ALC887 HD AudioEthernetLAN 1: Intel® 82579LM PHYGigabit Ethernet Controller
LAN 2: Intel® 82574L PCIeGigabit Ethernet Controller
Expansion1 x PCI Express x4
1 x Mini PCI Express
1 x CFast Socket (on the underside)Watchdog TimerReset: 1 sec. ~ 255min. and 1sec. or 1min./stepH/W Status MonitorMonitoring System Temperature, Voltage, with Auto Throttling ControlTPMsupported by Infineon SLB9635TT1.2 DisplayGraphics EngineIntel® Integrated HD GraphicDisplay InterfacesVGA, HDMI, DVI-D, 18/24-bit dual channel LVDSDisplay CapabilitySupports multi-monitorsExternal I/OKB/MS1 PS/2 Keyboard, 1 PS/2 MouseAudioLine-in, Line-out, Mic-in, Front Audio HeaderUSB4 x USBCOM (Serial Port)1 x RS-232/422/485LAN2 x RJ45VGA1 x DB-15 VGADVI1 x DVI-DHDMI1 x HDMIInternal I/OLVDS1 x LVDS and 1 x InverterUSB2 x USB Headers (4 Ports)COM (Serial Port)3 x RS-232 HeadersSATA2 x SATA II and 2 x SATA III, RAIDDC-in4-pin DC Power ConnectorMIO8-bit GPIO, 1 x SPDIF header, 1 x Front Audio header, 1 x Amplifier header, 1 x Front Panel, 1 x Socket Type CMOS battery holder
Mechanical and EnvironmentPower Type12V, 15V-24V Wide Range DC-inOperating Temperature0°C ~ 45°C – Without case fan
45°C ~ 60°C – Requires case fanStorage Temperature-20 ～ 80°C （-4 ～ 176°F）Operating Humidity5 ～ 90％ Relative Humidity, Non-condensingStorage Humidity0 ～ 90％ Relative Humidity, Non-condensingForm FactorMini ITXDimensions (L) x (W)6.7” (L) x 6.7” (W)Package Contents :1.) BCM Mini-ITX MotherboardPart No : P/N : 70820-0012.) I/O EMI Shield3.) SATA Drive Power Cable4.) DC Power Input Cable
Terms :Like New Project Surplus with Zero Usage
