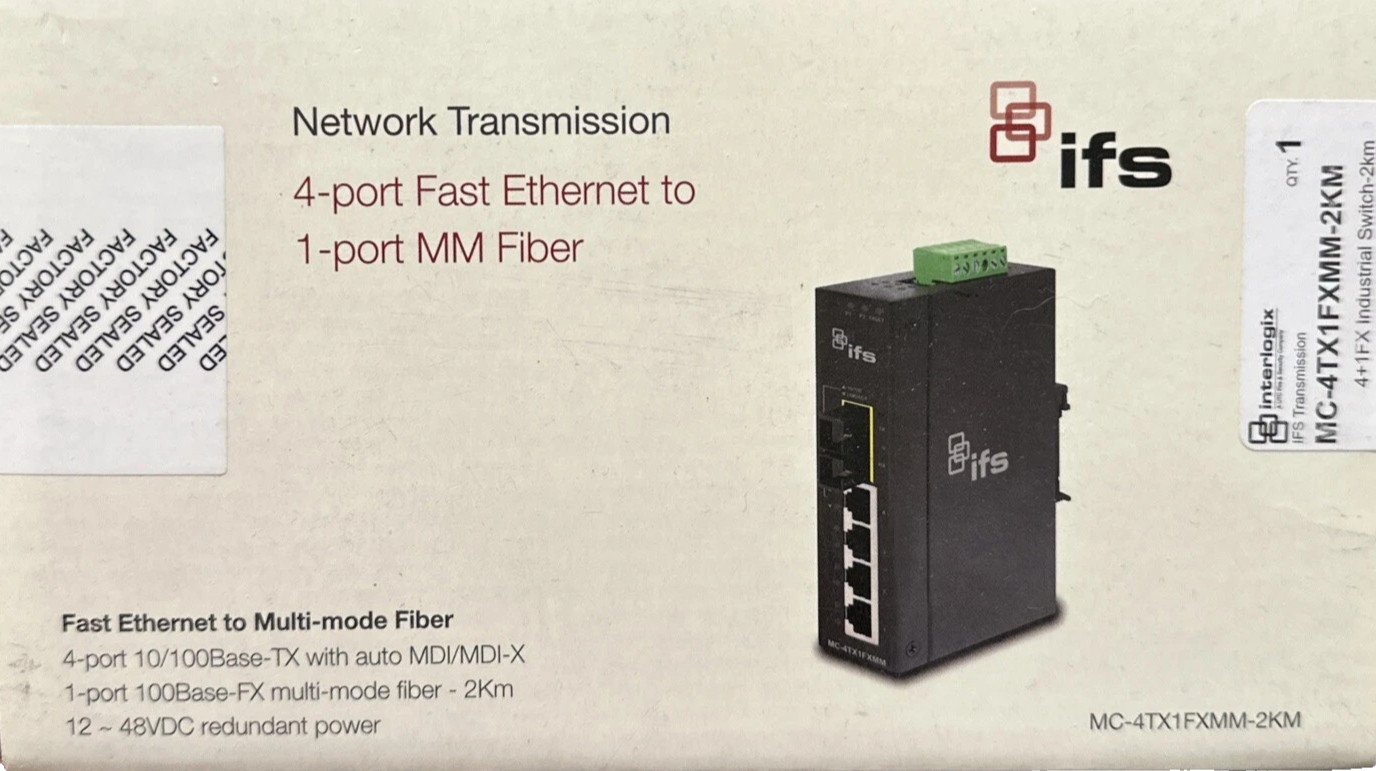

Interlogix MC-4TX1FXMM-2KM 4-Port FE to 1-Port MM Fiber Port Industrial Switch
Price: US $60.00
NEW OPEN BOX Interlogix MC-4TX1FXMM-2KM 4-Port FE to 1-Port MM Fiber Port Industrial Switch
These converters are engineered with a high-performance switch architecture capable of providing a non-blocking switch fabric and wire-speed throughput as high as 1Gbps or 1.2Gbps. With its 2K MAC address table, these media converters offer wire-speed packet transfer performance without the risk of packet loss. The Flow Control function allows these modules to deliver fast and reliable data transfer.
4-Port 10/100Base-TX
Auto MDI/MDI-X
1-Port 100Base-FX MM or SM Fiber
Complies with the IEEE 802.3, IEEE 802.3u, Fast Ethernet standard
Store-and-Forward switching architecture with wire-speed filtering and forwarding rates
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x PAUSE frame-flow control (full-duplex)
Integrated address-lookup engine supports 2K absolute MAC addresses
CSMA/CD Protocol
Automatic source-address learning and aging
Support to handle up to 1522 Bytes packet size
Slim IP-30 metal enclosure for protection
Provides either DIN-rail or wall-mounting
12 ~ 48VDC, redundant power with reverse-polarity protection
Removable terminal block for master and slave power
Alarm relay output for power-failure alert
Complies with IEC60068-2-xx standards for free-fall, shock and vibration
Wide operating temperature range of up to -40 degree C ~ +75 degree C
