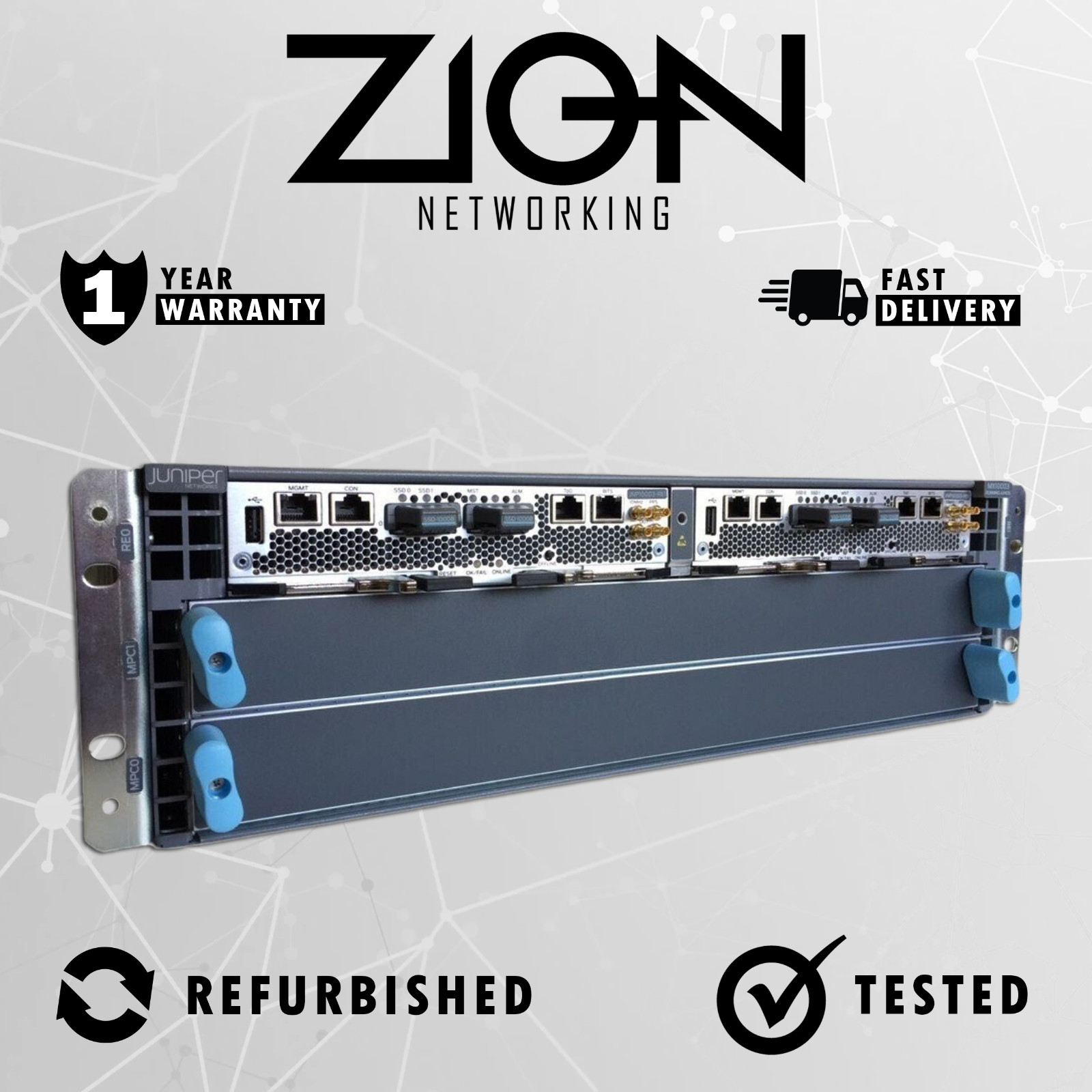

The Juniper MX10003-PREMIUM is a high-capacity, modular router designed for large-scale service providers and enterprise networks, offering advanced routing, switching, and security capabilities. These specifications make the MX10003-PREMIUM an ideal solution for environments requiring high throughput, advanced routing features, and robust redundancy​ Below are the key specifications for the MX10003-PREMIUM model:

Specifications

• Form Factor:3 Rack Units (3RU)
• Dimensions:
• Height:5.25 inches (13.3 cm)
• Width:17.4 inches (44.2 cm)
• Depth:24 inches (61 cm)
• Weight:Approximately 56 lbs (25.4 kg) when fully loaded
• Cooling:Front-to-back airflow with redundant, hot-swappable fans
• Power Supply:Redundant, hot-swappable AC or DC power supplies
• Performance and Capacity
• Aggregate Throughput:Up to 4.8 Tbps (terabits per second)
• Port Density:
• 144 x 10GbE ports
• 72 x 40GbE ports
• 36 x 100GbE ports
• Packet Forwarding Capacity:960 Mpps (million packets per second)
• Switch Fabric Capacity:7.2 Tbps
• High Availability and Redundancy
• Control Plane Redundancy:Dual Routing Engines (RE) for high availability
• Data Plane Redundancy:Redundant, hot-swappable line cards and power supplies
• Routing Engine:Dual RE-S-2000 with a 2000 MHz processor
• Packet Forwarding Engine (PFE):Based on the Trio chipset, offering advanced IP services and high-scale subscriber management
• Software and Protocol Support
• Operating System:Junos OS
• Routing Protocols:Includes support for BGP, OSPF, IS-IS, MPLS, and others
• Security Features:Integrated firewall, IPSec VPN, and DoS protection
• Quality of Service (QoS):Supports hierarchical QoS, per-flow queuing, policing, and shaping
• High Availability Features:Graceful Restart, Nonstop Active Routing (NSR), Nonstop Bridging (NSB)
• Interface and Modularity
• Modular Interface Cards (MICs):Supports various MICs for flexibility in interface type and port density
• Management Interfaces:
• 2 x 10/100/1000 Ethernet
• 1 x Serial console port
• 1 x USB port
• 1 x Management Ethernet interface
• Environmental Specifications
• Operating Temperature:32°F to 104°F (0°C to 40°C)
• Storage Temperature:-40°F to 158°F (-40°C to 70°C)
• Humidity:5% to 90% non-condensing
• Altitude:Operating up to 10,000 feet (3,048 meters)
• Power and Cooling
• Power Consumption:Typical power consumption is around 1,500 Watts
• Cooling Capacity:Designed to handle high-density deployments with efficient cooling mechanisms
