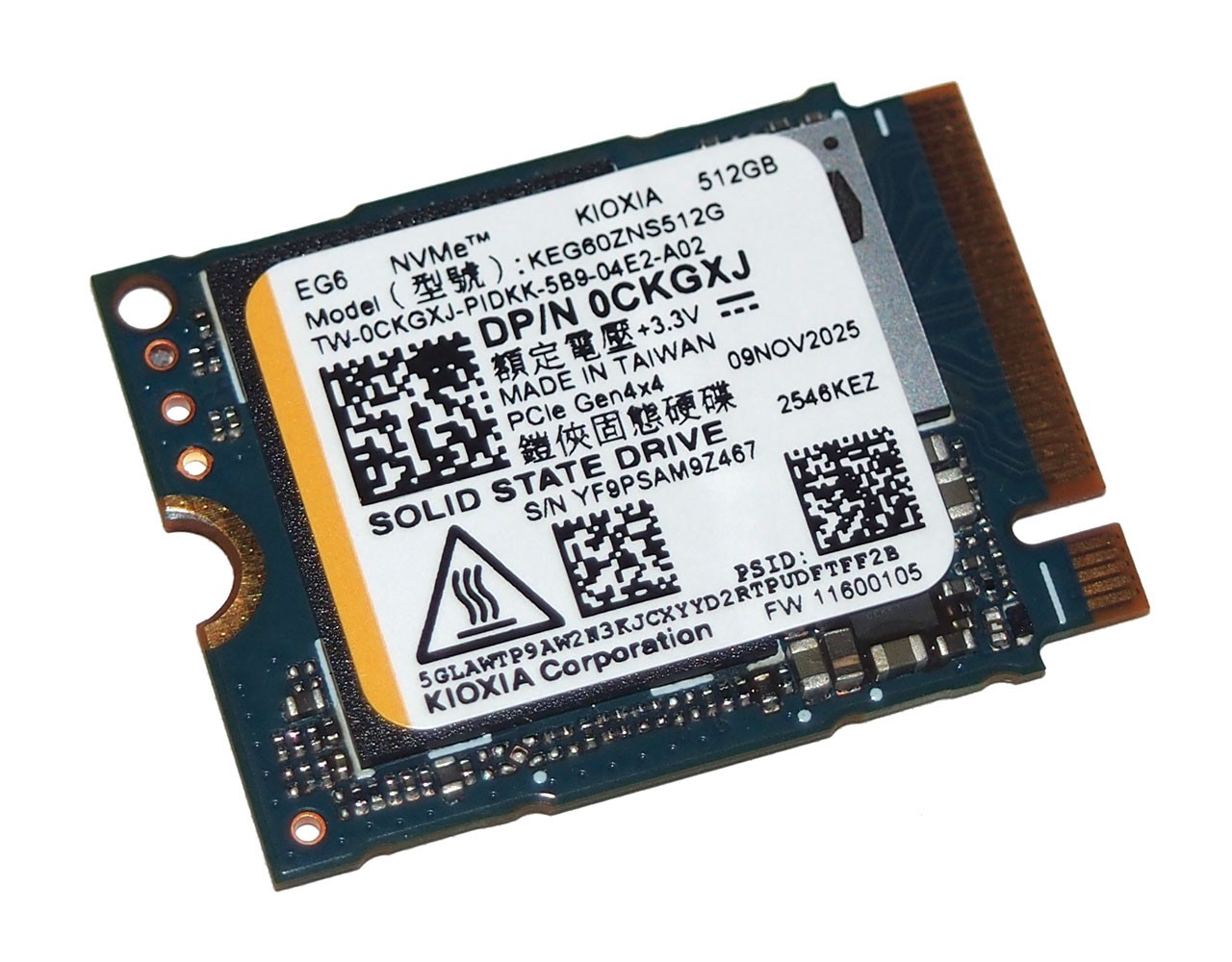

Brand New Kioxia EG6 512GB Solid State Drive

Ultra-High-Performance PCIe Gen4x4/NVMe 1.4

Model KEG60ZNS512G (DP/N CKGXJ)

Incorporates Toshiba 162-Layer TLC Flash

Includes Large Dynamic p-SLC Cache

Super-fast 4.8GB/s Read Performance!

Fully Compatible with all Modern Laptops, Desktop/Tower PCs, and All-In-One/AIO PCs

Includes Comprehensive 30-Day Warranty Plus Any Remaining Factory Warranty!

Item Description

Up for sale is a brand new ultra-high performance PCIe Gen4 Solid State Drive/SSD made for industry-standard M.2 2230 NVMe-based PCs, laptops/notebooks, workstations, servers, and gaming consoles. With outstanding 4800 MB/sec max sequential read performance and 4000 MB/sec max sequential write performance, this Kioxia (formerly known as Toshiba) EG6 PCIe Gen 4.0x4 NVMe 1.4 SSD will super-charge your system's performance, chopping boot times (and large program load times) by over 50% versus most of the chintzy, lower-end SSDs that typically ship with new laptops and PCs! Incorporating Silicon Motion's highly regarded SM2268XT Multi-Core ARM-based Dual-Channel 3200MT/s NVMe SSD controller, the Kioxia EG6 delivers performance that rivals that of nearly any other NVMe 1.4 SSD and positively crushes all NVMe 1.3 SSDs! And Kioxia didn't stop there - the EG6 is built on Toshiba/Kioxia's BiCS6 162-layer high-endurance/performance 3D TLC NAND flash that is both faster (2400 MT/S) and FAR more reliable than the cost-reduced (read: crappy) generic and even most name-brand QLC flash incorporated in lesser/cheaper SSDs. Further boosting both the drive's performance and endurance, the EG6 includes a massive dynamic pseudo-SLC write cache, so bursts of incoming writes are processed at speeds within shouting distance of the maximum limit of Gen4 PCIe SSDs. This all results in an excellent endurance rating of 300 TBW for the 512GB capacity drive - critical if you rely on and value the correctness and integrity of the OS/apps/files/data contents of your Solid State Drive! By the way, for those not familiar with this dynamic SLC feature, it is a technology that provides a very large buffer of "hardened" SLC-like flash cells to sustain ultra-high write speeds far longer than SSDs without this technology, effectively "absorbing" incoming write bursts at 4.8GB/sec to later transfer/fold to the primary cells at the native TLC flash's pace. These "hardened" flash cells while in SLC mode provide many times the effective endurance of TLC and QLC mode cells (50,000 to 100,000 P/E cycles vs 3000 for TLC and 1500 for QLC), helping to enable this SSD's manufacturer-guaranteed 1.5 Million Hours MTBF reliability rating!

This Kioxia EG6 SSD supports both S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) and TRIM (Advanced Technology Attachment/ATA command that enables an OS to inform a NAND SSD which data blocks it can erase because they are no longer in use). For data integrity/security, the EG6 supports both TCG Opal and TCG Pyrite encryption algorithms, and also provides a generous 7.4% "over-provisioning" of the 512GB advertised capacity! For power management, the EG6 supports Active State Power Management (ASPM), Autonomous Power State Transition (APST), and PCIe L1.2 Power State for low power draw at idle on mobile platforms.

NOTE: This Solid State Drive was just removed from a one of a large lot of brand new, never used Dell EC24250 AIO PCs that all suffered irreparable LCD impact damage during shipping and are being parted out since replacement LCDs (parts plus installation labor) cost more than the PCs are actually worth! The SSD currently includes Dell's base Windows 11 image for AIO PCs; I can leave this image fully intact, or delete all associated partitions and ship the drive completely blank - your choice!

Here's the specifications sheet highlights:

Kioxia EG6 512GB PCIe Gen 4.0x4 NVMe 1.4 SPECIFICATIONS Configuration Interface PCIe Gen 4.0x4: 16Gb/s per Lane = 64Gb/s Peak Protocol NVMe 1.4 Controller Multi-Core ARM 32-Bit Cortex-R5 (Supports 4 Channels @ 3200MT/s) Formatted Capacity 512GB Sector size (bytes) 512 Performance Sequential Read Speed Up to 4.800GB/s or 4800MB/s (32 Queues, 1 Thread) Sequential Write Speed Up to 4.000GB/s or 4000MB/s (32 Queues, 1 Thread) Random Read Speed (4KB) Up to 650K IOPS (32 Queues, 8 Threads) Random Write Speed (4KB) Up to 850K IOPS (32 Queues, 8 Threads) Memory Technology Toshiba/Kioxia BiCS6 162-Layer 3D NAND TLC Over-Provisioning 37.7GB DRAM Cache Host Memory Buffer SLC Write Cache Dynamic Write Speed w/SLC Cache Exhausted Up to 640MB/s (160MB/s per Die x 4 Dies) Endurance (Lifetime Writes) 300 TBW (3000 P/E Cycles; Up to 100,000 in SLC Mode) Drive Writes per Day (DWPD) 0.3 Trim Support Yes S.M.A.R.T. Support Yes Garbage Collection Yes Data Encryption Yes (AES-256 Bit; TCG Opal- and Pyrite-Compliant) Power (RMS) Power Consumption (Active, Max) 4.7 W Power Consumption (Active Idle) 30 mW Power Consumption (Deep Sleep) 3 mW Voltage 5V +/- 5% Environmental & Reliability Operating Temperature (C) 0 Degrees to 70 Degrees Non-Operating Temperature (C) -40 Degrees to 85 Degrees Reliability (MTBF) 1.5 Million Hours Manufacturer Warranty 5 Years (Date of Manufacture) Physical Dimensions Form Factor M.2 2230: 22mm W x 30mm L x 2.3mm H Sides Populated 1 (Single-Sided) Weight ~3gm Item Compatibility

Measuring a standard 22mm wide x 30mm long, this NVMe 1.4 SSD is fully compatible with all current and recent PCs (desktop and tower), workstations, servers, laptops/notebooks and specific gaming consoles utilizing the industry-standard PCIe 4.0x4 (or later) electrical/NVMe 1.4 (or later) protocol interface and providing sufficient physical clearance. If purchasing for a laptop/notebook computer or traditional PC, please verify that either a mounting point is present supporting 30mm SSDs (often these are single brackets that can be repositioned for 30mm, 42mm, and 80mm SSD lengths) or that a 30mm-to-80mm adapter is available in case only a single 80mm mounting point is provided in your application (these are typically much older systems since nearly all current and fairly recent ones support this smaller form factor). Obviously, this NVMe SSD is also not compatible with much older computers that do not support the NVMe electrical/protocol interface (those systems typically only supported the SATA-3 electrical/protocol interface even in the M.2-like NGFF physical form factor). Note that the device is single-sided (i.e., only one side is populated). This means it both fits within the tight vertical clearances of modern super-thin laptops, and can easily accommodate nearly any third-party heat sink you might choose to use with it in a PC or specific gaming consoles deployment!

Warranty and Return Info

The 30-day warranty included with this Solid State Driveonly covers defects in the item itself not already disclosed (absolutely none inthis case, since it's brand new), and is limited to...

• Replacement of the part with one of similar type/quality if available,

• Repair of the item by seller if possible, or

• Refund of the actual item purchase price if a replacement is not available and repair is not possible.

Choice of remedy is at seller's discretion, and buyer may be responsible for shipping fees. In addition, any warranty claim absolutely MUST be handled directly through the seller -replacement or repairs performed by the buyer or by a third party will not be reimbursed by the seller unless advanced, written approval was granted!

Additional warranty limitations - These may seem obvious, but here they are anyway...

• This warranty does not cover damage caused by the installation of this item by someone unqualified to perform the work,

• This warranty does not cover damage caused by screw-ups like bent pins/connectors caused by mishandling the device,

• This warranty does not cover damage caused by modifications to the device,

• This warranty does not cover damage caused by out-of-spec use (e.g., over-clocking, over-volting, baking it in the summer sun, taking your laptop with you into the shower, etc.).

• This warranty does not cover any undue "aging" of the device which could be brought on, for example, by slotting it into a heavily used data server and accumulating 100s of TB of reads and writes in very short order. So do not hammer this SSD over a few weeks and attempt to return it after having brought the Health rating down by slamming it with a petabyte or so of writes!!! That would be VERY uncool, and the return would be refused!

I generally accept "buyer's remorse" returns of most items if you change your mind about a purchase. The returned item must, of course, be in the exact same condition as when originally shipped (so the S.M.A.R.T. data for this SSD should still indicate essentially the same various "Health" indicators as shown in the included CrystalDiskInfo photo for the drive!), and all such returns must be requested within 14 days of receipt of the item.Additionally, returns may be subject to a "restocking" fee of up to 20% of the total sale price plus shipping. This fee covers the time andequipment necessary to fully retest and recertify the item, any potential itemdepreciation, various fees incurred to relist the item on , and any payment processing feesthat are not refunded to the seller even if your payment isrefunded. Two-way shipping with full insurance coverage where appropriate is the buyer's responsibility. Pleasecontact me within 14 days of item receipt to requesta "buyer's remorse" return.

In the highly unlikely event that you have been shipped the wrong item, your entire purchase price plus shipping in both directions will be refunded. Pleasecontact me immediately for instructions.

I will process all damage claims with the carrier and may request that you return the item. Please retain original shipping containers andnotify me immediately if you suspect damage during shipment.

Finally, for those thinking about swapping this good working SSD for their old broken one and then sending the dud back for a warranty refund, that is simply, absolutely, 100% not goingto work - prior to shipment, this item is extensively photographed, all identifying numbers are cataloged, and special UV and other indelible inks are used to mark random sections of the device. Anyattempts at fraud will be appropriately handled, so don't try!

Shipping and Insurance Info

DOMESTIC U.S. SHIPMENTS:

Insurance to cover the replacement cost of an item lost or damaged during transit is not an optional, separately billable line item during checkout. Therefore, all items of sufficient value automatically carry full insurance coverage for US destinations. This coverage is provided via USPS/FedEx/UPS or ShipCover/other third-party, and is already built into the shipping quote - there is no separate fee charged.

INTERNATIONAL SHIPMENTS:

DUE TO THE WELL-EARNED REPUTATION OF CERTAIN COUNTRIES' CUSTOMS AND/OR POSTAL SERVICES FOR OUTRIGHT CORRUPTION (THEFT OF ITEMS) AND INCOMPETENCE (LOSS OF ITEMS), IF YOU SELECT FIRST CLASS INTERNATIONAL MAIL FOR DELIVERY OF YOUR ITEM, I ABSOLUTELY WILL NOT BE HELD LIABLE IN ANY WAY IF IT DOES NOT ARRIVE AT ALL OR ARRIVES DAMAGED. FIRST CLASS INTERNATIONAL MAIL DOES NOT PROVIDE TRACKING INFORMATION ONCE THE PACKAGE LEAVES THE UNITED STATES, DOES NOT PROVIDE DELIVERY CONFIRMATION, AND DOES NOT PROVIDE ANY INSURANCE COVERAGE. IT IS INEXPENSIVE FOR THOSE REASONS, BUT IT ALSO ENTAILS RISK ON THE PART OF THE BUYER. I REPEAT: I ABSOLUTELY WILL NOT BE HELD LIABLE IF YOUR COUNTRY'S CUSTOMS OR POSTAL SERVICE LOSES OR STEALS YOUR ITEM AND DOES NOT DELIVER IT TO YOU - THAT RISK IS ENTIRELY BORNE BY YOU, THE BUYER! IF YOU PURCHASE AN ITEM AND SELECT FIRST CLASS INTERNATIONAL MAIL FOR ITS DELIVERY, YOU ARE EXPLICITLY AGREEING TO THESE TERMS! IF YOU DO NOT AGREE TO THESE TERMS, EITHER SELECT PRIORITY/EXPRESS DELIVERY OR DO NOT PURCHASE THE ITEM! LACK OF FLUENCY WITH THE ENGLISH LANGUAGE, POSSIBLY PREVENTING YOUR FULL UNDERSTANDING OF THESE TERMS, DOES NOT REDUCE YOUR LIABILITY IN CASE OF LOSS, THEFT, OR DAMAGE OF YOUR ITEM DURING SHIPPING, NOR DOES IT SHIFT IT TO ME IN ANY WAY WHATSOEVER. IF YOU DO NOT FULLY COMPREHEND THESE TERMS, PLEASE CONSULT A GOOD ONLINE TRANSLATION SERVICE LIKE "GOOGLE TRANSLATE" TO CONVERT THIS PASSAGE INTO YOUR NATIVE LANGUAGE. IF YOU HAVE ANY QUESTIONS ABOUT THIS POLICY, PLEASE CONTACT ME VIA MESSAGING PRIOR TO PURCHASING THIS ITEM.

• First Class International is notoriously slow for certain countries, sometimes taking as long as 8 to 10 weeks for final delivery of your package. Please keep that in mind if you select First Class International for shipment of your item.

• For higher-value items (especially those shipped to countries with spotty international package delivery reputations), you may select to have the "Registered Mail" option added to your shipment if you have chosen First Class International Mail delivery. Registered Mail provides full insurance coverage for an item - even for First Class International Mail - but adds $15 or more to the cost of standard postage. Please also keep in mind that USPS Registered Mail requires special handling and tracking by the postal and customs services of both the US and your own country, so delivery often takes a few extra days compared to non-registered mail. If you are interested in the Registered Mail option, please send a note along with your payment and you will be issued a separate PayPal invoice to cover the cost of this service.

• For higher-value items, you also have the option of selecting Priority Mail International delivery. Priority Mail International provides full tracking and delivery confirmation information when the non-Flat Rate Box option is selected (Flat Rate Boxes are generally as poor with regard to tracking and delivery confirmation as First Class International). Priority Mail International provides full insurance coverage, so is recommended if you are at all concerned about loss or theft of your item by your country's customs and/or postal services while they are handling your package.

• International shipping charges do not include any taxes, duties, VAT, or customs surcharges that may be collected upon delivery. If you have any questions about this, PLEASE contact your local postal and/or customs authorities before purchasing to learn what additional fees may be charged.

ALL SHIPMENTS:

• Shipping services are generally provided by the US Postal Service for domestic US and most international addresses. In some cases (typically heavy items shipped to US addresses), FedEx or UPS service may be provided. If your location is not listed automatically with an exact shipping price, or you would like to inquire about additional shipping options, please contact me via messaging and I will provide a custom shipping quote for you. Don't forget to mention the exact item and delivery location you are inquiring about!

• Many of my small-package listings feature free domestic USPS First Class or Ground Advantage shipping. For the rest, USPS First Class/Ground Advantage shipping, UPS/FedEx Ground shipping, or upgrades to Priority, Priority Express, 2-Day Express, or Overnight shipping, are typically provided at the current published USPS/UPS/FedEx rates plus transit insurance. For international customers, shipping costs are calculated using the published USPS and/or International Shipping rates for the available shipping options, plus transit insurance, extraordinary packaging materials cost (if any), and a very small amount (one US dollar or less) to cover the overhead of filling out various US customs forms.

• Your package will be shipped within 1 business day of receiving a cleared payment. Depending on time of day that a payment is received/cleared, your package may ship the same day. If there is any shipping delay in order to fully process a payment (see 'Payment Details' below for more information), you will be contacted via email and informed of the expected delay.

• All domestic and international shipments include a delivery confirmation number, tracking number, registered mail number, and/or customs number, depending on the method of shipment selected and shipping vendor (please see important limitation above regarding tracking and delivery confirmation for First Class International packages). These numbers can be used to obtain shipping status via their respective online sites (www.usps.com, www.ups.com, or www.fedex.com). Generally, these shipping numbers are provided automatically for all domestic and international shipments. If they are not provided automatically, I will send an email to your registered email address with the appropriate information. Please keep in mind that for First Class International and Priority Mail International Flat Rate delivery methods, the tracking updates essentially stop once the USPS has processed your package and it has left the United States.

• I'm very happy to combine shipping on multiple items purchased from me and shipped together in a single box, saving you money and me supplies and time! Please contact me for an exact quote (and don't forget to specify which items you want combined into a single shipment, your ZIP Code or Postal Code, and type of service desired - overnight, ground, priority, etc.).

• Local pickup is fine, and incurs absolutely no shipping or handling charges.

Payment Details

• PayPal is fine, and funding via your credit card, bank account, PayPal balance, etc. are all OK -- I don't discriminate against any PayPal funding options! Using PayPal is fast, easy, and will ensure speediest delivery.

• If using PayPal, I will generally only ship to confirmed PayPal addresses, although exceptions may be made for those with excellent response on a case-by-case basis.

• Credit/Debit cards, Venmo, Google Pay or other payments processed through 's payment system are also fine and have the same advantages and benefits as PayPal payments.

• Cash is OK, but ONLY if you're doing a local pick up. I'm sure you know better than to send cash in the mail!

• If you wish to use any form of payment other than PayPal, Credit/Debit cards, Venmo, or Google Pay, please contact me first to check if it is a suitable method and is allowed by 's payment policies. When using certain non-standard payment methods, there may be a shipment delay to allow time for your payment to be processed (typically a few business days). Exceptions are made on a case-by-case basis and only for members with exceptionally positive response history.

Transaction response

• I typically leave response for buyers shortly after payment has been made. If I'm particularly busy, that response may be delayed a bit. Please rest assured, though, that I will not forget to leave it!

• I ask that once you have received your package and have thoroughly checked out your item, that you reciprocate and leave appropriate response for me. If you have any questions or concerns about your item, shipping, payment, or any other issue related to your purchase, please don't hesitate to email me. I will reply promptly - usually within an hour or two unless it's the wee hours of the morning and I'm asleep!

• bases their fees on a member's detailed response ratings for communications, whether the item was as described, shipping costs, and shipping time. Although they profess that scores of 4 or better are acceptable, in practice, any score less than 5 results in significantly higher 'Final Value' fees (up to 20% higher), which in turn leads to higher prices for buyers. So, if there's anything at all about your transaction that you feel does not merit a score of '5', please let me know right away what I could have done better to earn that score.

• Shipping Time: please keep in mind that I have absolutely zero control over how long the US Post Office or other contracted carriers take to actually deliver a package to you once they have it in their possession. All I can promise is that all items are shipped either the same day as payment is received or at worst, the very next business day. Parcel Post, in particular, can take a week or longer to cover the distance between California and the East Coast, so if that poses a problem for you, you may want to opt for one of the expedited shipping options! For international buyers, please be aware that shipping time is impacted greatly by how quickly the customs agents of your country process your package. If they are particularly busy (for example, during the winter holiday season), the added delay can be quite substantial! For whichever shipping option you choose, keep in mind that the 'Shipping Time' score is meant to reflect how quickly a seller posts an item after it has been paid for - not how long the carrier takes to actually deliver the package using the buyer's chosen delivery method!!!

Thanks for viewing my listing!
