KVR16R11D4K4/32I (Intel MB Compatible)
32GB (8GB 1G x 72-Bit x 4 pcs.) PC3-12800
CL11 Registered w/Parity 240-Pin DIMM Kit
ValueRAM's KVR16R11D4K4/32I is a kit of four 1G x 72-bit(8GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM), regis-
tered w/parity, 2Rx4 ECC, Intel® Compatibility Tested, memory
modules, based on thirty-six 512M x 4-bit FBGA components
per module. Total kit capacity is 32GB. The SPD's are pro-
grammed to JEDEC standard latency DDR3-1600 timing of 11-
11-11 at 1.5V. Each 240-pin DIMM uses gold contact fingers.
FEATURES
• JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
• VDDQ = 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with
starting address “000” only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or
MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• On-DIMM thermal sensor (Grade B)
• Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB : Height 1.180” (30.00mm), double sided component

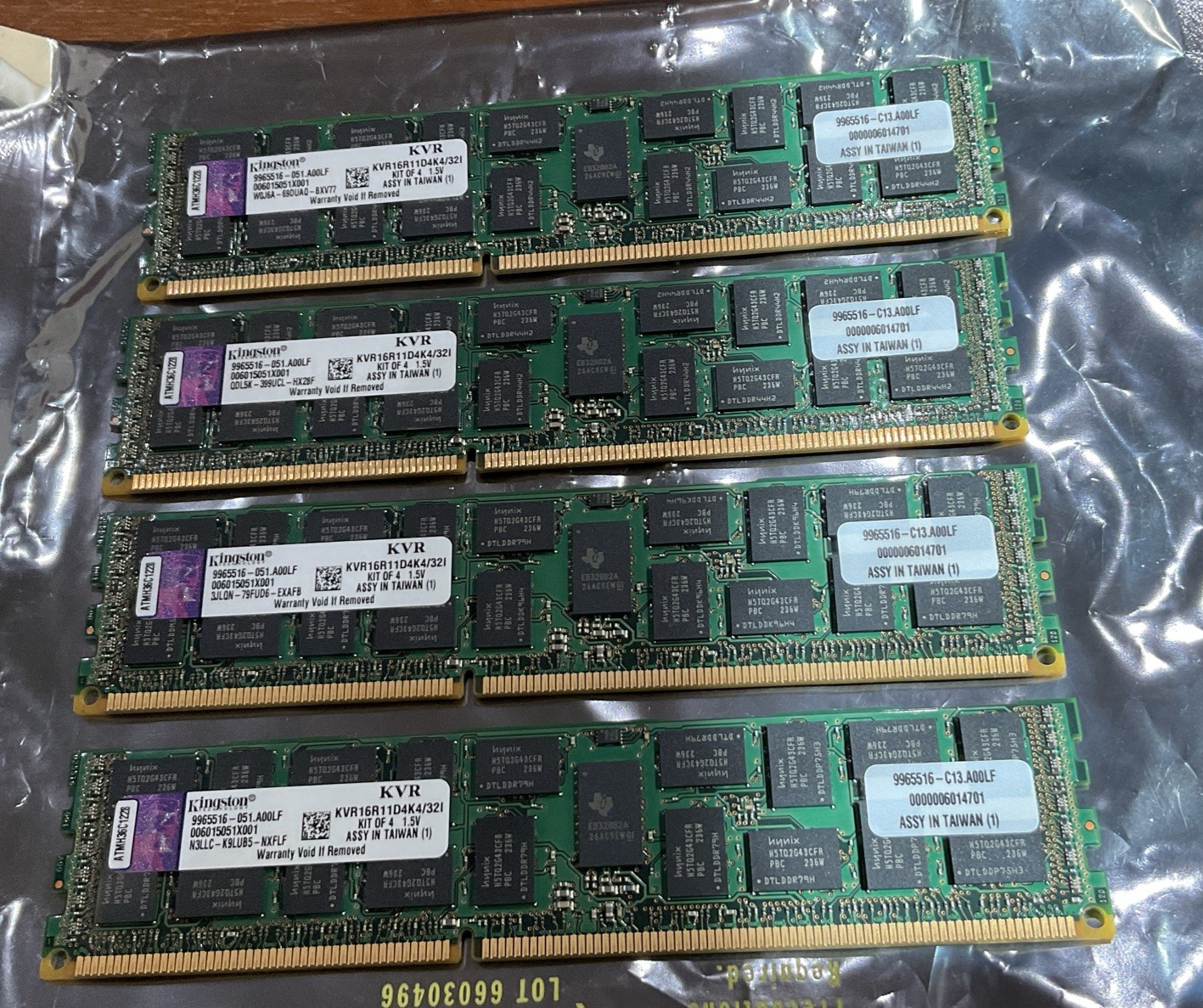

What is pictured is what you are receiving - these were pulled from a working system years ago, and have been in storage.
