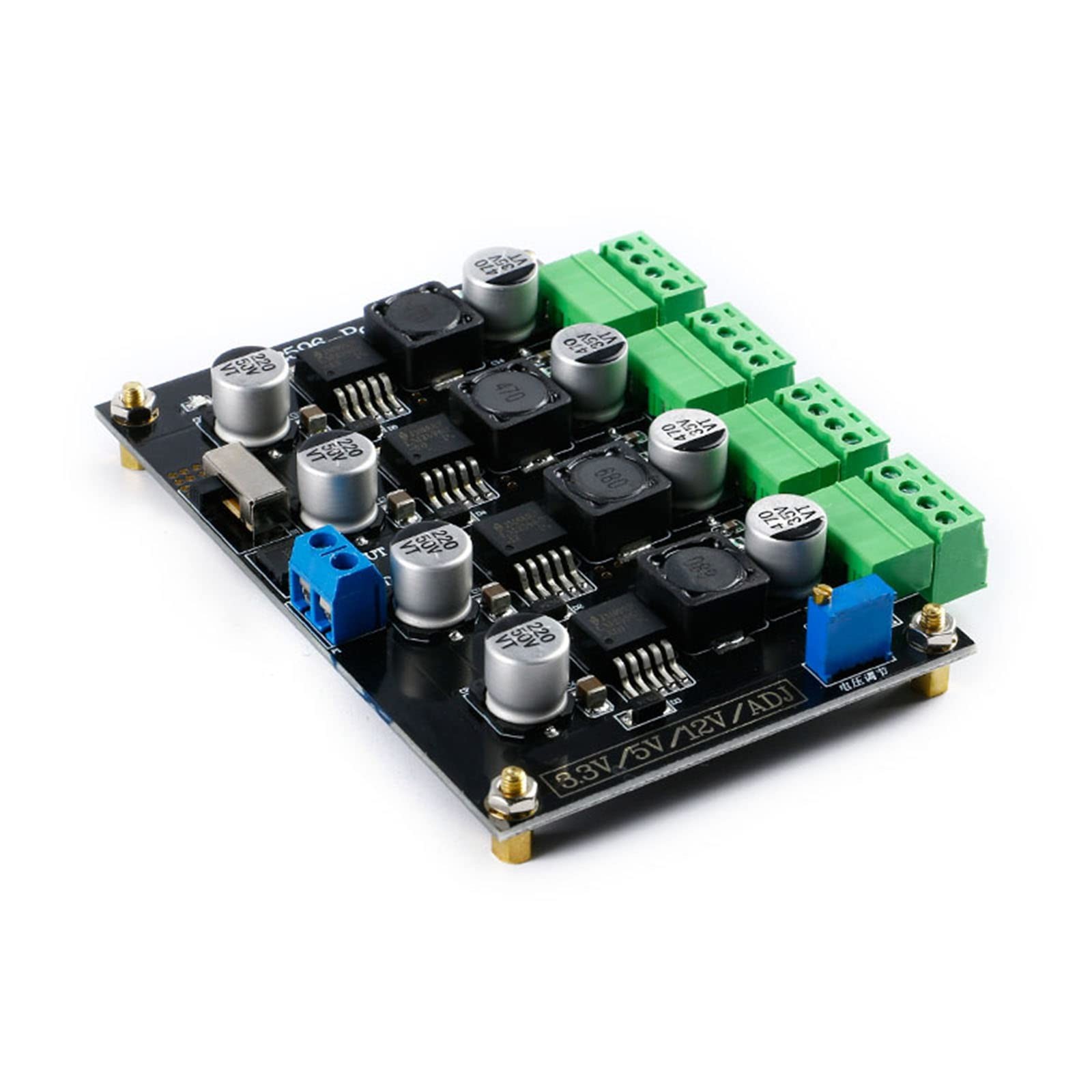

Welcome to our stores!Discover Top Quality Products! We assure your satisfaction.LM2596 Multi-Channel Switching Power Supply Module 3.3V/5V/12V/ADJ Adjustable Voltage Output Buck Converter DC-DC Step-Down Power SupplyImage GalleryProduct Information
Parameters
Module model: LM2596 multi-channel power supply
Module type: Switching power supply
Input voltage: 13V-32V
Output voltage: multi-channel, 3 3V, 5V, 12V, ADJ
Output current: 3A (MAX) (the maximum single circuit current of the module is 3A, and the total current does not exceed 5A)
Conversion efficiency: 85%
Output power
9.9W 3.3V
15W 5V
36W 12V
36W ADJ
Static power consumption: 26mA
Switching frequency: 150KHz
Output ripple
15mV (no-load)
Better than 60mV（ 12V2A On load testing)
Module protection: reverse connection protection
Module features: multiple, low noise, low ripple: with input and output power supply; Indicator light: with positioning hole
Module applications: various, industrial automation control, LED lighting, industrial control equipment, communication equipment, power equipment, instruments, and meters
Module weight: 65g
Module size: 101mm * 68mm * 12mm (L * W * H)
Module heating: The larger the load, the greater the heating (output current greater than 2.5A or output power greater than 10W and long-term operation, please add heat dissipation fins)
Working temperature: 0 ℃~70 ℃
Module interface: Input: 5 08-2P; Output: 3 81-4P*4
Product Highlights
- LM2596 is a switching voltage regulator for buck power management single-chip integrated circuits, capable of outputting a driving current of 3A while possessing excellent linearity and load regulation characteristics
- This module integrates four LM2596 and can simultaneously output four sets of power supplies: 3.3V, 5V, 12V, and ADJ
- The module strictly follows the design specifications of the power circuit for layout and wiring
- The chip Aluminium electrolytic capacitor and high Q value high-power inductance are used to ensure the stability of the output voltage, and the opening on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip
- Suitable for power requirements in student learning competitions and company or individual project development
