LPDA Log-Periodic Dipole Array Antenna for Enhanced Signal Reception, 5-1000 MHz
Price: US $74.09

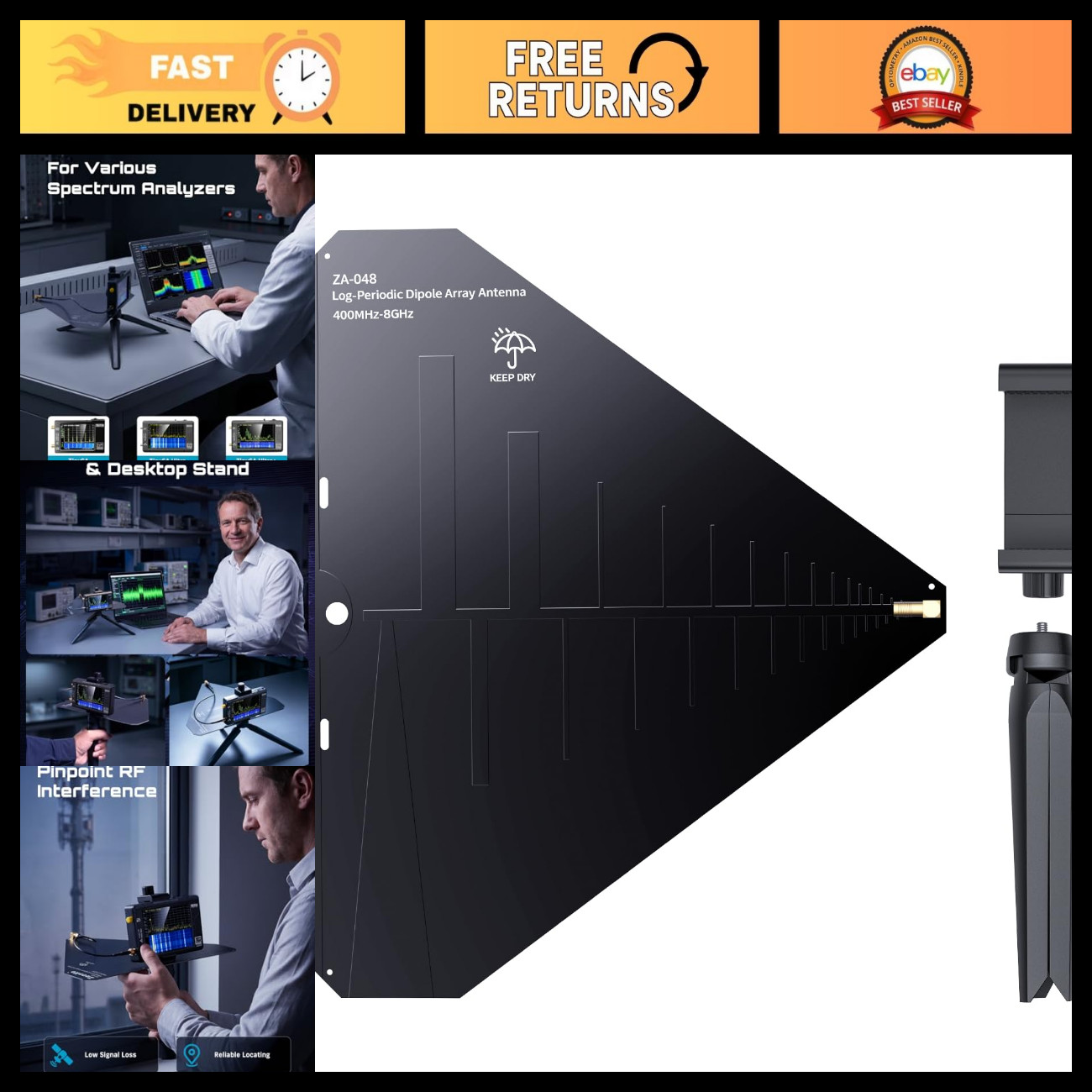

ZA-048 Log-Periodic Antenna
The ZA-048 is a cutting-edge printed Log-Periodic Dipole Array (LPDA) antenna designed for versatility and efficiency. Its optimized design significantly reduces size, making it compatible with various spectrum analyzers and ideal for radio direction finding within the 1 GHz to 8.5 GHz frequency range.
Key Features:
Wide Frequency Range: Operates across an ultra-wide band of 400 MHz to 8 GHz, providing continuous coverage from low to high frequencies. Perfect for spectrum scanning, spatial interference investigation, and on-site signal direction finding.
Impedance & VSWR Characteristics: Nominal input impedance of 50Ω with return loss around 10dB or lower for frequencies above 1 GHz. VSWR approximately 2, ensuring reliable performance across most applications.
Direction-Finding Performance: Designed for moderate precision in radio direction finding, offering excellent sensitivity when adjusting orientation through body movement.
Stable Tripod Bracket: Features a tripod support structure with an adjustable clamp compatible with various models, ensuring a professional setup for RF signal direction finding.
Portable and Compact Design: Lightweight and easy to carry, making it ideal for outdoor mobile testing and convenient for on-the-go use.
