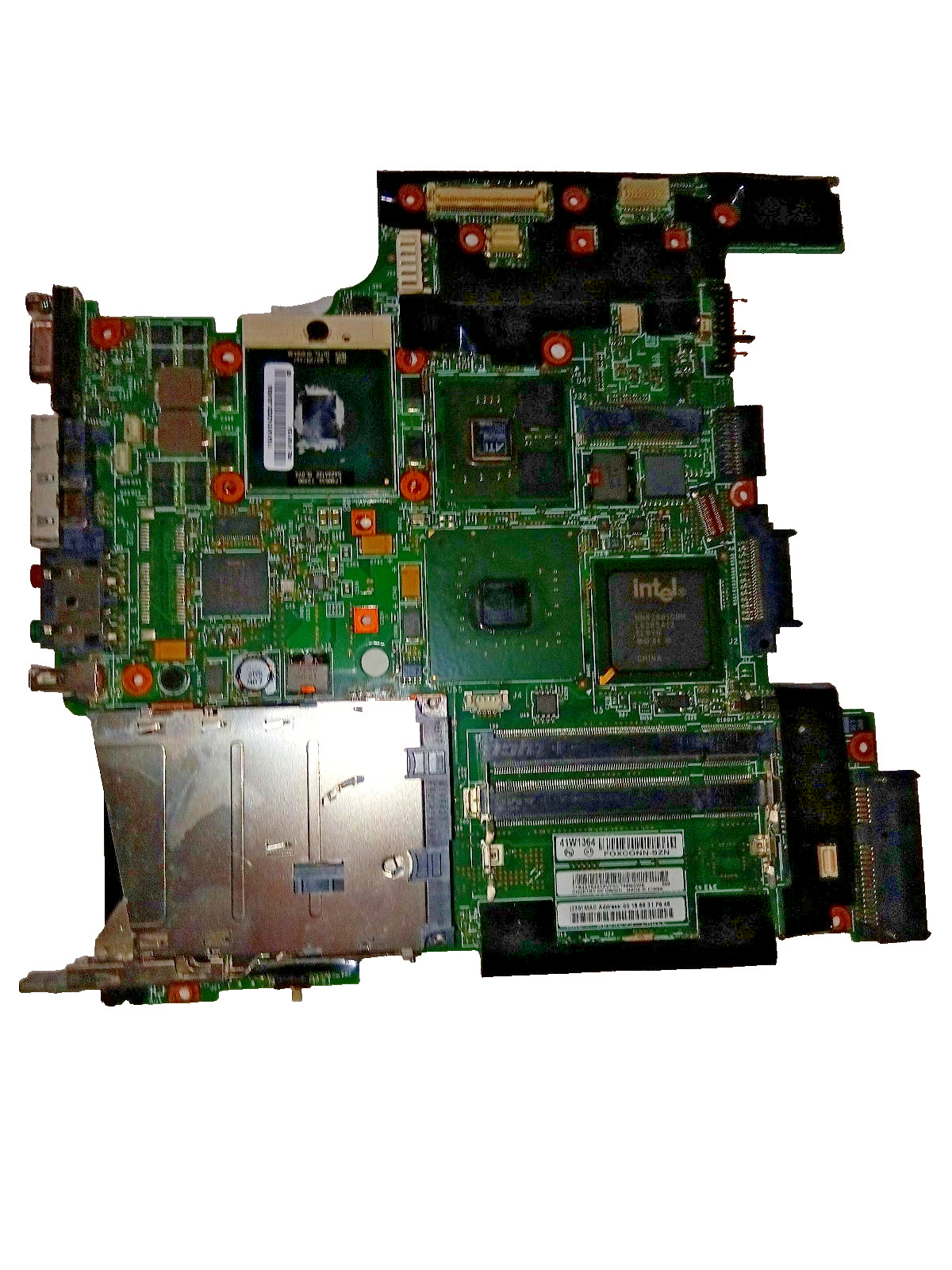

OEM Lenovo ThinkPad T60 T60p 14.1" Motherboard 41W1364 ATI Radeon GPU System Main Board w/CPUThe IBM/Lenovo ThinkPad T60 motherboard with FRU part number 41W1364 is an Intel-based system board designed for 14.1-inch ThinkPad T60 and T60p laptops featuring discrete ATI graphics.Specifications & Details:
• Compatible Models: Lenovo ThinkPad T60 and T60p (14.1" form factor)
• Graphics: Dedicated ATI Video (ATI Mobility Radeon)
• Processor Support: Socket M / Intel Core / Core 2 Duo processors
• GPU Spec: Features dedicated ATI Mobility Radeon X1300 graphics.LENOVO 41W1360
• VGA / CRT (for an external monitor)• Memory: DDR2 RAM slots• 3 x USB 2.0 Type-A• RJ-45 Ethernet (LAN network)
• RJ-11 Modem (Telephone jack)
• 3.5mm Headphone / Audio-out
• 3.5mm Microphone-in(Note: The main power barrel plug port is separate and attaches via a wire harness rather than being soldered directly down to the board layout).
• Chassis Fit: Sized exactly for the 14.1-inch standard 4:3 square screen aspect ratio chassis. (Will not fit widescreen models).
• Heatsink Note: "Requires the dual-pipe ATI graphics heatsink assembly (FRU 41W1460 / 41W1466). Will not fit under the single-pad Intel integrated graphics fan assembly."
* **Condition Notice:** Carefully pulled from a clean, retired environment. Because I lack a fully working testbed laptop to verify data throughput or voltage output, this kit is sold strictly **Untested / As-Is for Parts or Repair**.
