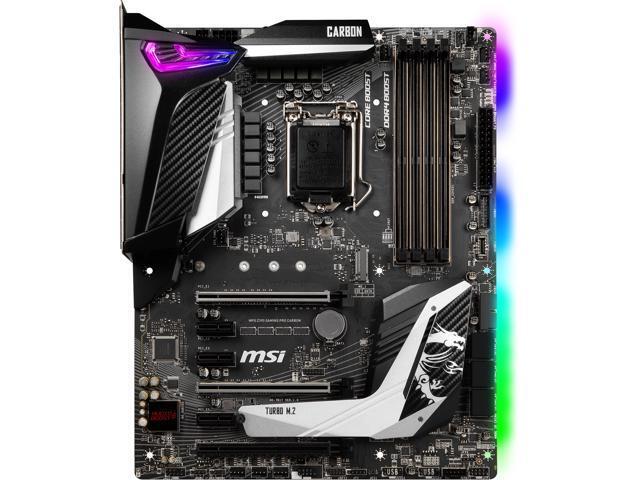

ModelBrandMSIModelMPG Z390 GAMING PRO CARBONSupported CPUCPU Socket TypeLGA 1151 (300 Series)CPU TypeSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
* Not backward compatible with older generation of LGA 1151 CPUsChipsetsChipsetIntel Z390Onboard VideoOnboard Video ChipsetSupported only by CPU with integrated graphic:
1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz
1 x DisplayPort port 1.2, supports a maximum resolution of 4096x2304@60HzMemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardDDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133Maximum Memory Supported128GBChannel SupportedDual ChannelExpansion SlotsPCI Express 3.0 x163 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)PCI Express x13 x PCIe 3.0 x1 slotsStorage DevicesSATA 6Gb/s6 x SATA 6Gb/s ports*
* M.2 slots and SATA ports share the bandwidth.M.22 x M.2 slot (Key M)*
Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices
* M.2 slots and SATA ports share the bandwidth.Intel Optane ReadyYes
* Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.SATA RAID0/1/5/10Onboard AudioAudio ChipsetRealtek ALC1220P-VB2 CodecAudio Channels7.1-Channel High Definition Audio
Supports S/PDIF outputOnboard LANLAN ChipsetIntel I219-VMax LAN Speed10/100/1000MbpsRear Panel PortsPS/21 x PS/2 keyboard/mouse portHDMI1 x HDMIRJ451 x RJ45DisplayPort1 x DisplayPortUSB 3.13 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (Type-A)USB 1.1/2.02 x USB 2.0 (High-speed USB) ports (Type-A)USB Type-C1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port (Type-C)S/PDIF Out1 x OpticalAudio Ports5 PortsInternal I/O ConnectorsOnboard USB1 x USB 3.1 Gen2 Type-C port
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)Other Connectors1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Serial port connector
1 x Front panel audio connector
2 x System panel connectors
1 x Thunderbolt Add-on Card Connector
1 x Chassis Intrusion connector
1 x TPM module connector
2 x 4-pin RGB LED connectors
1 x 3-pin RAINBOW LED connector
1 x 3-pin CORSAIR LED connectorPhysical SpecForm FactorATXLED LightingRGBDimensions (W x L)12.0" x 9.6"Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connectorFeaturesFeaturesSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Supports DDR4 Memory, up to 4400(OC) MHz
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
Lightning Fast Game experience: 2 x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Turbo USB 3.1 GEN2
Set Core Power Free: Core Boost, 8+4-pin CPU power connector, Game Boost, DDR4 Boost with Steel Armor
AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
Pre-installed I/O Shielding: Better EMI protection and more convenience for installationOn Aug 2, 2024 at 15:40:39 PDT, seller added the following information: On Sep 25, 2025 at 03:43:57 PDT, seller added the following information: On Nov 26, 2025 at 01:48:47 PST, seller added the following information: On Mar 11, 2026 at 19:00:54 PDT, seller added the following information:
