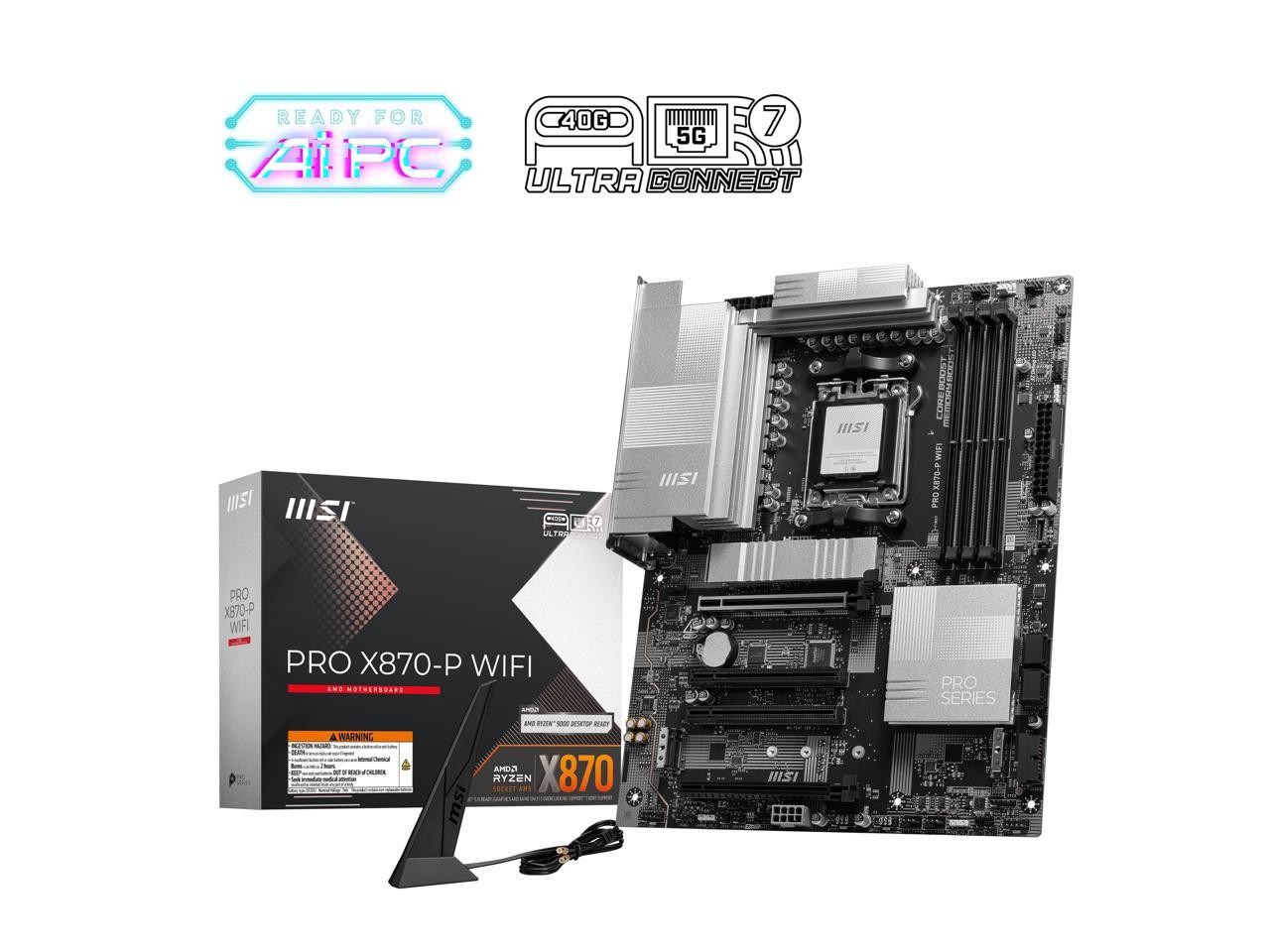

Learn more about MSI PRO X870-P WIFIModelBrandMSIModelPRO X870-P WIFISupported CPUCPU Socket TypeAM5CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 SeriesChipsetsChipsetAMD X870MemoryNumber of Memory Slots4x288pin (DDR5)Memory StandardDDR5 5600+ (OC)Maximum Memory Supported256GBChannel SupportedDual ChannelECC SupportedSupports ECC UDIMM memory (non-ECC mode)Buffer SupportedUn-bufferedMemory FeatureMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*Expansion SlotsPCI Express 5.0 x16PCI_E1 supports up to PCIe 5.0 x16 (From CPU)PCI Express x4PCI_E4* slot (From X870 chipset)
PCI_E4 supports up to PCIe 4.0 x4PCI Express x1PCI_E2 & PCI_E3 (From Chipset X870, ASM2806) Supports up to PCIe 3.0 x1Other Slots* PCI_E4 & M2_3 share the bandwidth. Default that PCI_E4 slot runs x2 when installing device into the M2_3 slot. Otherwise, PCI_E4 slot will run x4 when M2_3 has no device.Storage DevicesSerial ATA (SATA)4 x SATA 6Gb/sM.2M2_1 slot (From CPU)
Supports up to PCIe 5.0 x4
Supports 2260/2280 storage devicesM2_2 (From X870 chipset)
Supports up to PCIe 4.0 x4
Supports 2280/110 storage devicesM2_3 slot (From X870 chipset) *
Supports up to PCIe 4.0 x2
Supports 2260/2280 storage devices* PCI_E4 & M2_3 share the bandwidth. Default that PCI_E4 slot runs x2 when installing device into the M2_3 slot. Otherwise, PCI_E4 slot will run x4 when M2_3 has no device.Onboard AudioAudio ChipsetRealtek ALC897Audio Channels7.1 ChannelsOnboard LANLAN ChipsetRealtek 8126VBMax LAN Speed5GbpsRear Panel PortsBack I/O Ports1 x Flash BIOS button & Clear CMOS bottom
1 x HDMI port
1 x USB 40Gbps Type-C port (From CPU)
1 x USB 5Gbps Type-A port (1x from CPU, 1x from Chipset X870)
2 x USB 10Gbps Type-A ports (From Chipset X870)
4 x USB 2 Type-A ports (From GL850)
1 x 5G LAN (RJ45) port
1 x USB 20Gbps Type-C port (From Chipset X870)
2 x Wi-Fi Antenna connectors
3 x Audio jacksInternal I/O ConnectorsOnboard USBAMD X870 Chipset
- 1 x USB 10Gbps Type-C connector
- 1 x USB 5Gbps connectors
Supports additional 2 USB 5Gbps ports
- 2 x USB 2.0 connector
Supports additional 4 USB 2.0 portsOther ConnectorsFan Connectors
- 1x 4-pin CPU fan connector
- 1x 4-pin pump fan connector
- 6x 4-pin System fan connectors
- 1x 7-pin JAF1System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Tuning Controller connectorJumpers
- 1x Clear CMOS jumperPhysical SpecForm FactorATXLED Lighting1 x 4-pin RGB LED connector
3 x 3-pin ARGB_V2 LED connectors
4 x EZ Debug LEDDimensions (W x L)12.0" x 9.6"Power Pin1 x 24-pinPower Connector (ATX_PWR)
2 x 8-pin Power Connector (CPU_PWR)
1 x 8-pin Power Connector (PCIE_PWR)Software FeatureBIOS Feature1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS Center
7-ZIP
Acrobat
Adobe Creative Cloud
Adobe Redeem LauncherDropbox
AIDA64 Extreme-MSI Edition
CPU-Z MSI GAMING
Norton 360
Realtek ConsoleFeaturesFeaturesMSI Center Features
- Mystic Light
- Frozr AI Cooling
- User Scenario
- True Color
- Live Update
- Hardware Monitoring
- Super Charger
- Devices Speed Up
- Smart Image Finder
- MSI Companion
- System DiagnosisPerformance
- Core Boost
- Dual CPU Power
- Memory Boost
- Lightning Gen 4 PCI-E Slot
- Lightning Gen 4 M.2 Slot
- 2oz Copper thickened PCBDIY Friendly
- PCI-E Steel Armor
- EZ DEBUG LED
- EZ LED ControlAudio
- Audio BoostRGB Support
- Mystic Light Extension (RGB)
- Ambient Devices SupportBIOS
