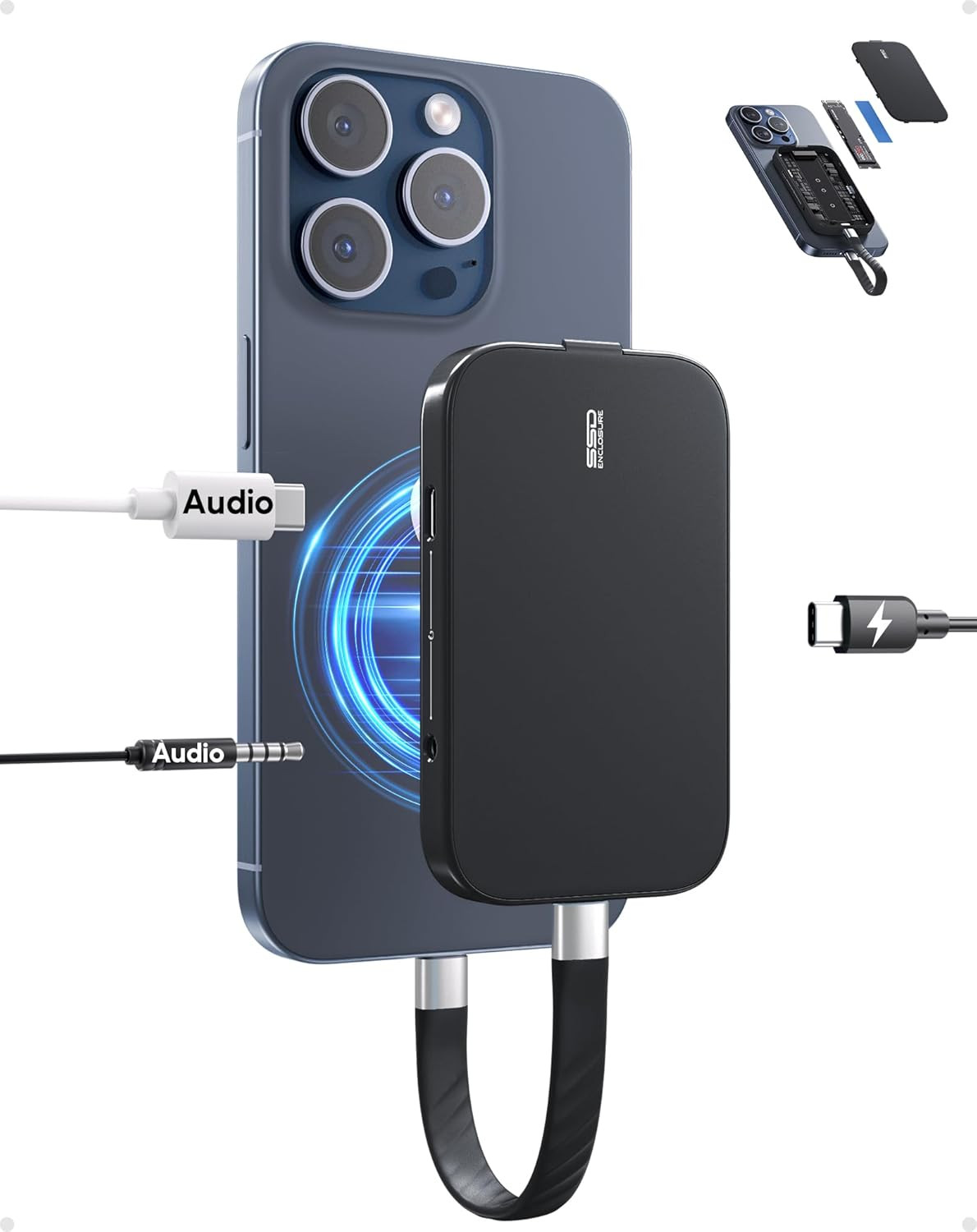

Magnetic M.2 2230 SSD Enclosure for Iphone 15 16 17 Pro/Max Prores, M.2 2242 2260 2280 Nvme SSD to USB C Enclosure 10Gbps, 60W PD, USB-C/ 3.5Mm Audio for Macbook Ipad SSD Not Included - BlackDescription Item model number BS228A Item Weight 2.24 ounces Data Transfer Rate 10 Gigabits Per Second Color Black Memory Storage Capacity 1 TB Product Dimensions 3.86"L x 2.36"W x 0.48"H Material Plastic Compatible Devices iPhone 15 Pro/Max/iPhone 16 Pro/Max/ iPhone 17 Pro/Max, iPhone 17, iPhone 17 Pro, iPhone 17 Pro Max, iPhone Air‌ Max Number of Supported Devices 1 Hardware Interface 3.5mm Audio, USB 3.2 Gen 2, USB Type C Hardware Platform Universal

• 2 IN 1 MAGNETIC SSD ENCLOSURE - Compatible with most NVMe protocol (B+M Key/ M Key) SSDs, PULWTOP magnetic SSD enclosure for iPhone supports up to 2TB capacity expansion. 1) For iPhone: Compatible with 2230 2242 PCIE M.2 SSDs, but 2260/2280 PCIe SSDs can ONLY keep statble working status with PD adapter connected; Fully compatible with 2230/ 2242/ 2260/ 2280 SATA M.2 SSDs. 2) For Laptops: Works with SATA / PCIe3.0 NVMe / M.2 SSD in sizes of 2230/2242/2260/2280, but SSDs with heat sinks are not supported.
• MULTI-PORT FOR MULTI-FUNCTION - The iPhone 15 pro max prores SSD enclosure is designed with a USB-C PD3.0 port(max 60W) for fast charging your phone, a USB-C 2.0 480Mbps & Audio/Mic for earphone/ micphone with USB-C port, a 3.5mm Audio & Mic jack for earphone/ headset with 3.5mm port, and a USB 3.2 Type C M.2 SSD enclosure to support data transmission speed up to 10Gbps. *Note: Use the both Audio/Mic ports at the same time, only pick the first one.
• DIRECT STORAGE OF PRORES VIDEO - Designed for Enhanced ProRes video, allowing direct 4K@60Hz ProRes videos recording to the external storage, which is easy to transform your iPhone 15 16 Pro/Pro Max into a professional filming platform. An essential M.2 2230 nvme ssd enclosure for videographers, photographers, and content creators who need to expand phone storage capacity.
• 10GBPS HIGH SPEED TRANSMISSION - After installing the NVMe SSD, the USB-C male port of the SSD enclosure supports read and write speed up to 1000-1200MB/s, which is perfect data transfer and backup solution. Backward compatible with USB 3.1 Gen1 and USB 3.0. Mini size makes it portable for home, office, indoor, outdoor, travel, etc.
• COMPATIBILITY - Built in magnetic suction, can hold your device and support most MagSafe accessories, perfect for intensive tasks or casual media consumption. Equipped with 10Gbps USB-C 3.2 Gen2 port, a multifunctional USB-C NVMe SSD enclosure specially designed for iPhone 15 16 Pro/ iPhone 15 16 Pro Max, iPhone 17, iPhone 17 Pro, iPhone 17 Pro Max, iPhone Air‌ ProRes video recording. It is also an ideal SSD enclosure for devices with Type-C interface such as iPad Pro, MacBook Pro/Air, Thunderbolt 3/4, Windows laptops, Android tablets, etc.

Product description PULWTOP 2 in 1 Magnetic SSD Enclosure Hub for Phones & Laptops 1 Magnetic Design 2 60W PD Fast Charging 3 Optional Audio & Mic Port 4 10Gbps Transmisson 5 What You Got 1 SSD Enclosure for iPhones 2 2230/2242 SSDs on Phones 3 SSD Enclosure for Laptops 4 Full-size SSDs on Laptops 1 How to Install SSD 2 SSD Insert Requirements 3 SSD Buckle Lock Specification Product Name 2 in 1 Magnetic SSD Enclosure Hub for Phones & Laptops - Black Support SSD Card Type PCIe3.0 NVMe SSD, please NOTE: 1). DO NOT support SATA SSDs; 2). The SSD enclosure DOESN'T support SSDs with a heatsink (Because the heatsink SSD is too thick that can't close back cover) Compatible SSD Size Fit with 2230/2242/2260/2280 PCIe SSDs. **Laptops: full size available. **Phones: Please use the M.2 SSDs of size 2230 2242 for iPhones, because the SSDs of size 2260 2280 require more current to work. Phone can't provide enough current that may easily cause insufficient power and unstable current, which leads to "keeps disconnecting from phone" issues. If you would like to use the 2260/2280 SSDs, please connect with the PD power to keep enough current for SSD normal working Recommended SSDs for Laptops For Laptops: Samsung 980 Pro, Samsung 970 EVO; Western Digital Black SN850, Western Digital Black SN750, Western; Digital Blue SN550; Acer FA100; Crucial P2; Intel 670P Series; Siliconmotion SM2263XT, etc Recommended SSDs for Phones For phones: Crucial P310 2230; SABRENT Rocket 2230; WD_BLACK SN770M SSD 2230; Silicon Power M.2 2230; and other M.2 2230/2242 NVME SSDs Ports Input: USB-C male; Output: 1 x PD 3.0 60W(Max), 1 x 3.5mm Audio & Mic; 1 x USB-C 2.0 480Mbps; 1 x M.2 SSD enclosure 10Gbps Cable 1 x 13.3cm detachable USB-C to USB-C cable *NOTE: If there is no response when connecting with the cable, the cable may be individual defective. Please try an other USB-C to USB-C full-featured cable (cable that supports data transmission and charging functions) Compatible Devices An 2-in 1 SSD enclosure for devices with Type-C interface such as iPad Pro, MacBook Pro/Air, Windows laptops, Android tablets, etc. Compatible with iPhone 16 15 Pro/ iPhone 16 15 Pro Max ProRes (Recommended to use M.2 SSDs of size 2230 for iPhones) Materials Case: Plastic; Inner: Electronic Component Weight 63.5g Dimension 98 x 60 x12.3mm
