Mars Antennas MA-WE2458-3H Dual Band MIMO Antenna [2.3-2.7GHz, 4.9-6.1GHz] - LOT OF 5

[Condition]

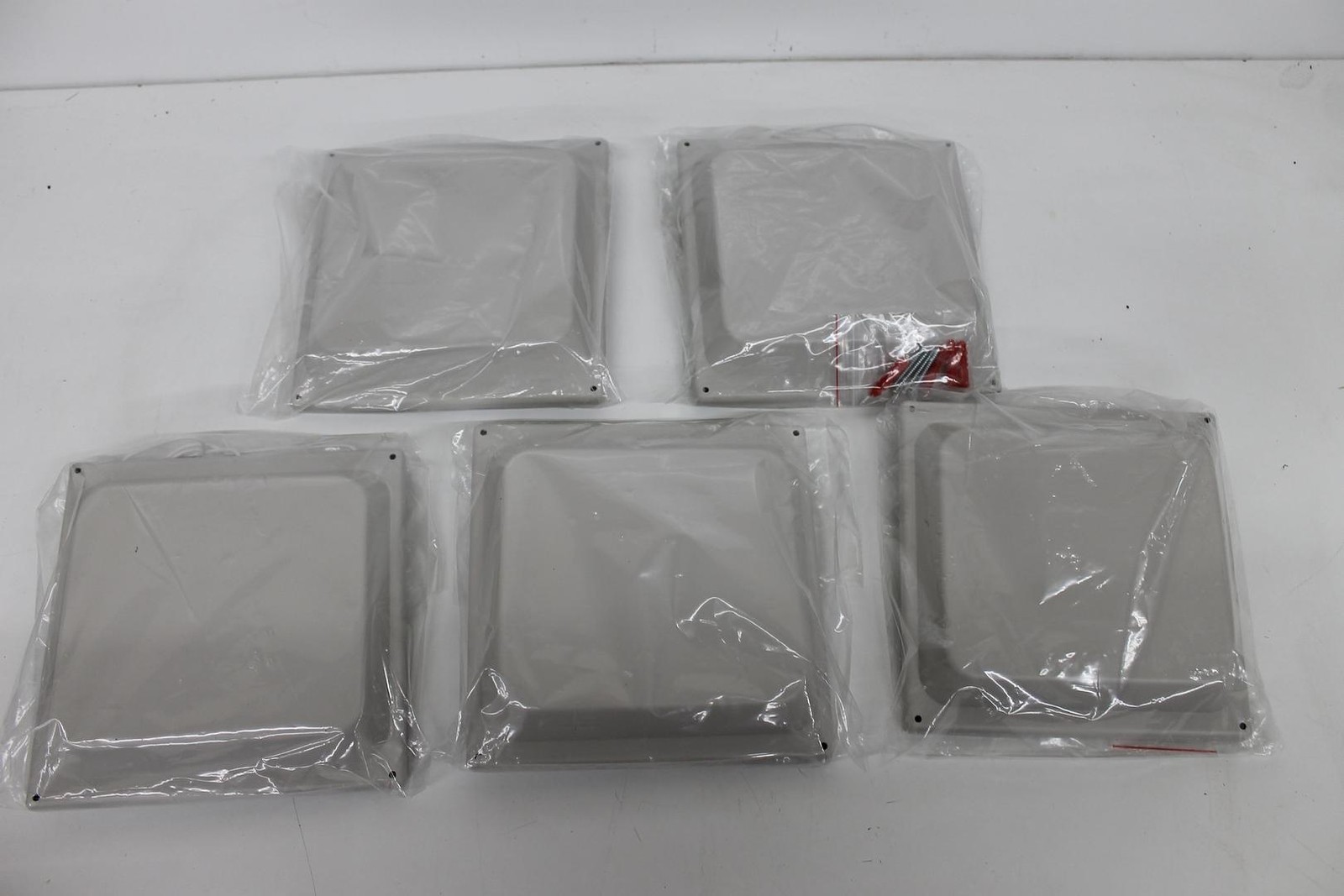

Antennas are brand new. See pictures, item comes as shown. Includes 5 Dual Band Sector antenna provides coverage of 2.3 to 2.7 GHz & 4.9 to 6.1 GHz in a single antenna radome.

Additional Features:

 Simultaneous coverage of LTE, 802.11 a, b, g, e, n, WiMAX & 4.9 GHz Public Safety Bands.
 Light weight and durable construction.
 UV protected radome made of Frequency range: 2.3–2.7 GHz & 4.9–6.1 GHz
- Gain (typ.): 3 x 5 dBi
- VSWR (max.): 2:1 (typ. 1.5:1)
- Polarization: Vertical & 2 Dual Slant ±45°
- 3 dB Beam-Width (H-Plane, typ.): 120°
- 3 dB Beam-Width (E-Plane, typ.): 70°
- Input power (max.): 20 W
- Input impedance: 50 Ohm

Mechanical

- Dimensions (W x L x H): 200 x 200 x 33 mm (7.9" x 7.9" x 1.25")
- Connector: See ordering options9
- Weight: 400 g
- Back plane: Aluminum (chemical passivation)
- Radome: UV-protected polycarbonate
- Mount: See ordering options

Environmental

- Operating temperature: -40°C to +70°C
- Vibration: IEC 60721-3-4
- Flammability: UL94
- Waterproofing: IP67
- Humidity: ETS 300 019-1-4, EN 302 085 (Annex A.1.1)
