Matrox NewKVM Extender COMBO Extio XTO2A-FESLPAF Fiber Card&XT02-F2408F 4Port For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

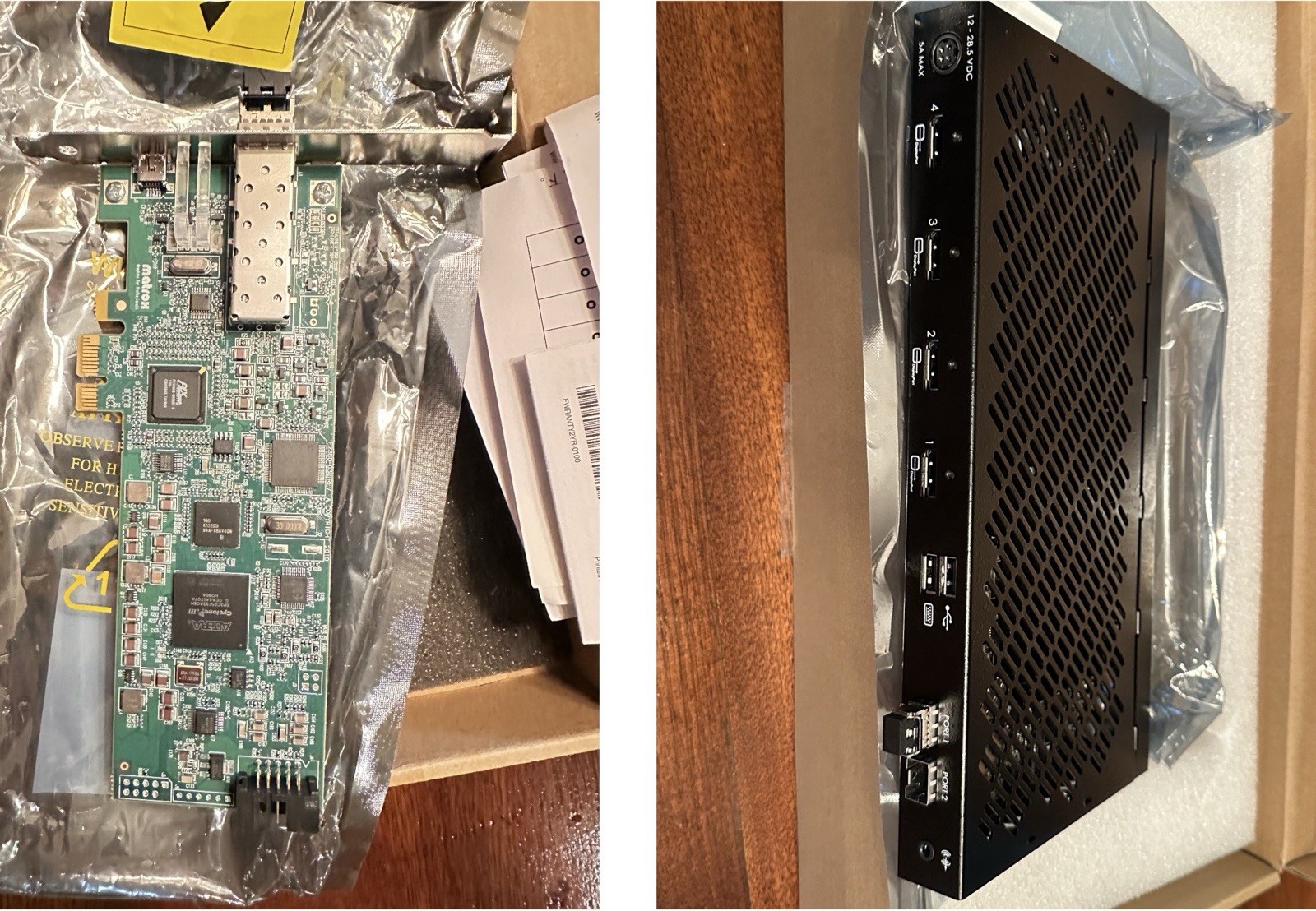

Matrox *New*KVM Extender COMBO Extio XTO2A-FESLPAF Fiber Card&XT02-F2408F 4Port

Price: US $1799.97

Combo Includes: ALL NEW! Matrox Fiber Optic KVM interface card, 4 Port DP video port KVM extension cabinet, 12foot Fiber Optic pair cable, details below:

NOTE: This module has 4x Display Port video outputs. It comes with 4x Display Port (DP) to DVI adapters, but it can connect to any Display Port or HDMI based monitor depending on the cables and monitors you use. DVI monitor is NOT required.

Available because a customer project got cancelled.

KVM Control Card MSRP $595

KVM 4 Port Cabinet MSRP $3995

NOTE: 5 complete combo kits available - make an offer!

See pictures for complete description details.

Shipping insured to lower 48 states, no international shipping.

Thank you for looking!

Note: PLEASE ASK ALL QUESTIONS IN ADVANCE OF offerDING, RETURNS NOT ACCEPTED.

4 port KVM cabinet

- XTO2-F2408F Matrox Extio F2408F - KVM / audio / USB extender Remote Graphics Unit

Main Features

* KVM / audio / USB extender

* USB

* 4 ports

* up to 0.6 miles

Description

The Matrox Extio F2408 point-to-point, KVM extension solution separates the keyboard, mouse, audio peripherals and up to 4 displays from the rest of the computer by up to 1 km (3280 feet) via fiber-optic cable. The fiber-optic connection allows raw, uncompressed data to travel between the remote host system and the user-side Extio F2408 appliance, resulting in unmatched HD resolution support and uncompromised workstation performance. Designed for industries requiring stable, reliable, and scalable graphics, the Extio F2408 also allows room for expansion. Combine it with the optional Extio F2408E Expander to drive even more mission critical displays - up to 8 in all, with a maximum resolution of 2560x1600 per display and this all from a single workstation, fiber-optic cable, and adapter.

Tech Specs

Specifications are provided by the manufacturer.

* Overview

* Brand : Matrox

* Product Line : Matrox Extio

* Model : F2408

* Manufacturer : Matrox Graphics

* Network & Communication

* Compliant Standards : USB 1.1, USB 2.0

* Connectivity Technology : Wired

* Features : Fanless

* Form Factor : External

* Max Transfer Distance : 0.6 miles

* Ports : 4

* Product Type : KVM / audio / USB extender

* Status Indicators : Power, Status

Key Features

* High performance, zero compression KVM optical extension up to 1 km from the PC1

* Supports up to 4 displays (DisplayPort™, Digital, or Analog) from a single appliance, fiber-optic cable and workstation2

* Independent and stretched mode support for 4x1 and 2x2 configurations

* Expandable with support for up to 8 displays via Extio F2408E Expander unit

* Combine two Matrox PCIe interface cards, Matrox Extio F2208, Extio F2408, plus Extio F2408E Expander units to drive up to 16 DisplayPort and/or DVI displays, keyboard, mouse, audio and up to eight additional USB 2.0 ports at up to 1 km from the PC

* Clone multiple displays in two separate remote locations across two fiber-optic cables, while also stretching desktops}

* Max. resolution of 2560x1600 (DisplayPort), & 1920x1200 (Digital, Analog) per display

* Matrox KVM technology extends the bus via a PCIe bus interface card while optical connection guarantees performance eliminating hidden/dropped frames, data latency, and artifacts as seen with compression-based solutions

* Designed for process control rooms, dispatch centers, and other mission-critical environments that require stable, reliable I/O extension technology

* Flexible connectivity with 5x USB 2.0 ports for keyboard, mouse, touch screens and other HIDs

* BIOS Level Keyboard Support enables basic keyboard functionality and access to the system BIOS directly from the user-side Extio F2408 appliance

* Extio Setup Utility (BIOS Level Configuration & Diagnostics) to verify and/or configure the fiber-optic transceiver, link status, USB ports, hardware mapping, and device password protection

* Matrox Appliance Integrity Scanner to log device Matrox Appliance Configuration Utility to field upgrade firmware to take advantage of the latest features

* Wake from sleep/standby by pressing any keyboard key with select systems

* Passive cooling (heat sink with no fan) for silent operation and extra reliability

* PCI Express x1 fiber-optic interface card (Part # XTO2A-FESLPAF) sold separately

* Extensive operating system support for Microsoft® Windows® and Linux

* Intuitive and easy-to-use Matrox PowerDesk 3.0 multi-display configuration and desktop management software - downloadable

* Edge Overlap support for multi-projector installations

* Global sales and technical support

Hardware included

* Matrox Extio F2408 remote graphics unit

* 4x DisplayPort to DVI adapters

* Universal, external, 12-volt-DC, 5-amp, power adapter

* Power supply cable for various regions (North America / Japan, UK, Continental Europe, Australia)

Hardware required (sold separately)

* Matrox PCIe x1 interface card (Part # XTO2A-FESLPAF)

* LC/LC optical cable - multimode (62.5/125 μm (OM1), 50/125 μm (OM2, OM3, or OM4)) available from 3rd party vendors

KVM controller interface card

- XTO2A-FESLPAF Matrox Extio - KVM extender Interface Card
