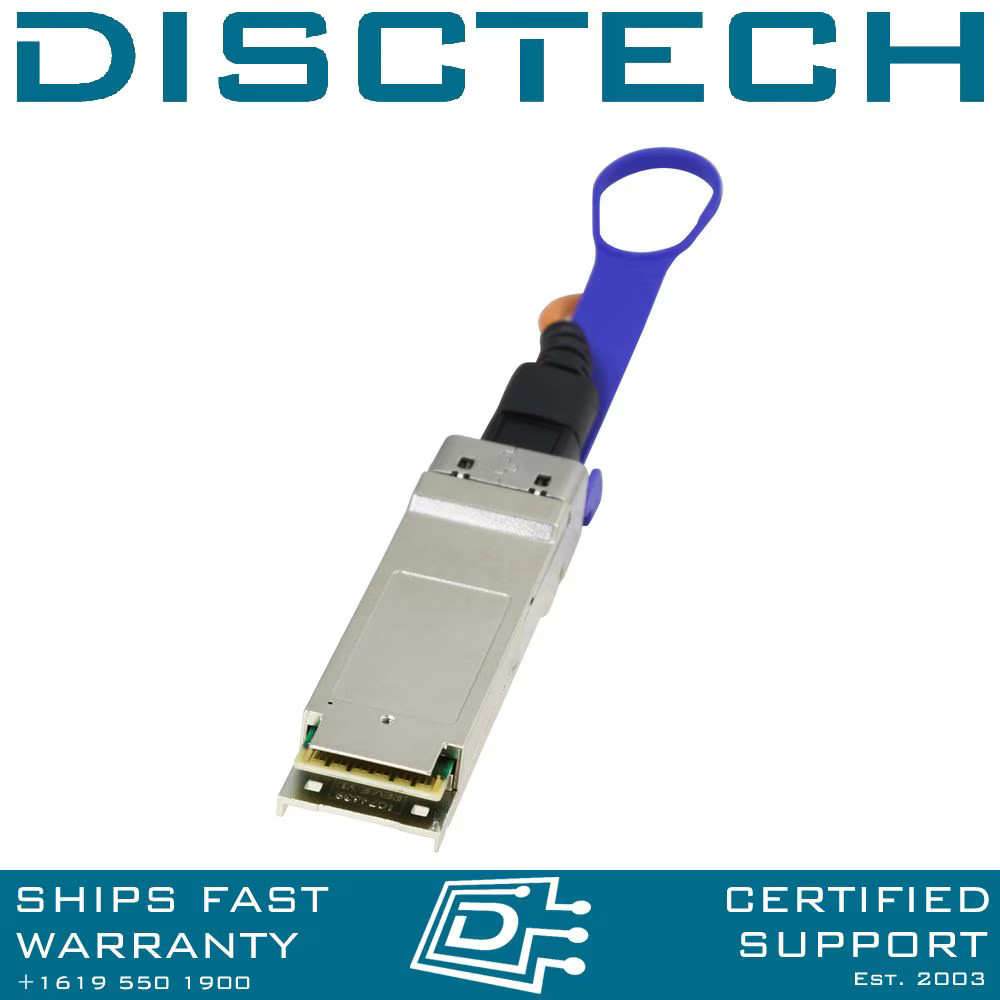

Mellanox MC220731V-003 3m active QSFP+ 56Gb/s fiber cable - Brand NewBrand New

Mellanox MC220731V-003 5m / 3 Meter active fiber cable, VPI / Virtual Protocol Interconnect, up to FDR / Fourteen Data Rate 56 GbE, QSFP+ / Quad Small Form-Factor Pluggable Plus - Brand New

56Gb/s QSFP+ Active Optical Cable

Mellanox MC220731V is a family of VCSEL-based (Vertical Cavity Surface-Emitting Laser) QSFP+ active optical cable (AOC) designed for use in 40GbE Ethernet and 56Gb/s Virtual Port Interconnect (VPI) systems. This family of AOCs offers high port density and configurability, as well as a longer reach than passive copper cables in data centers. Since the AOC is hot pluggable, it is easy to install and replace.

The MC220731V family has a standard SFF-8685 compliant QSFP+ port on the electrical side towards the host system.

MC220731V AOCs contain four multi-mode fibers (MMF) optical transceivers per end, each operating at data rates of up to 14.0625Gb/s. The transmitters have input equalizers compensating for signal attenuation across the host PCB, and the receivers have programmable output amplitude and pre-emphasis.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and to 56Gb/s data rate

1W maximum power consumption

SFF-86855 and SF-8436 compliant

Operating case temperature of 0-70°C

3.3V power supply

BER better than 1E-15

Hot pluggable

Up to 100 meters in length

Standard multimode fiber

RoHS compliant

Plenum rated Part Numbers: 00KF019
