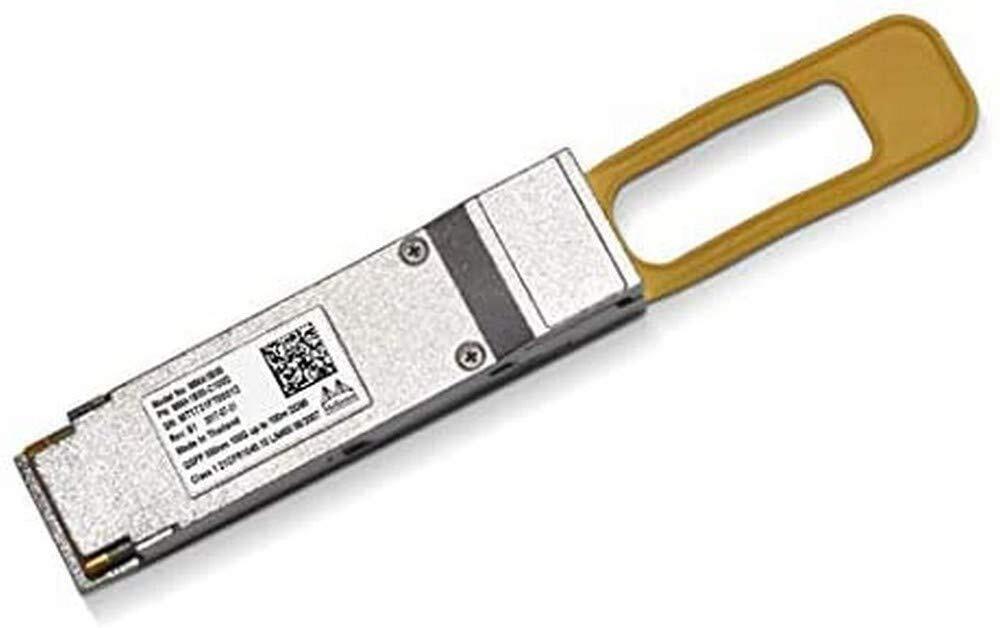

Mellanox Technologies TRANSCEIVER 100 GIGABIT ETHERNET QSFP28Technical DetailsBrand‎MellanoxConnector Type‎OpticalCable Type‎EthernetConnector Gender‎Male-to-MaleData Transfer Rate‎100000 Megabits Per SecondShape‎RoundUnit Count‎1 CountItem Weight‎1 KilogramsConnectivity Technology‎EthernetWattage‎1.8 wattsManufacturer‎MellanoxItem model number‎MMA1B00-C100DItem Weight‎2.2 poundsItem Dimensions LxWxH‎4.65 x 0.72 inchesDate First Available‎June 13, 2017

• Condition: Used, tested, working.
• Application/Usage: Optical Network
• Application/Usage: Data Networking
• Total Number of Ports: 1
• Connector Type: MPO
• Interfaces/Ports Details: 1 x MPO 100GBase-SR4 Network

Mellanox® MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant. The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd. The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds: -Temperature with warning/alarm -Supply voltage with warning/alarm -Laser bias current -Transmitted optical power with warning/alarm -Received optical power with warning/alarm Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability. Manufacturer: NVIDIA Corporation. Manufacturer Part Number: MMA1B00C100D. Brand Name: Mellanox. Product Name: 100Gb/s QSFP28 Optical Transceiver. Product Type: QSFP28. [Technical Information] Application/Usage: Optical Network. Data Networking. [Interfaces/Ports] Total Number of Ports: 1. Connector Type: MPO. Interfaces/Ports Details: 1 x MPO 100GBase-SR4 Network. [Media & Performance] Media Type Supported: Optical Fiber. Fiber Mode Supported: Multi-mode. Ethernet Technology: 100 Gigabit Ethernet. Network Technology: 100GBase-SR4. [Physical Characteristics] Form Factor: Hot-pluggable. [Miscellaneous] Environmentally Friendly: Yes. Country of Origin: Israel.
