Type

D-8988

Size

100*91.5mm(front panel)

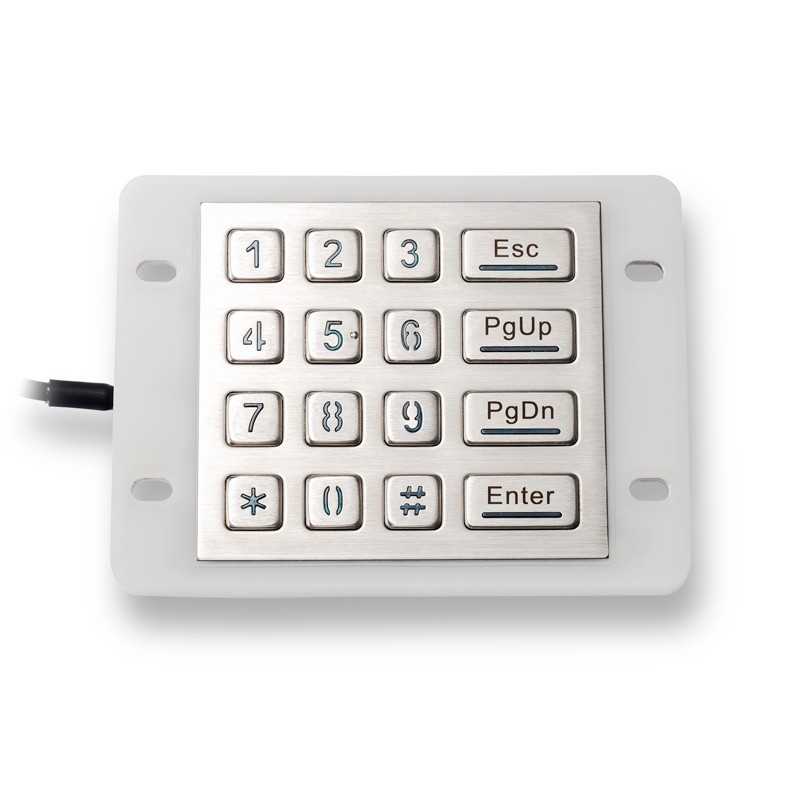

MAIN FEATURE

Specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, IP68protect level, it has good performance of water proof, dust proof and vandalism proof, which make it a good choice for public use or harsh environment.

gold-on-gold dome on gold PCB contact

Matrix output or standard USB/PS2 output with controller

Reinforced PCB to guarantee the mechanical stability

Laser engraved characters for excellent durable

Any language is available and it’s free of additional charge

SPECIFICATION

Number of Keys: 16keys

Material: stainless steel (front panel) and alumina alloy (scaleboard)

Key travel:0.4mm

keyswitch lifespan: more than 10 million of operations

Keyswitch technology: gold on gold metal dome and rugged PCB

Mounting style: rack mount

G.W.: 0.4KGs

Dimensions: 100mm x 91.5mm (front panel)

Supply Voltage: +5V DC +/-5%

Communication interface: USB , Matrix port (optional)

Protection Level: IP68

Operating temperature:-40 ~+70

Storage temperature: -50 ~+80

CE FCC RoHS Compliant

OS Linux, Mac,etc

MTBF >50000H

MTTR <30min

APPLICATION

This Keyboard is mainly use for unattended internet terminals and information kiosks in public areas, self-service terminals in bank, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones, industrial console,Mining Industry Keyboard,public information kiosk,Pump test bench,Fuel data-key="89" data-slate-type="p" 0, style="font-family: Arial, Helvetica; line-height: inherit; color: rgb(0, 0, 0); border: 0px; margin: 0px; padding: 0px; box-sizing: content-box;">All language and layout is available.

There are other size of keyboards,you can leave me a message for more information.

we accept customization of products to suit your requirements.

NOTICE：

1.Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.

2.The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

DAVO ELECTRON After Service

1.DAVO offers free replacements for complete products or parts within 90 days.
2. Purchases within one year, DAVOprovides free repairs.
3. For products outside the warranty period, maintenance fees can be charged according tocertain standards through negotiation.

A. Scope:
a. Hardware damage during shipment.
b. Hardware damage under normal using according to standard operation criterion of DAVO.
c. Other defects authorized by DAVO.

B. Requirements:
a. Model No. P.O. No. PI No. , Shipment date etc.
b. Provide a detailed description of any defects and cause, including a video show，literal description and picture illustrations.
c. The Original DAVO packaging if possible.
