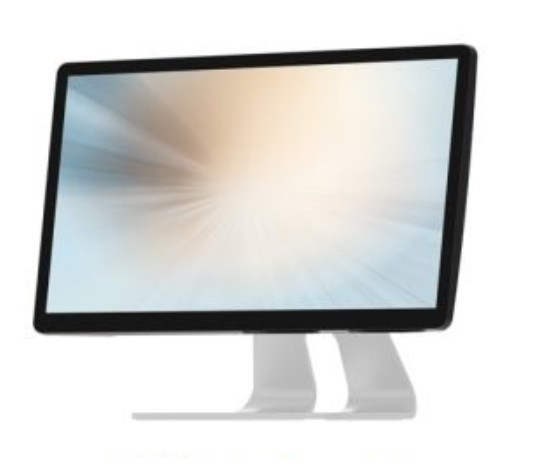

MicroTouch OF-150P-A1, 10 touch multi-touch PCap monitor (stand optional)

Multi-Touch Projected Capacitive touch technology made simple.

ProcessorRockchip RK-3399, Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
Android Operating System
System Memory4GB LPDDR4Storage Device 32GB eMMC
Wi-Fi & Bluetooth802.11 a/b/g/---c, Bluetooth 4.0 (Support BLE)Size15" TFT LCDMaximum Resolution1920 x 1080
Aspect Ratio 16:9
Contrast Ratio 1000:1
Brightness450 nits (No Touch), 405 nits (PCAP)
View Angle H:178˚, V:178˚
Display Surface Projective Capacitive (PCAP)Touch LCD DisplayTouch Screen Projected Capacitive
Touch Points 10
Touch Screen Interface USB-HID (Type B)Serial Port 1 x RJ11USB Port1 x USB 3.0 Type A, 1 x USB 3.0 Type C
LAN Port1 x RJ45 Giga LANVideo Port1 x HDMI
Power Input 1 x DC in 12V/4.16A 2 pin
Power Supply 50W (12V, 4.16A) External Power AdaptorCompliance Front Panel IP65 Compliant, Rear IPX1
Dimensions (W x H x D) 455 mm x 315 mm x 150 mm
Net Weight (kg) 1.805 kg
Gross Weight (kg) 2.8 kgVESA 100 x 100Safety CE, FCC, LVD, UL, RoHS
Operating Temperature0°C ~ 40°C, 20% ~ 80% RH. Non-CondensingStorage Temperature-20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing
Optional Peripheral
MSR MSR-156-A1 (Sold Separately)Camera CAM-000-A1 (Sold Separately)15.6" Slim Stand SS-156-A1 (Sold Separately)
