Specifications

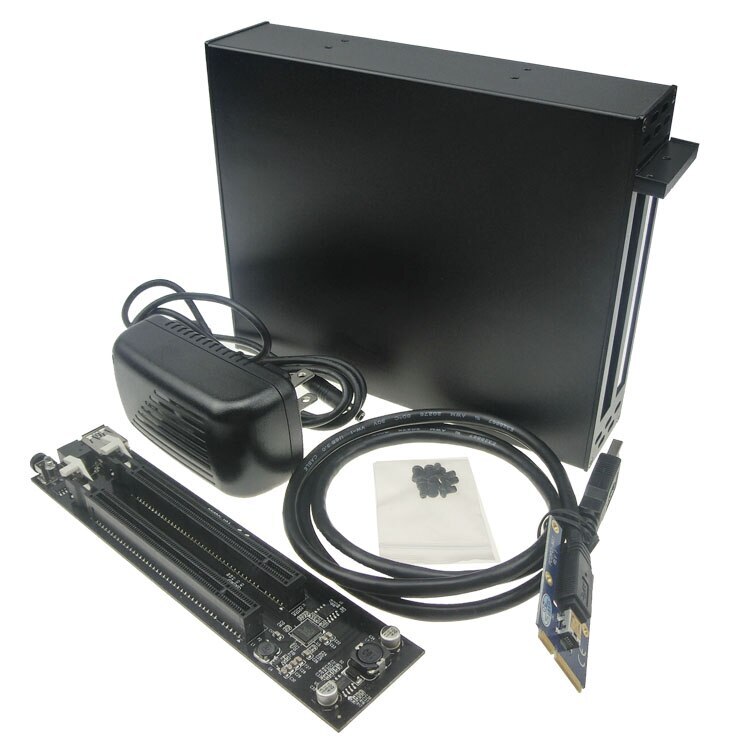

mini PCIe to Dual PCIe slots adapter

Optical drive bayas installation

Aluminium alloy enclosure

Dimension:192*147*42mm

This adapter was designed to convert the Mini PCIe bus into two PCI-e . It allows you to connect up to 2 PCI-E expansion boards to the motherboard Mini PCIe connector (supports full-size/half-size).

General Features

Compliant with PCI Express Specification 1.0a

Suit for PCIE X1 X4 X8 X16 card(pcie 1x speed)

Compatible with full-size and half-size Mini PCIe connector

DC power adapter for power input

The power (12V, 5V, 3.3V, -12V) for each PCI expansion board is supplied via a 12V/2A power adapter attached.

No drivers required

Optical drive bay installation

Aluminium alloy enclosure deminsion:192*147*42mm

OS support

Windows 8(32bit/64bit) Windows 7 (32bit/64bit) Windows Vista (32bit/64bit) Windows XP (32bit/64bit) Windows Server 2003 (32bit) Windows Server 2008 (32bit/64bit) Mac OS 10.4+ Red Hat Linux 2.6x+ Solaris
