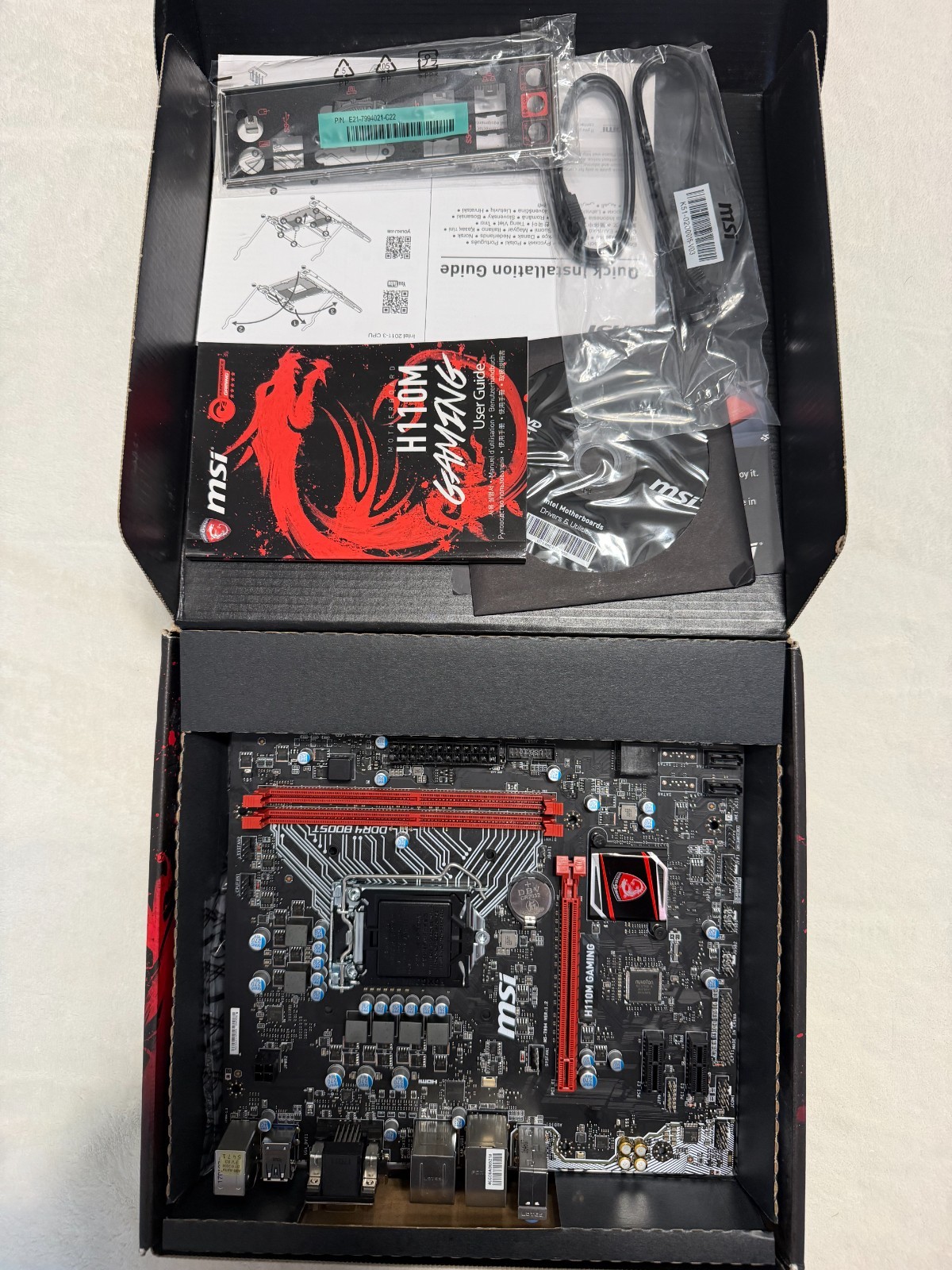

Motherboard MSI H110M Gaming.
Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2133 MHz
Dual channel memory architecture
1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots
1x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
- Support for HDMI™ 1.4 version.
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1x VGA port, supports a maximum resolution of 1920x1200@60Hz
Intel® H110 Chipset
4 x SATA 6Gb/s ports6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Serial port connector
1x Parallel port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
