NEW Arista DCS-7308 8-Slot Switch style="">

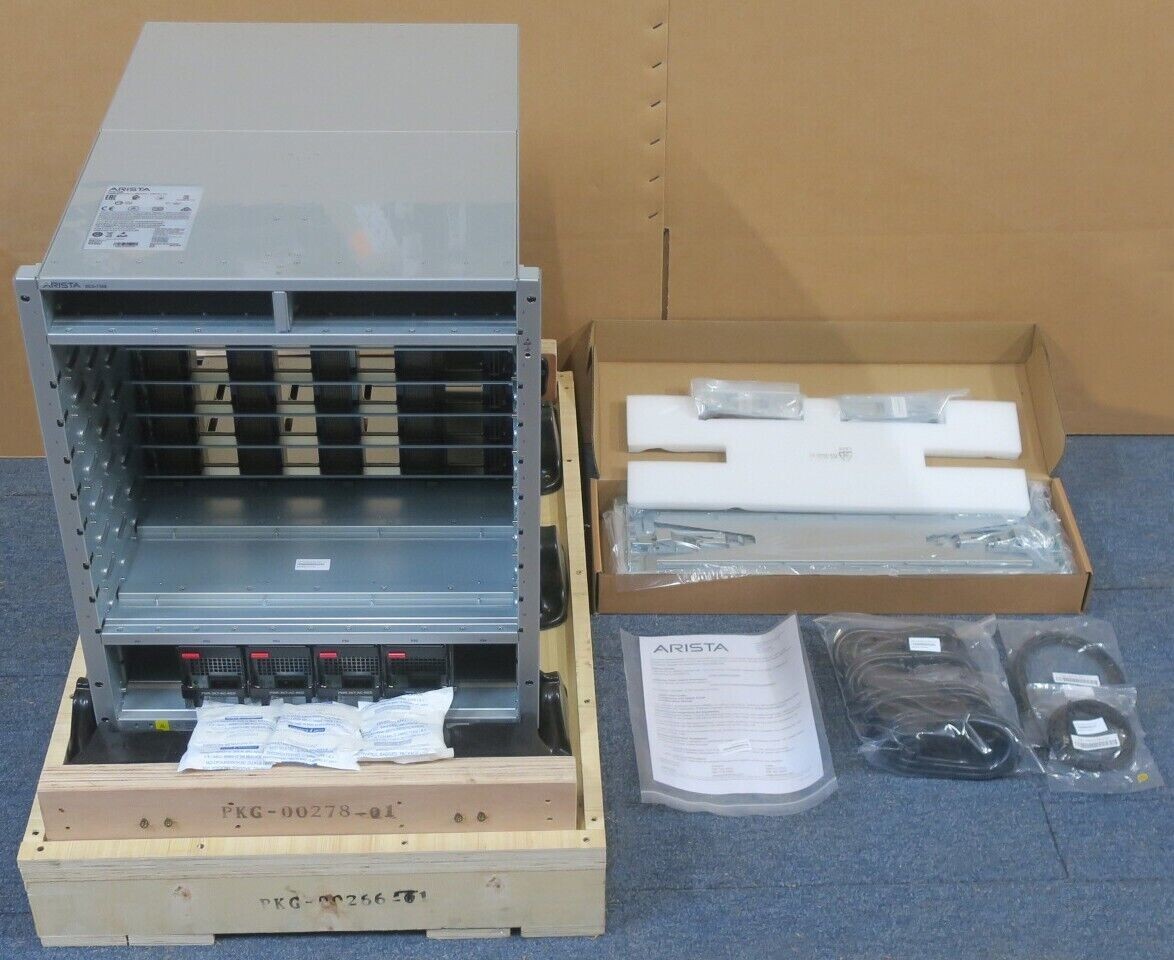

1 x NEW Arista DCS-7308 8-Slot Switch Chassis With:

• 4 x 3000W Power Supply UnitPWR-3KT-AC-RED

4 x Male - Female C20 - C19 Extension Power Cable CBL-00190-01

1 x Serial Cable CBL-00002

1 x Cat5E Ethernet Cable CBL-00100

1 x Getting Started Document PDOC-00036-12

1 x Set Of RailsKIT-7308-4PR

Manufacturer Overview:
The Arista 7300 Series modular switches are part of the Arista portfolio of datacenter switches. The 7300 Series with 7300X Series line cards increase flexibility andscalability for data center switches supporting both leaf and spine and SplineTMapplications for collapsed end of row and aggregation. The 7300X systems share acommon architecture with the Arista 7050X and 7250X Series and offer a choice oftwo modular systems, a 4-slot and 8-slot that support advanced features fornetwork monitoring, precision timing and network virtualization to deliver scalablehigh performance for software defined cloud networking.
Increased adoption of 10 Gigabit Ethernet servers and applications requiring higherbandwidth is driving rapid adoption of 10 and 40 Gigabit Ethernet switching. The7300 Series support a choice of high density line cards in combination with wirespeed layer 2/3/4 performance that provides a flexible combination of 100M, 1G,10G and 40G switching to design large leaf and spine networks for scale-out ofeast-west traffic patterns with low latency and power efficiency.
With reversible front-to-rear or rear-to-front airflow, redundant and hot swappablesupervisor, power, fabric and cooling modules the system is purpose built for datacenters. The 7300 Series is energy efficient with typical power consumption ofunder 3 watts per 10GbE port for a fully loaded chassis. All of these attributes makethe Arista 7300 Series an ideal platform for building reliable, low latency, resilientand scalable data center networks. Combined with Arista EOS the 7300 Seriesdelivers advanced features for big data, cloud, virtualized and traditional designs.
Specification:
Chassis -DCS-7308

• Supervisor slots: 2
• Linecard Slots: 8
• Fabric Module Slots: 4
• Power Supply Slots: 6
• Fan Modules: 8
• Physical Dimensions (HxWxD):
• 22.53” x 17.36” x 23.74”
• (57.2 x 44.1 x 60.3cm)
• Rack Space: 13RU
• Weight (Chassis only): 110 lbs (49.9 kg)
• Weight (Fully con"gured system): 299 lbs (135.6 kg)
• Maximum 10GbE Port Density: 1,024 Ports
• Maximum 40GbE Port Density: 256 Ports
• Maximum Throughput / Packets per Second: 20 Tbps / 15 Bpps
• Maximum Power Consumption: 6000W

Power Supply

• 3000W AC Titanium
• Model Numbers: PWR-3KT-AC-RED
• Input Voltage: 200 - 240V, 16A
• Input Frequency: 50/60 Hz, single phase AC DC
• Output Power: 3000W
• Input Connector: IEC 320 C19
• Efficiency (Typical): Over 94% Titanium
• Size (WxHxD): 2.75” x 4.13” x 11.65” (7.0 x 10.5 x 29.6cm)
• Weight: 5.5 lbs (2.49 kg)
• Chassis Support: DCS-7308 and DCS-7304
