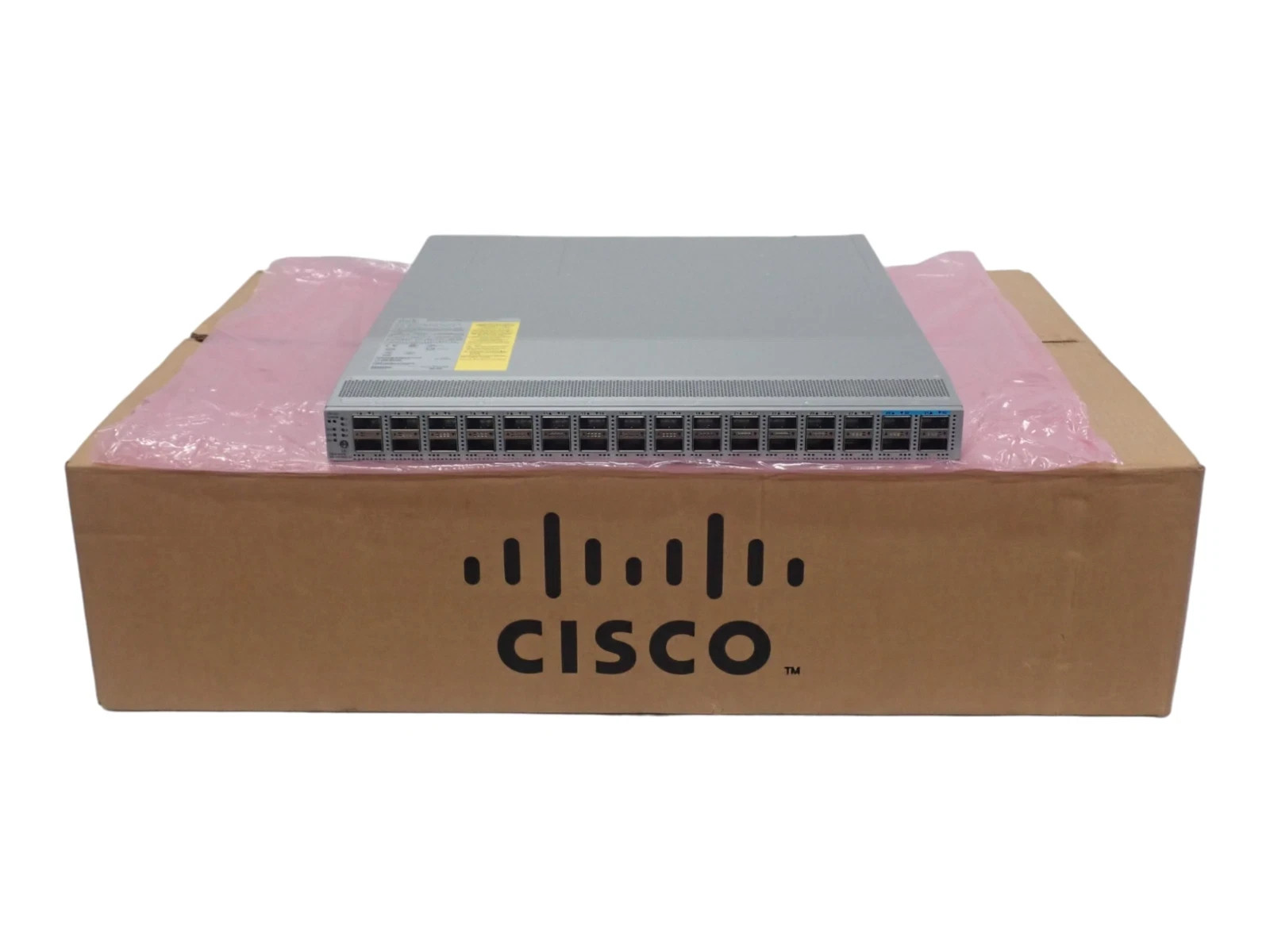

NEW Cisco N9K-C93180LC-EX Nexus 9300 28x 40G QSFP+ + 4x 100G QSFP28 1U - Open Box2 Years Warranty IncludedPort Side IntakeNETWORK_SERVICES_PKG & LAN_ENTERPRISE_SERVICES_PKG Included
Included
- 1 xNEW Cisco N9K-C93180LC-EX Nexus 9300 32-Port Switch
- 4 x Cisco Nexus NXA-FAN-30CFM-BFan, 30CFM,Port-side Intake
- 2 x Cisco Nexus NXA-PAC-500W-PI 500W AC PS,Port-side Intake
Description:
The Cisco Nexus 9300, N9K-C93180LC-EX, is a high-performance data center switch ideal for large-scale enterprise networks. Providing 28x 40GbE QSFP+ + 4x 100GbE QSFP28ports, it delivers exceptional scalability, enhanced speed, and robust connectivity. Targeted at data-intensive applications, it's perfect for cloud environments, enterprise core, and distribution TypeNetwork SwitchPort Types40 QSFP+, 40G/100G QSFP28Total Ports3240G QSFP+ Ports2840G/100G QSFP28 Ports4Switching Capacity3.6 TbpsSupported ProtocolsL2/L3, VXLAN, OTV, and moreManagementCLI, SNMP, SyslogOperating SystemNX-OSL2 MulticastYesL3 MulticastYesDimensions (HxWxD)1.72 x 17.3 x 22.5 inchesMax Power Consumption500WRedundant PowerYesCoolingHot-swappable fan traysEnvironmental Operating Temperature32°F to 104°F (0°C to 40°C)
Boot Log:switch# show versionCisco Nexus Operating System (NX-OS) SoftwareTAC support:Copyright (C) 2002-2017, Cisco and/or its affiliates.All rights reserved.The copyrights to certain works contained in this software areowned by other third parties and used and distributed under their ownlicenses, such as open source. This software is provided "as is," and unlessotherwise stated, there is no warranty, express or implied, including but notlimited to warranties of merchantability and fitness for a particular purpose.Certain components of this software are licensed underthe GNU General Public License (GPL) version 2.0 orGNU General Public License (GPL) version 3.0 or the GNULesser General Public License (LGPL) Version 2.1 orLesser General Public License (LGPL) Version 2.0.
Software BIOS: version 05.20 NXOS: version 7.0(3)I6(1) BIOS compile time: 04/12/2017 NXOS image file is: bootflash:///nxos.7.0.3.I6.1.bin NXOS compile time: 5/16/2017 22:00:00 [05/17/2017 06:21:28]Hardware cisco Nexus9000 C93180LC-EX Chassis Intel(R) Xeon(R) CPU D-1526 @ 1.80GHz with 24571896 kB of memory. Processor Board ID FDO22202KEJ
Device name: switch bootflash: 53298520 kBKernel uptime is 0 day(s), 0 hour(s), 8 minute(s), 19 second(s)
Last reset Reason: Unknown System version: 7.0(3)I6(1) Service:
plugin Core Plugin, Ethernet Plugin
Active Package(s):
switch# show inventoryNAME: "Chassis", DESCR: "Nexus9000 C93180LC-EX Chassis"PID: N9K-C93180LC-EX , VID: V03 , SN: FDO22202KEJ
NAME: "Slot 1", DESCR: "28x40G + 4x40/100G Ethernet Module"PID: N9K-C93180LC-EX , VID: V03 , SN: FDO22202KEJ
NAME: "Power Supply 1", DESCR: "Nexus9000 C93180LC-EX Chassis Power Supply"PID: NXA-PAC-500W-PI , VID: V01 , SN: DCC221661C9
NAME: "Power Supply 2", DESCR: "Nexus9000 C93180LC-EX Chassis Power Supply"PID: NXA-PAC-500W-PI , VID: V01 , SN: DCC221262HH
NAME: "Fan 1", DESCR: "Nexus9000 C93180LC-EX Chassis Fan Module"PID: NXA-FAN-30CFM-B , VID: V01 , SN: N/A
NAME: "Fan 2", DESCR: "Nexus9000 C93180LC-EX Chassis Fan Module"PID: NXA-FAN-30CFM-B , VID: V01 , SN: N/A
NAME: "Fan 3", DESCR: "Nexus9000 C93180LC-EX Chassis Fan Module"PID: NXA-FAN-30CFM-B , VID: V01 , SN: N/A
NAME: "Fan 4", DESCR: "Nexus9000 C93180LC-EX Chassis Fan Module"PID: NXA-FAN-30CFM-B , VID: V01 , SN: N/A
switch# show license usageFeature Ins Lic Status Expiry Date Comments No - Unused -TP_SERVICES_PKG No - Unused -NETWORK_SERVICES_PKG Yes - Unused Never -LAN_ENTERPRISE_SERVICES_PKG Yes - Unused Never show environment Model Hw Direction NXA-FAN-30CFM-B -- front-to-back OkFan2(sys_fan2) NXA-FAN-30CFM-B -- front-to-back OkFan3(sys_fan3) NXA-FAN-30CFM-B -- front-to-back OkFan4(sys_fan4) NXA-FAN-30CFM-B -- front-to-back OkFan_in_PS1 -- -- front-to-back OkFan_in_PS2 -- -- front-to-back OkFan Zone Speed: Zone 1: 0xbfFan Air Filter : NotSupported
switch# show environment powerPower Supply:Voltage: 12 VoltsPower Actual Actual TotalSupply Model Output Input Capacity Status (Watts ) (Watts ) (Watts )------- ------------------- ---------- ---------- ---------- --------------1 NXA-PAC-500W-PI 90 W 105 W 500 W Ok2 NXA-PAC-500W-PI 86 W 103 W 500 W OkPower Usage Summary:--------------------Power Supply redundancy mode (configured) PS-RedundantPower Supply redundancy mode (operational) PS-Redundant
Total Power Capacity (based on configured mode) 500.00 WTotal Grid-A (first half of PS slots) Power Capacity 500.00 WTotal Grid-B (second half of PS slots) Power Capacity 500.00 WTotal Power of all Inputs (cumulative) 1000.00 WTotal Power Output (actual draw) 177.00 WTotal Power Input (actual draw) 209.00 WTotal Power Allocated (budget) N/ATotal Power Available for additional modules N/A
switch# show environment Sensor MajorThresh MinorThres CurTemp Status (Celsius) (Celsius) FRONT 70 42 15 Ok1 BACK 80 70 20 Ok1 CPU 90 80 25 Ok1 Sugarbowl 110 90 35 Ok
