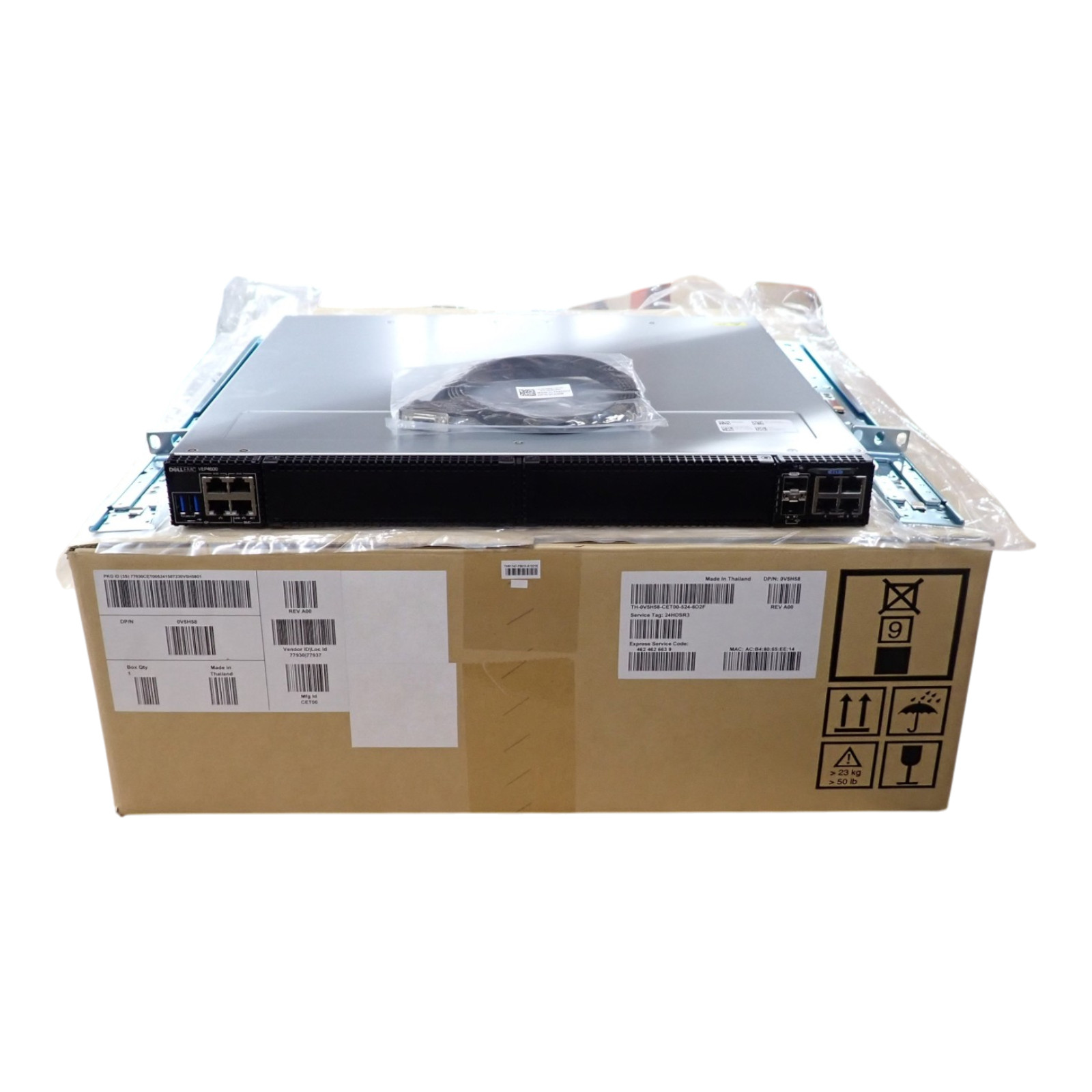

ITinStock Template SERVERS | NETWORKING | STORAGE | UPS | COMPONENTS 3 Year Warranty Fast Worldwide Delivery Trusted Seller In Stock & Ready to Ship NEW Dell VEP4600 Virtual Edge Platform 4600 4-Core 16GB RAM 1U VNF - No OS What's Included 1 xNewDell VEP4600 SWTBOX,4C,16G,NO-OSVirtual Edge Platform - New Open Box 1 x Intel Xeon D-2100 4-Core Processor 1 x 16GB DDR4 Memory (16GB Total) 1 x 240GB M.2 Solid State Drive SSD 4 x Fan Modules (Front to Back AirFlow) 7CRC9 1 x 495W Hot-Swap Redundant Power Supplies T41F3 1 x Console Cable Specification Delivery Returns Overview: The VEP4600 is a Dell Networking Platform Purpose-Built for Next-Generation Access Deployments. The VEP4600 is a Universal CPE (uCPE) and is Ideal for Hosting SD-WAN and Other VNFs (Virtual Network Functions) Like Routing, Firewall or Deep-Packet Inspection. It Offers Hosted Virtualized Network Functionality, with Applicability for the SP Edge and Enterprise Branch. The VEP4600 is 1 RU Sized, Using the Latest Intel Xeon D-2100 x86-Based Processor Which is Optimized for Networking. Dell Technologies is the First to Market with Xeon-D for SD-WAN. The VEP4600 Will Provide High Performance and the Necessary Headroom for Hosting VNF Services, Using 3 Design Principles: - Purpose-Built
- Future-Ready
- Validated and Core Architecture
- CPU: Intel Xeon D-2100 4-Core Processor
- Memory: 16GB DDR4 - 1 x 16GB Module (4 DIMM Slots Up to 128GB, 3 Slots Open)
- Storage Option: 240GB M.2 SATA SSD - 1 x 240GB Drive (2 M.2 Slots Up to 1.92TB)
- TPM: 2.0
- QAT: Yes
Connectivity and Interface Ports - Networking Ports:
- Management Ports: 2x - 10/100/1000Base-T: One for CPU and One for BMC
- USB Ports:
- 2x - USB Type A Receptacle (Female) Ports Expressly Supporting USB 3.0
- 1x – Micro USB Type B Receptacle (Female) Port, Available for Console Port
- Console Ports: 2x – Serial: One for CPU and One for BMC
- Expansion Slots: 2 x Expansion Slots. Expansion Card Options: 4X10Gb DA/SFP+, 2X10 Gb DA/SFP+ with 2X 1Gb, 4X1Gb
Management and Software Validation - Out of Band Management: BMC IPMI 2.0 Compliant
- BMC: IPMI 2.0 Compliant
- Software Validation: Open Platform Deployment
- Operating System: No Operating System Installed (Bare Metal Hardware - Supports VMware ESXi, Ubuntu Linux, Red Hat, CentOS, Versa OS, and ADVA Connector)
- Hypervisors: Architecture Supports ESXi, KVM Virtualization
Power, Cooling, and Chassis Dimensions - Power Supplies: 1 x 495W Hot-Swap Power Supply Unit (80Plus Platinum, Second Slot Available for Redundant Usage) Part T41F3
- Fans: 4 x Hot-Swap Redundant Fan Modules (Maximum 107.2 CFM Airflow Capacity) Part 7CRC9
- Airflow: I/O Side to PSU Side
- Power Input AC: 100 to 240 VAC, 50/60 Hz
- Typical Current Draw Per Platform – AC: 110VAC: 1.5A, 240VAC: 0.7A
- Power Consumption:
- Typical: 4-Fan 4-Core CPU: 170W
- Max: 4-Fan 4-Core CPU: 230W
- Dimensions:
- Width: 17.1" (43.4cm)
- Depth: 15" (38.1cm)
- Height: 1.75" (4.45cm)
Purpose-Built uCPE Platform for Open and Disaggregated Networking
The Dell Networking Virtual Edge Platform is Optimized to Host VNFs (Virtual Network Functions) and is Ideal for SD-WAN. This Single-Socket, 1RU Platform is Perfect for the Service Provider Edge or Enterprise Branch. - First to Market with Networking Optimized Intel Xeon D-2100 x86-Based Processor
- Accelerates Packet Processing with Intel® Data Plane Development Kit (DPDK)
- Accelerates Security Encryption with Intel® QuickAssist Technology (QAT)
- Supports KVM and ESXi Hypervisors and Native Linux
- I/O Side to PSU Side Airflow, Front-Facing Ports, and Redundant Power Option
- Short-Depth Chassis Design Excellent for Telco Use Cases
Future-Ready
The VEP4600 is Designed to be Open and Ready to Add More VNF Services or Expand Capabilities - Available Expansion Cards to Add Additional 1G or 10G Interface
- Ready to Add Multiple VNFs, Without a Fork-Lift Upgrade
- 4 DIMM Slots, 2 M.2 SSD on the Baseboard and 2 Expansion Slots
- Two 10G SFP+ Network Ports
- Out of Band Management Ports
Validated Choice
Dell is Adding Substantial Value to the VEP4600, with a Concept We Call Validated Choice. Choice is Value Added by Formally Partnering with Leading SD-WAN Leading Vendors: Versa and Adva. Validation is Value-Added with Our Joint Testing or Orderable SKUs Directly from Dell Technologies. Moreover, Validation is Not Just Product Validation but Also Supply Chain Validation. Customers Will be Able to Take Advantage of the Dell Technologies Global Supply Chain. Validation Accelerates Time to Revenue, and Reduces Deployment Risks. Delivery Times:
