Searching for "Acer e-machine replace power installation"This power is also replaced for Gateway, Liteon, Delton, Chicony and etc...
Thank you and sorry for any Genuine 300Watts Power Supply (Black Coating)

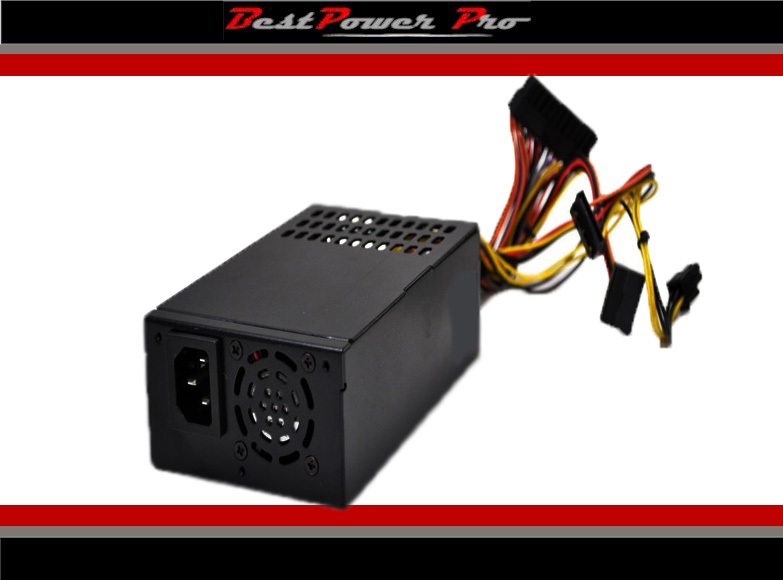

Support and Replace - Liteon Delta Chicony Power Supply for AcerEmachines And Gateway Computers.***SpecialDesigned Power Supply for Acer Aspire Series***
The Acer Aspire Series power supplies are very odd in size.
Finding one can be quite a task since the power supply is no longermanufactured.
However, this is the reason we bring it in. We have manufactured for you this 250 watt replacement for your old DPS-220UB A or PS-5221-06 power supply. This replacement power supply is80 watts stronger than your original Brand New by BestPowerPro
Model: BPP-ACAVLO-300
Wattage:250 Watt (Workperfect on lower wattage power supply system)
Type: ACTIVE PFC
The preferable type of PFCis Active Power Factor Correction (Active PFC) since it provides more efficientpower frequency. Because Active PFC uses a circuit to correct power factor,Active PFC is able to generate a theoretical power factor of over 95%. ActivePower Factor Correction also markedly diminishes total harmonics, automaticallycorrects for AC input voltage, and is capable of a full range of input voltage.Since Active PFC is the more complex method of Power Factor Correction, it ismore expensive to produce an Active PFC power supply.
Frequency: 60 / 50 Hz
Input Voltage: 88/264 Volts AC
Dimensions: ( W x H x L ) 90mmx52mmx150mm
Weight: 4.0 Lbs
Fans: With its thermal fan speed control it will detect the amount of heatgenerated by the computer and spin accordingly. Using this controller todetect the heat levels of the PSU it will adjust the fan speed accordingly,with this feature built in, worrying about the heat level of a PSU becomesalmost non-existent
1 x internal 40mm SILENT auto speed control fanfor maximum heat dissipation.
Connector included: ATX Connector 24 (20+4) PinX 1, P4-12V 4-Pin X 1, SATA 15-Pin(Right Angle) X 2
Temperature Range: Operating: 0°C ~ +50°C on FullLoad.
Storage & Shipping: -20°C ~ +80°C
Humidity: 5 ~ 90% on Operating, 5 ~ 95% on Storage
Dielectric Withstand: Primary Frame Ground 1800V AC for 1 Second
MTBF: >100,000 Hours on Maximum Load at +25°C
Rise time: Less than 20ms
Hold-up Time: 17ms Minimum at Nominal Input Voltage
It is compatible with the following models.Acer Aspire X1420/ Acer Aspire X1420G/ AcerAspire X1920/ Acer Aspire X3400G/ Acer Aspire Z3101/ AcerAspire Z3730/Acer Aspire Z3731/ Acer Aspire Z3751/ AcerAspire Z3761/ Acer Aspire Z5101/ Acer Aspire Z5751/ AcerAspire Z5760/ Acer Aspire Z5761/ Acer Aspire X3810/ AcerAspire X5810/ Acer Aspire X1700/ Acer Aspire X1200
Acer Aspire X1301/ Acer Aspire X1400/ Acer Aspire X1800/Acer Aspire X1900/ Acer Aspire X3100/ Acer Aspire X3200/Acer Aspire X3300
Acer Aspire X3400/ Acer Aspire X3812x/ Acer Aspire X3910/Acer Aspire X3950/ Acer Aspire Z3100
Acer Veriton X275/ AcerVeriton X480G/ Acer Veriton 3500/ Acer Veriton 3500G/ AcerVeriton X270
Acer AC35357/ Acer Power FH
Acer PY.22009.003/ Acer PY.22009.006/Acer PY.2200B.001
Chicony CPB09-D220R
Delta DPS-220UB A
Emachine EL1200/Emachine EL1210/EmachineEL1333/Emachine EL1333G/Emachine EL1352/EmachineEL1352G/Emachine EL1358
Emachine EL1358G/Emachine EL1850G/Emachine EL1852/EmachineEL1852G/Emachine EL1352-07e/Emachine EL1300/EmachineEL1300G
Emachine EL1321/Emachine EL1331/Emachine EL1331G/EmachineEL1833/Emachine EL1850/Emachine L1210
Gateway SX2851/Gateway One Z3760/GatewayOne ZX4931/Gateway One ZX4951/Gateway One ZX6951/GatewaySX2855
Gateway L1200/Gateway EL1600/Gateway L1700/GatewaySX2800-01/Gateway SX2800-03/Gateway SX2300/GatewaySX2310
Gateway SX2311/Gateway SX2800/Gateway SX2801/GatewaySX2802/Gateway SX2840/Gateway SX2841/GatewaySX2850
Liteon PS-5221-9/Liteon PS-5221-06
