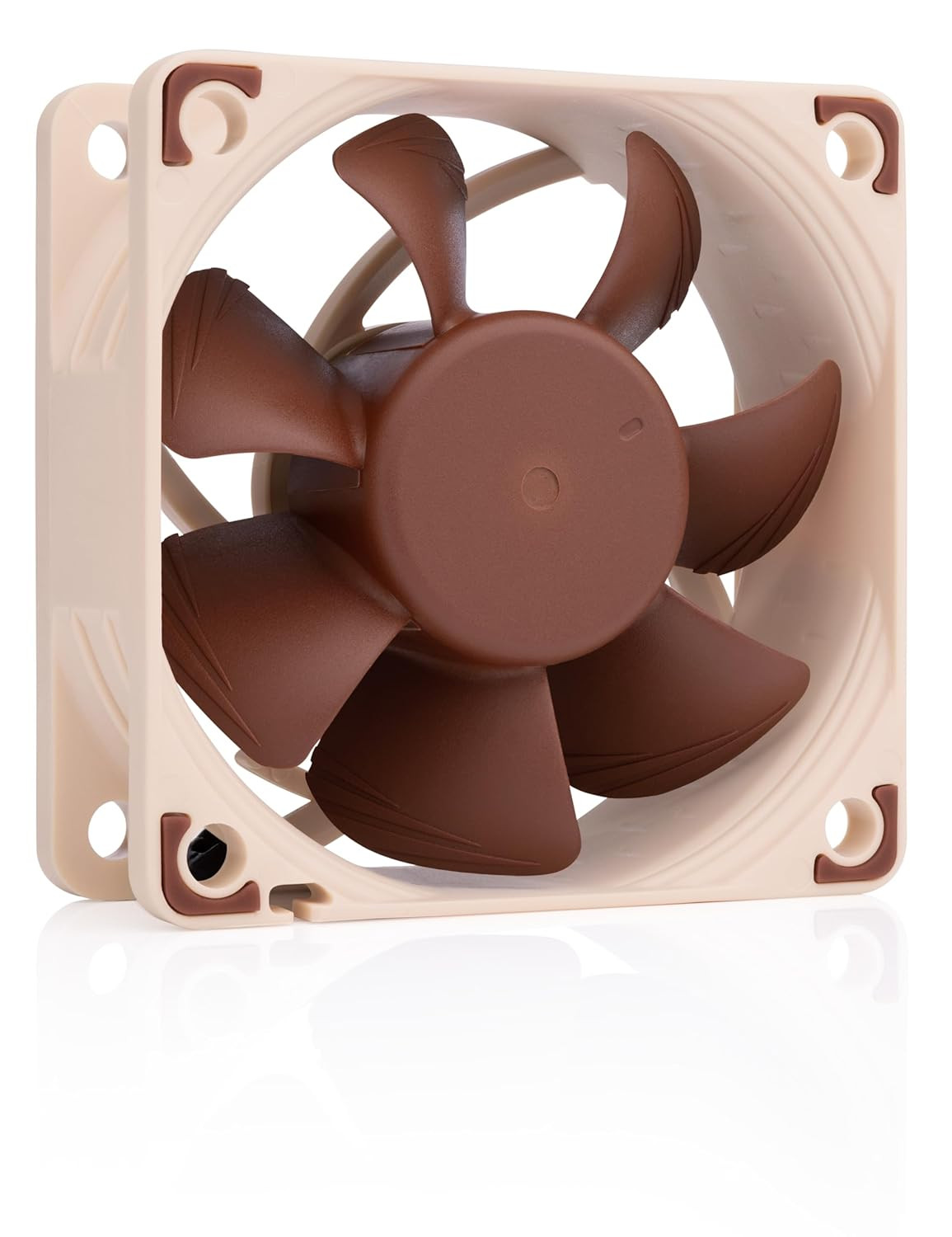

Nf-A6X25 5V PWM, High-Performance Quiet Fan 60Mm

Product description

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO frame, the NF-A6x25 5V PWM is a PWM-enabled 5V variant of Noctua’s highly optimised, premium-quality quiet 60x25mm fan. The custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive technology and Noctua’s reference-class SSO2 bearing ensure superb running smoothness and excellent long-term stability. Topped off with modular cabling and the OmniJoin Adaptor Set, the NF-A6x25 5V PWM is a premium choice for demanding 5V applications that require PWM control.

5V PWM version

Many devices, such as network or storage solutions, use 5 volt 60mm fans with PWM speed control. With the same operating voltage, PWM support and the included OmniJoin adaptor set that makes it compatible with proprietary fan headers, the NF-A6x25 5V PWM is ideal for replacing noisy or broken 5V 60mm fans with PWM.

Please Note: Being a 5V fan, the NF-A6x25 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.

Reduced motor hub size

Thanks to its streamlined, compact motor design, the NF-A6x25's motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25's superior airflow and pressure performance.

SSO2 bearing

The NF-A6x25 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Flow Acceleration Channels

The NF-A6x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

Scope of Delivery

• OmniJoin Adaptor Set
• 30cm extension cable
• 4 anti-vibration mounts
• 4 fan screws

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.8 out of 5 stars 2,722 4.8 out of 5 stars 1,469 4.8 out of 5 stars 127 4.8 out of 5 stars 132 Price $16.95$16.95 $16.95$16.95 $16.95$16.95 $16.95$16.95 Connector 4-pin PWM 3-pin 4-pin PWM 3-pin Voltage 12V 12V 5V 5V RPM Max: 3000 / Min: 550 3000 Max: 3000 / Min: 650 3000 RPM with L.N.A. 2300 2400 - no data - no data RPM with U.L.N.A. - no data 1600 - no data - no data Acoustical Noise 19,3 dB(A) 19,3 dB(A) 19,3 dB(A) 19,3 dB(A) Acoustical Noise with L.N.A. 13,7 dB(A 14,5 dB(A) - no data - no data Acoustical Noise with U.L.N.A. - no data 8,2 dB(A) - no data - no data Size 60x60x25 mm 60x60x25 mm 60x60x25 mm 60x60x25 mm

• Premium quiet fan, 60x60x25 mm, 5V, 4-pin PWM, max. 3000 RPM, max. 19.3 dB(A), >150,000 h MTTF
• Award-winning 60x25mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
• 5V 4-pin PWM version (3000rpm maximum speed) with polarity protection for 5V applications with PWM speed control
• Ideal replacement for noisy or broken 5V 6cm fans in 3D printers, DVRs, NAS, switches, routers, other network and storage devices, etc.
• Includes anti-vibration mounts, fan screws, extension cable, y-cable and OmniJoin adaptor set for connection to proprietary fan headers

• Power Connector Type 4-Pin Voltage 5 volts Cooling Method Air Compatible Devices Desktop Noise Level 19.3 db Maximum Rotational Speed 3000 rpm Item Dimensions L x W x H 2.36"L x 0.98"W x 2.36"H Material Type Fibre-glass reinforced PBT Item Highlight function(f) {var { function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = if(seeMoreElement) { seeMoreElement.style.display = isTruncated ? '' : 'none'; } }) });})); High Airflow Low Noise, 5V, 25mm Thick Fan, for Ventilation and Electronics Cooling, With OmniJoin Adaptor, 3000rpm 4-Pin PWM See more Warranty Description 6 year manufacturer’s warranty Number of Packs 1 Number of Items 1 Unit Count 1 Count Item Weight 0.27 g Model NF-A6x25 5V PWM Part Number NF-A6x25 5V PWM Product Dimensions 2.36"L x 0.98"W x 2.36"H Material Fibre-glass reinforced PBT
