EXCLUDING RACK EARS

EXCLUDING NETWORK CABLES

See photos for actual item!

Price is for 1 item.

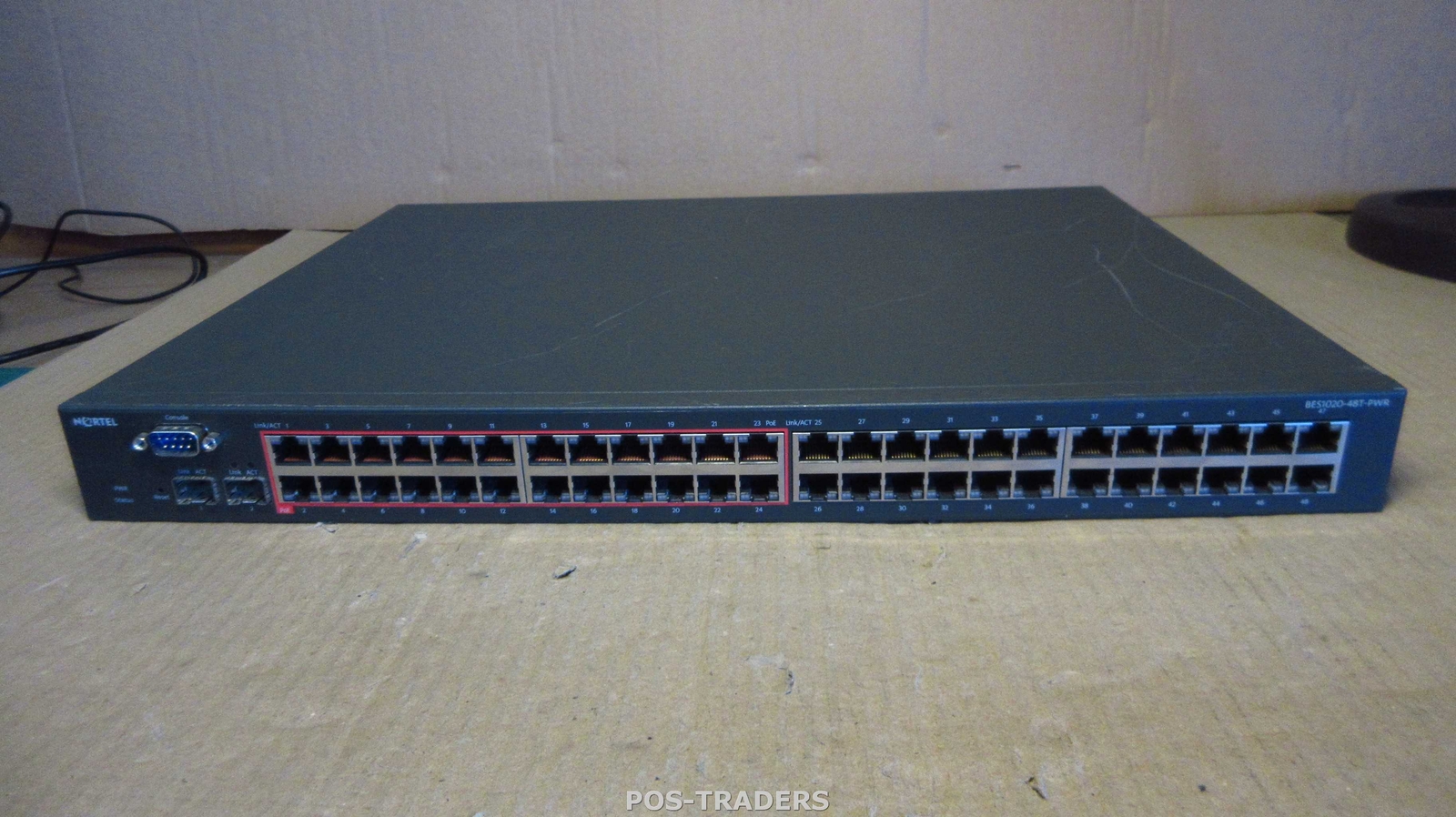

Nortel BES1020 48-Port 1 Gbps Ethernet SwitchKey Features:

• Easy to use -Simple to install and configure the switch, and simple to add end-user devices to the switch
• Simple to manage -managed byBusiness Element Manager (BEM)which is the common element manager for the entire
  Nortel SMBportfolio with a user-friendly interface and many powerfulOAMfeatures
• Built-in security -support of standards-based security features
• Optimized QoS -traffic classification based on the application nature, priority setting, and service agreement
• Convergence ready -support of VoIP, data, wireless, or other emerging applications on the same platform

Hardware features

• Switch fabric: 48 Gbps on 24 port, 96 Gbps on 48 port
• Forwarding rate: 93 Mpps on 24 port, 187 Mpps on 48 port
• 8MB flash memory
• 64MB DRAM
• 8,000 MAC address table size
• 4 hardware queues per port
• Auto-Negotiation
• Auto-MDI/MDIX
• Reset button

Layer 2 features

• 32 port-based VLANs(802.1D, 802.1Q)
• VLAN tagging(802.1Q)
• Link Aggregation (802.3ad): 6 aggregations, 4 ports per aggregation
• Spanning Tree/Rapid Spanning Tree (802.1D/802.1w)
• Network topology auto discovery (802.1AB)

Security

• Intrusion control
• Destination address filtering
• IP Access Control List(ACL)
• RADIUS-based authentication and authorization(RFC 2865 2866)

Traffic control

• Packet Classification based on user priority (802.1p) andDSCP markings(RFC 2474 2475)
• Weighted Round Robin or Strict Priority Queuing for queue servicing
• Broadcast/multicast storm control

Management

• Managed by Business Element Manager(BEM)
• SNMPV1, V2, V3
• RMON
• Default IP address
• IGMPsnooping V1, V2
• SNTP

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise

dewabit
