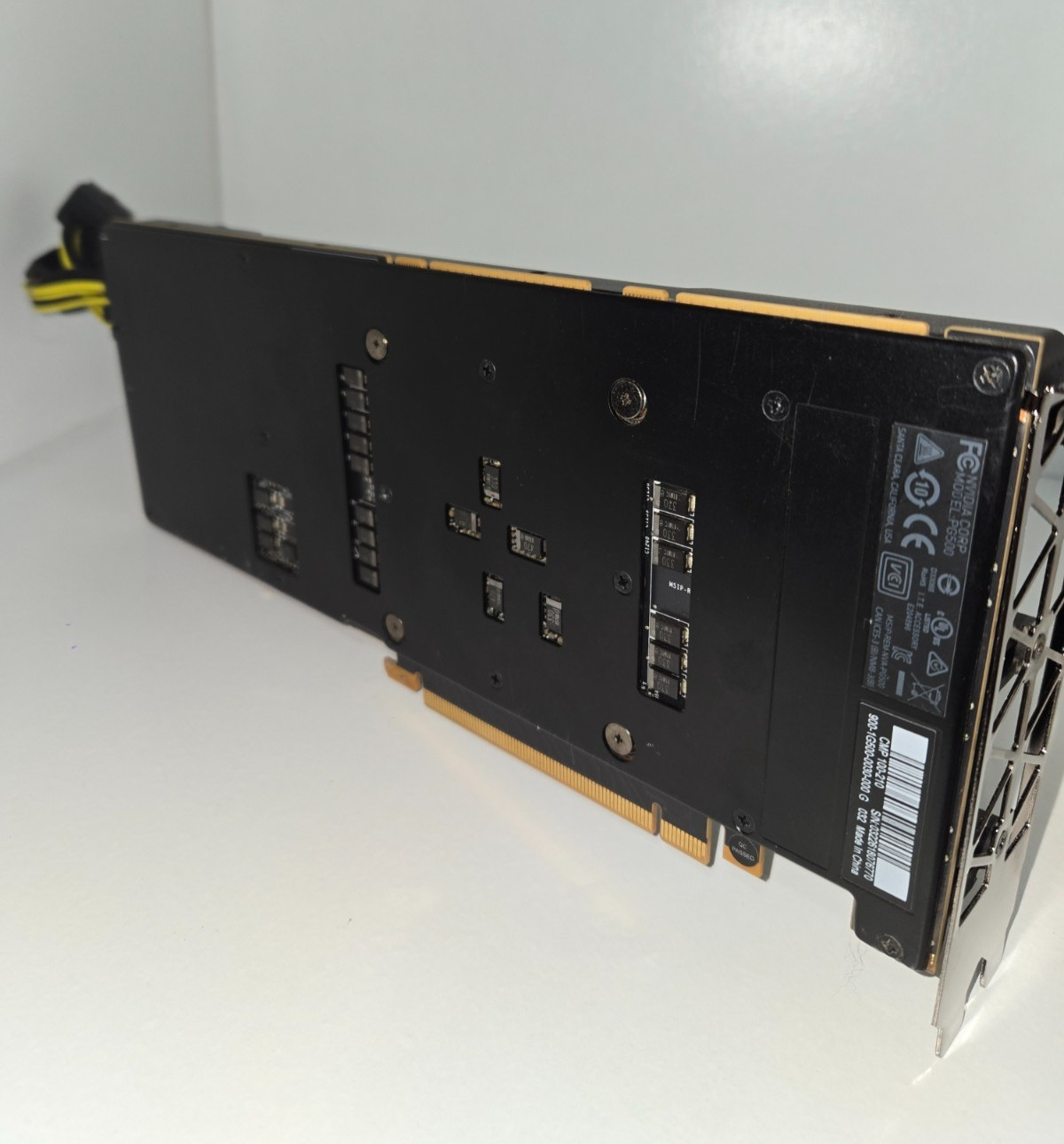

The Nvidia CMP 100-210 16G HBM2 Mining / AI GPU is a high-performance graphics card designed for mining cryptocurrency or running AI applications.
The CMP 100HX-210 is a data center GPU by NVIDIA, launched in 2020. Built on the 12 nm process, and based on the GV100 graphics processor, the GPU supports DirectX 12. The GV100 graphics processor is a huge chip with a die area of 815 mm² and 21.1 billion transistors. It features 5120 shading units, 320 texture mapping units, and 128 ROPs. Also included are 640 Tensor Cores which help improve the speed of machine learning applications. NVIDIA has paired 16 GB HBM2 memory with the CMP 100HX-210, which is connected using a 4096-bit memory interface. The GPU is operating at a frequency of 555 MHz, which can be boosted up to 1147 MHz, memory is running at 810 MHz (1620 Mbps effective).
Being a dual-slot card, the NVIDIA CMP 100HX-210 draws power from an 8-pin EPS power connector, with power draw rated at 250 W maximum. This card has no display connectivity, as it is not designed to have monitors connected to it. CMP 100HX-210 is connected to the rest of the system using a PCI-Express 1.0 x1 interface. The card's dimensions are 267 mm x 112 mm x 40 mm, and it features a dual-slot cooling solution.
