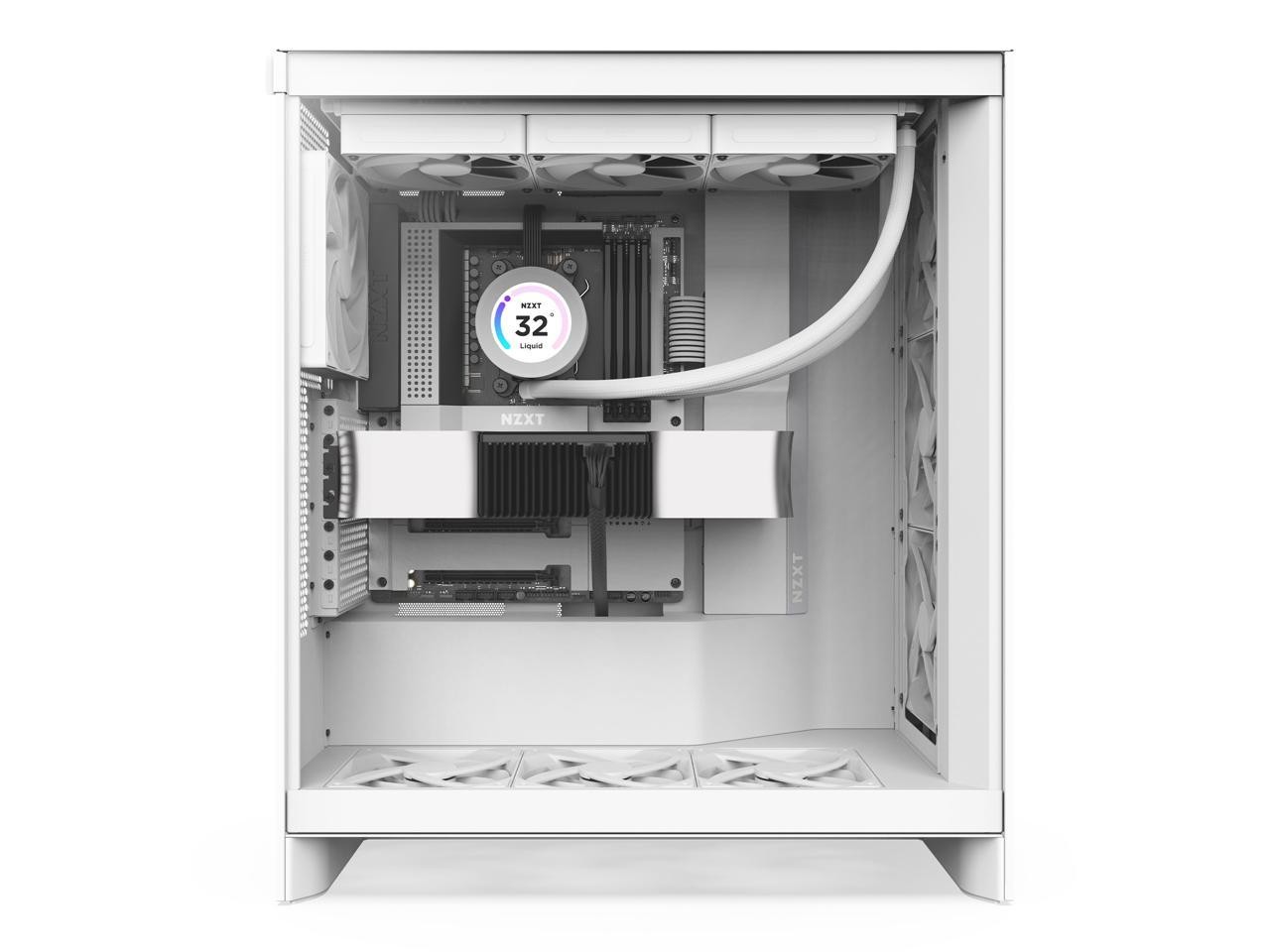

Nzxt CMH72FW01 Mid Tower ATX Gaming Case Nzxt CMH72FW01 Mid Tower ATX Gaming Case
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
-Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
-Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
-High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
-Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
-Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
-Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
-Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
-Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Inside the Box
-H7 Flow:1
-F120Q Airflow Fan (pre-installed, case version):3
-Installation Accessories:1
-Manual:1 Key Specs
Motherboard Support:E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White) Compatibility and Clearance
CPU Cooler Height:Up to 185 mm
GPU Length:Up to 410 mm
PSU Length:Up to 200 mm
Cable Management:Up to 34.5 mm
Top Mounted 140mm / 280mm Radiator and Fan Combined
Thickness:Up to 57 mm Front I/O Ports
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2x2 Type-C (20 Gbps):1
Headset Audio Jack:1 Expansion Slots
Standard:7
Vertical:0 Drive Bays
2.5":2+2
3.5":2 Fan Support
Front:3 x 120 mm / 3 x 140 mm (3 x F120Q included)
Top:3 x 120 mm / 2 x 140 mm
Rear:1 x 120 mm / 1 x 140 mm
Bottom:3 x 120 mm
Filters:High-Performance Mesh Radiator Support
Front:Up to 420 mm
Top:Up to 360mm
Rear:Up to 140mm Fan Specs
Model:F120Q Airflow Fan (Case Version)
Speed:1,350 +/- 150 RPM
Airflow:60.2 CFM
Static:1.05 mm - H2O
Noise:24.1 dBA
Fan Connector:3-pinItem Dimension (L"xW"xH")
26 x 13 x 23
Weight
56.00 lbs
Warranty Information
2 Years SpecificationPhysical CharacteristicsProduct Material
- Galvanized Cold Rolled Steel (SGCC)
- Tempered Glass
Form FactorMid-towerWeight (Approximate)24.54 lbCooler TypeFan CoolerProduct ColorMatte WhiteHeight21.4"Color FamilyWhiteMaximum GPU Length16.14"Maximum PSU CPU Cooler Height7.28"I/O ExpansionsTotal Number of Expansion Slots7Interfaces/PortsTotal Number of Audio Out Ports1USB Port Details
- 2 x USB 3.2 Gen 1 Type-A
- 1 x USB 3.2 (Gen 2) Type C
Front Audio InYesFront Audio OutYesFront USBYesTotal Number of USB Ports3Total Number of Audio In Ports1BaysNumber of Internal 2.5" Bays4Number of Internal 3.5" Bays2General InformationBrand NameNZXTMarketing Information The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint. Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint. Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling. High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust. Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential. Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing. Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear. Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel. Tool-less access to the front, top, and side panels makes building and upgrading a breeze. Product TypeComputer CaseProduct NameH7 Flow Mid-Tower ATX Airflow CaseManufacturerNZXT CorporationManufacturer Part NumberCM-H72FW-01Product ModelCM-H72FW-01Product LineH7 FlowPackaged Quantity1TitleProduct TitleNZXT H7 Flow Mid-Tower ATX Airflow Case (CMH72FW01)Technical InformationMotherboard Supported
Installed Fan Size4.72"Number of Fans Supported7Features
- Dust Filter
- Cable Management
Fan Size Supported4.72"Number of Fans Installed3 Shipping
