1.Main Parameters
Product Name

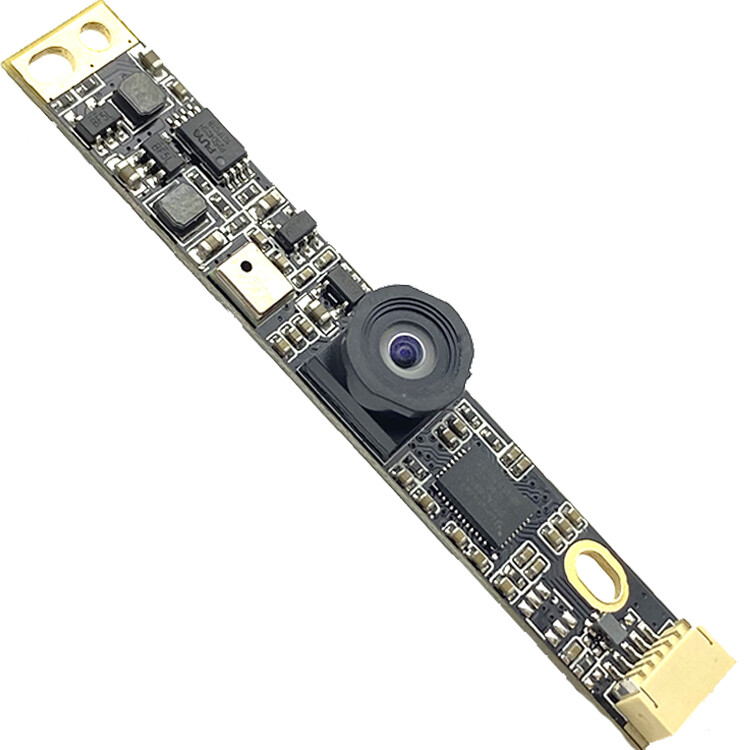

5MP USB2.0 camera module
Product Code
WN-L2103.K208L
Module Size
62*9MM
Image Sensor
1/4.0-inch OV5693 CMOS Sensor
Max. Resolution
2952H x 1944V
Pixel Size
1.4*1.4μm
Output Format
MJPEG, YUY2
Field of View
76.9°
Lens
EFL: 2.83mm, F.NO: 2.5, 4P+IR 650nm
Audio Input
Digital Microphone
Focus Mode
Autofocus
Shutter Mode
Electronic Rolling Shutter
Dynamic Range
Up to 69dB
Output & Power Supply
High Speed USB2.0
Interface
5PIN 1.0mm Connector
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
2.Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPG
2952x1944
30FPS
2560x1440
30FPS
2048x1536
30FPS
1920x1080
30FPS
1280x720
30FPS
800×600
30FPS
640x480
30FPS
YUY2
2952x1944
3FPS
2048x1536
3FPS
1920x1080
5FPS
1280x720
10FPS
640x480
30FPS
3.PIN Definitions
Pin No.
Signal Names
Descriptions
1
VCC
DC 5V
2
DM
USB2.0 Data-
3
DP
USB2.0 Data+
4
GND
Ground
5
GND
Ground
4.Working Conditions
Working Voltage
DC 5V
Working Current
190mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
