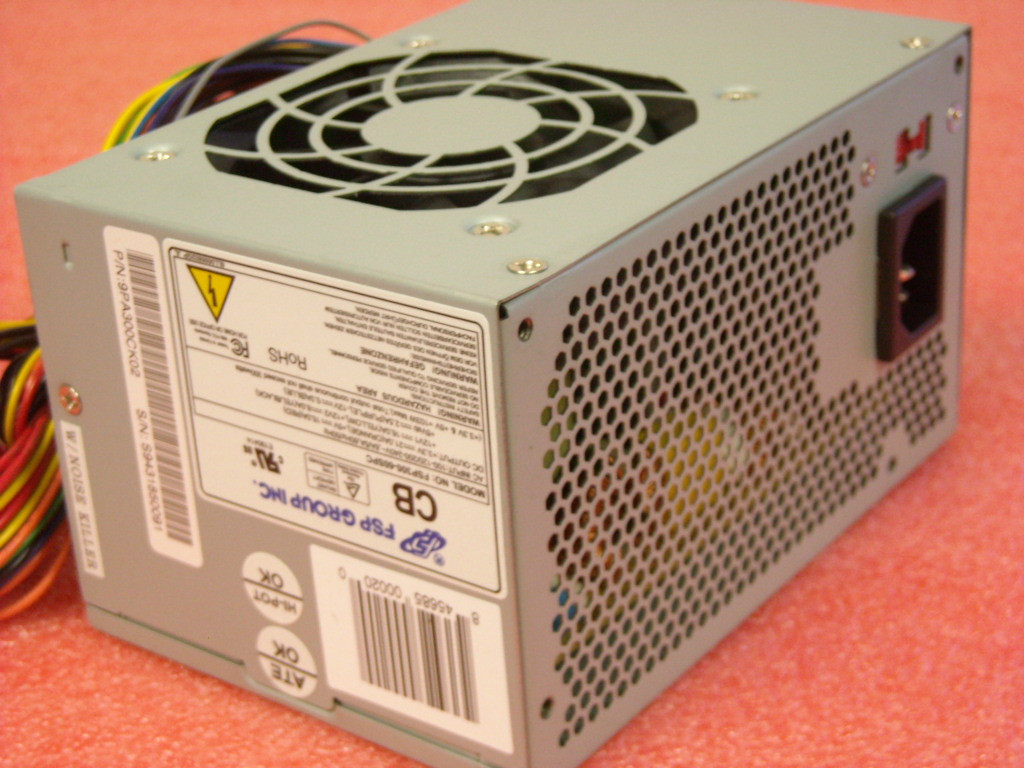

Original FSP300-60SPC, 9PA300CK02,
FSP 300W PS3 Micro ATX Power Supply, NEW!

This is an Original FSP Part, not a replacement or a compatible.

DESCRIPTIONS:

THIS MICRO ATX 300-WATT ATX V2.3 POWER SUPPLY UNIT is designed to fit most compact small form factor PC systems with high-power output in mind. It featuresfull compatibilityto Intel and AMD power CPU and standard PC configurations,300 WATT continuous power output and 80mm vertical cooling fan with thermal sensing technology. It is an excellent choice for compact, small form factor systems integration that demands higher power output AMD/INTEL CPU SYSTEM
300-WATT MICRO ATX/ PS3 SIZE for PC
80mm VERTICAL COOLING FAN SYSTEM
THERMAL CONTROL SYSTEM LINKED TO FAN
ENERGY SAVER | 1-WATT STANDBY MODE
HIGH POWER CONVERSION EFFICIENCY
SUPPORTS SERIAL-ATA OUTPUT

GENERAL SPECIFICATIONS:COOLING Fan(s):Single, 80mm Vertical Flow Cooling FanTOTAL OUTPUT POWER:300-WATT TOTAL CONTINUOUS OUTPUT @ 30¢XCOUTPUT CONNECTORS:Main 24-Pin, P4 4-Pin, (2) Molex 4-Pin, (1) FDD 4-Pin,(2) Serial-ATA 15-PinNVIDIA SLI SUPPORTN/AAMD/ATI CROSSFIRE SUPPORT:N/A80PLUS CERTIFIED:N/AMODULAR CABLE:N/ASAFETY APPROVAL:UL, cUL, FCC, TUV, CBMBTF:100,000 HOURS @ TYPICALUNIT SIZE:150.0mm (W) X 100.0mm (D) X 86.0mm (H)UNIT WEIGHT:1.96 LB (S)INPUT SPECIFICATIONS:Input Voltage:115V AC to 230V AC, 47 ~ 63HzPower Factor Correction (PFC):N/AInput Current:5.0A @ 115 Vrms, 60 Hz.3.0A @ 230 Vrms, 50 Hz.Input Protection:Patented Input Fuse ProtectionOUTPUT SPECIFICATIONS:+12V RAILS:2Output Voltage:+3.3V DC+5V DC+12V1 DC+12V2 DC-12V DC+5Vsb DC (Standby)Output Current:21A @ +3.3V DC15A @ +5V DC11A @ +12V1 DC8A @ +12V2 DC0.3A @ -12V DC1.25A @ +5Vsb DC StandbyOutput Protection:Complete OVP, OCP, SCP ProtectionOVP: OVER VOLTAGE PROTECTIONOCP: OVER CURRENT PROTECTIONSCP: SHORT-CIRCUIT PROTECTION
