Dearvalued buyer, thank you for viewing our page. We will provide you bestservice and high quality products.We promised all the Items will betested earnestly before shipping, ensure it 100% working in orders..

Ifyou're about our item have any concern, please don't hesitate tocontact us. Since the time difference, perhaps we'll reply you late forseveral hours, thank your very much for your understanding.

Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O pannel

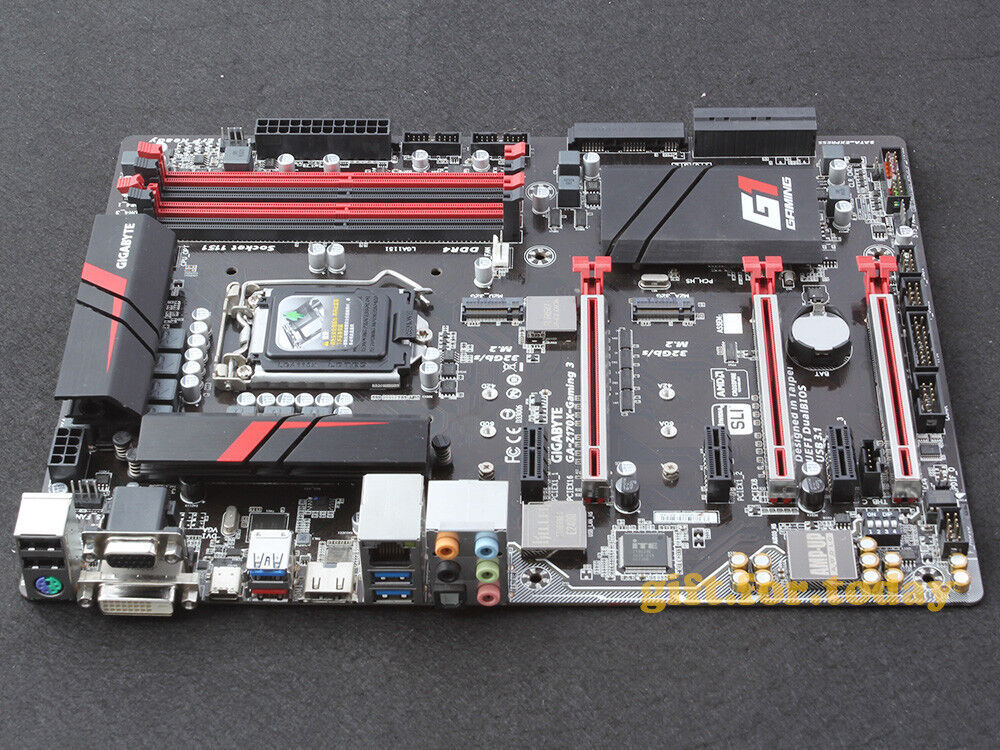

GIGABYTE GA-Z170X-GAMING 3 Motherboard Introduction

CPU

1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
   * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel® Z170 Express Chipset

Memory

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
   * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.) /3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200at60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200at60 Hz
   * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160at24 Hz
   * Support for HDMI 1.4 version.
4. Support for up to 3 displays at the same time
5. Maximum shared memory of 1024 MB

Audio

1. Realtek® ALC1150 codec
2. TI Burr Brown® OPA2134 operational amplifier
3. Support for Sound Blaster X-Fi MB3
4. High Definition Audio
5. 2/4/5.1/7.1-channel
6. Support for S/PDIF Out

LAN

Killer E2201 LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   * The PCIEX4 slot shares bandwidth with the PCIEX1_3 slot. When the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
4. 3 x PCI Express x1 slots
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface

Chipset:

1. 2 x M.2 Socket 3 connectors (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2. 3 x SATA Express connectors
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to "1-9 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.

Multi-Graphics Technology

1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
2. Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies

USB

Chipset:

1. 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Chipset+Intel® USB 3.1 Controller:

1. 1 x USB Type-C™ port on the back panel, with USB 3.1 support
2. 1 x USB 3.1 Type-A port (red) on the back panel

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x M.2 Socket 3 connectors
4. 3 x SATA Express connectors
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 1 x water cooling fan header (CPU_OPT)
8. 3 x system fan headers
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x S/PDIF Out header
12. 2 x USB 3.0/2.0 headers
13. 2 x USB 2.0/1.1 headers
14. 1 x Trusted Platform Module (TPM) header
15. 1 x Thunderbolt™ add-in card connector
16. 1 x serial port header
17. 1 x Clear CMOS jumper
18. 1 x audio gain control switch

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 1 x USB Type-C™ port, with USB 3.1 support
6. 1 x USB 3.1 Type-A port (red)
7. 3 x USB 3.0/2.0 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 1 x optical S/PDIF Out connector
11. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

1. System voltage detection
2. CPU/System/Chipset temperature detection
3. CPU/CPU OPT/System fan speed detection
4. CPU/System/Chipset overheating warning
5. CPU/CPU OPT/System fan fail warning
6. CPU/CPU OPT/System fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   atBIOS
   Ambient LED
   AutoGreen
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Smart TimeLock
   Smart Keyboard
   Smart Backup
   System Information Viewer
   USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install

Operating System

1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
   * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor

ATX Form Factor; 30.5cm x 23.5cm

Remark

 Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

 Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
