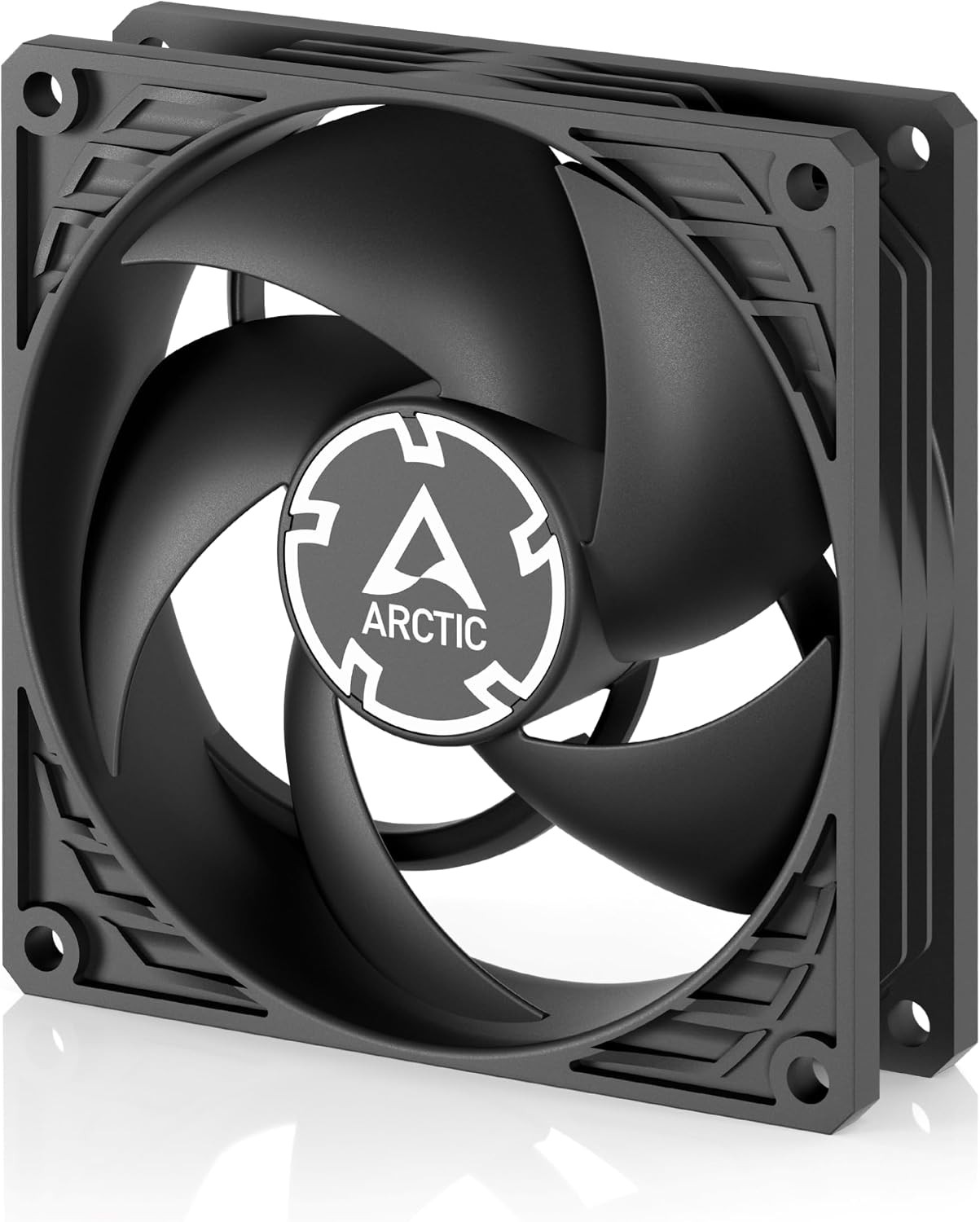

P9 Max - PC Fan High-Performance 92 mm PWM case Max black Product description Powerful and energy efficient
The P9 PWM PST CO is a powerful 92 mm fan with a speed of 200 to 3000 rpm. It delivers a static pressure of 3.12 mmH2O and generates an airflow of 38.83 cfm. Thanks to pulse width modulation (PWM), it enables precise control of the fan speed and is extremely energy efficient with a consumption of just 0.12 A. It also has a 0 dB mode that ensures silent operation when idle.
Optimized for high static pressure
The P9 PWM PST CO delivers a focused airflow and ensures high airflow even with particularly high air resistance. This makes the fan ideal for use on heat sinks, radiators, perforated panels and filters.
0 dB Mode - Zero rpm
The fan can be throttled down to a standstill via PWM, allowing silent operation when idle while ensuring maximum performance when needed. This means the P9 PWM PST CO offers extremely flexible speed adjustment to optimally regulate the airflow in any case.
Designed for continuous operation
The P9 PWM PST CO is equipped with two Japanese ball bearings. These make the fan particularly durable and resistant to external influences such as heat, dust and vibrations. This variant is therefore ideal for 24/7 operation.
200 to 3000 rpm controlled via PWM PST
ARCTIC's PST fans (PWM Sharing Technology) are already equipped with a Y-cable splitter to connect up to four additional PST fans in series. This allows the fan speed of the P9 PWM PST CO and the other fans to be controlled via a single connection.
Size & Weight
- Length: 92 mm
- Width: 92 mm
- Height: 25 mm
- Weight: 105 g
Technical Specifications Fan Specifications
Speed: 200-3000 rpm (PWM controlled), 0 rpm below 5% PWM
Airflow: 38.83 cfm | 65.97 m³/h
Static Pressure: 3.12 mmH₂O
Fan Bearing: Dual Ball Bearing
Typical Voltage: 12 V DC
Start-up Voltage: 5 V DC
Current: 0.12 A
Cable Length: 400 mm + 80 mm Daisy Chain Cable
Connector: 4-pin fan male + 4-pin female
Operating Ambient Temperature: 0-40 °C
Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 80 4.5 out of 5 stars 287 4.6 out of 5 stars 282 4.6 out of 5 stars 234 Price $9.49$9.49 $8.49$8.49 $9.99$9.99 $7.49$7.49 Fan Speed 200–3000 rpm (PWM controlled), 0 rpm below 5 % PWM 200–3000 rpm (PWM controlled), 0 rpm below 5 % PWM 450–4300 rpm (PWM controlled), 0 rpm below 5 % PWM 1900 rpm Airflow 38.83 cfm | 65.97 m³/h 38.83 cfm | 65.97 m³/h 58.25 cfm | 98.97 m³/h 23.96 cfm | 40.70 m³/h Static Pressure 3.12 mmH2O 3.12 mmH2O 6.17 mmH2O 1.32 mmH2O Fan Bearing Dual Ball Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Fluid Dynamic Bearing Voltage 12 V DC 12 V DC 12 V DC 12 V DC Current 0.12 A 0.12 A 0.34 A 0.08 A Cable Length 400 mm + 80 mm Daisy-Chain Cable 400 mm + 80 mm Daisy-Chain Cable 400 mm + 80 mm Daisy-Chain Cable 400 mm Connector 4-Pin Fan Plug + 4-Pin Socket 4-Pin Fan Plug + 4-Pin Socket 4-Pin Fan Plug + 4-Pin Socket 3-Pin Fan Plug
- WIDE RPM RANGE: Thanks to the 4-pin connector, the speed can be controlled via PWM. Below 5 % PWM the fan stands still, above 5 % it is infinitely variable between 200-3000 rpm
- STATIC PRESSURE: Due to the high static pressure, the fan guarantees efficient cooling even with increased air resistance. Suitable for use on heat sinks & radiators
- DESIGNED FOR CONTINUOUS OPERATION: The premium quality of the Japanese double ball bearing allows continuous operation 24/7 without compromising on performance
- MAXIMUM QUIET RUNNING: Even at the lowest speed, the operating noise of the newly developed ARCTIC motor is barely perceptible. This allows you to work on your computer without disturbance
- TECHNICAL DATA: Fan speed: 200-3000 rpm, Airflow: 38.83 cfm | 65.97 m³/h, Static pressure: 3.12 mmH₂O, Connection: 4-pin fan connector + 4-pin socket
Power Connector Type 4-Pin Voltage 12 volts Wattage 1.44 watts Cooling Method Air Compatible Devices Desktop Maximum Rotational Speed 3000 rpm Air Flow Capacity 39 cfm Item Dimensions L x W x H 3.6"L x 0.98"W x 3.6"H Material Type Plastic Global Trade Identification Number 04895213704946 Number of Packs 1 Number of Items 1 Unit Count 1 Count Included Components P9 PWM PST CO Item Weight 105 g Model ACFAN00299A Part Number ACFAN00299A Product Dimensions 3.6"L x 0.98"W x 3.6"H Material Plastic ABOUT US
