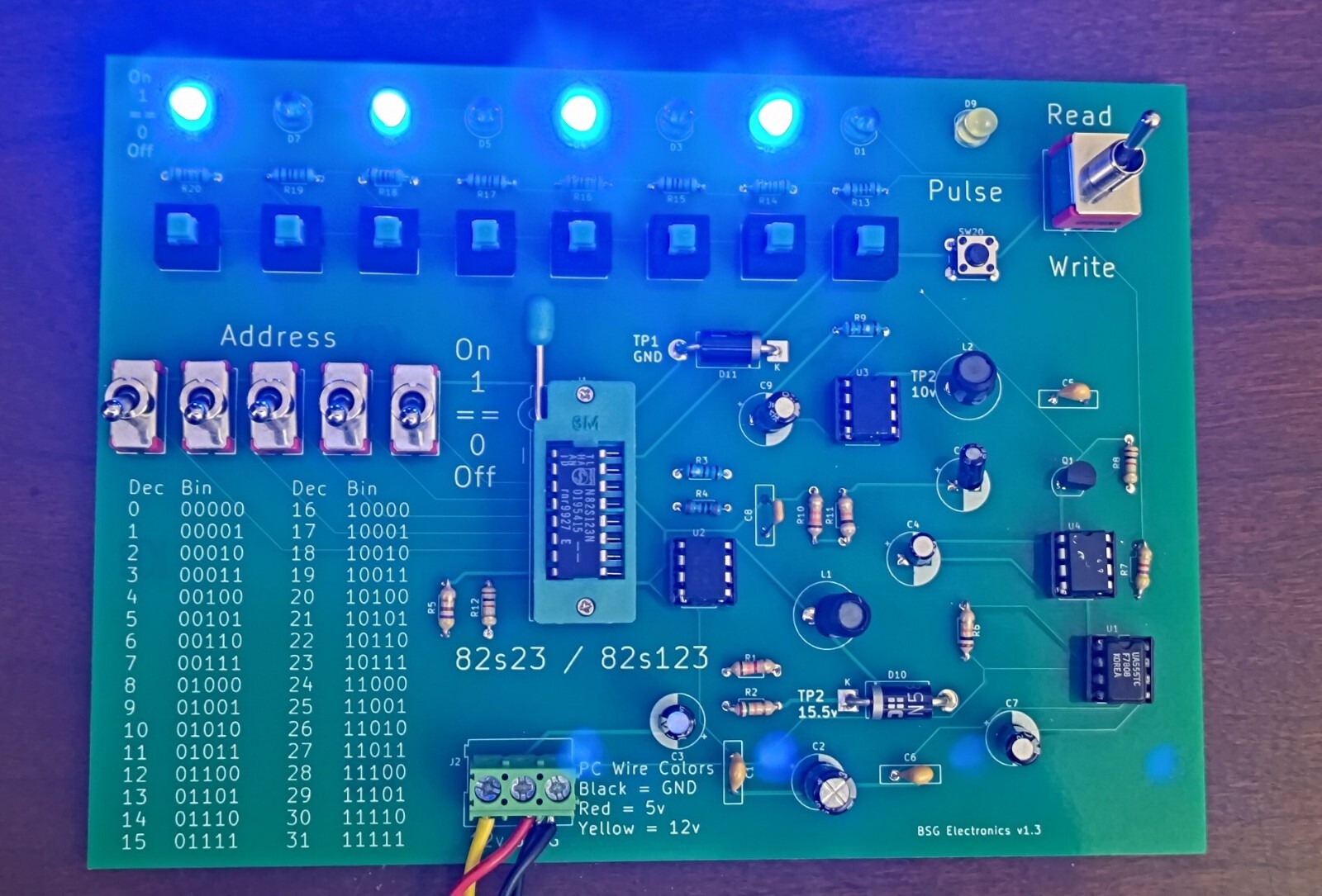

This is a blank PCB only for building a Manual PROM Programmer for 82s123,82s23, 74s288, and 74s188chips. This programmer is designed to be powered from a PC power supply or arcade power supply with 12v and 5v lines. Assembly requires soldering and basic electronics experience.

This sale is for the Board ONLY! You will need to purchase all other components separately. See below for a complete parts list that you can buy at Digikey, , or others. dir="ltr" style="margin-top:0; margin-bottom:0;">Feel free to send a message with any questions about this board, assembly, or use.

Are you unable to order from your country? Please message me

NOTE - Please notice the orientation of the blue buttons when assembling this board. Programmer will not function correctly if buttons are installed backwards.

NOTE #2 - PROM chips are one time write only. Used chips are great for testing purposes before programming a new blank.

Reference Qty Value Note DigiKey or Part # C1 1 100pF C2 1 33 uF 63v C3, C9 2 100 uF 25v C4 1 22 uF 25v C5 1 0.1 uF C6 1 0.01uF C7 1 220 uF 10v C8 1 330pF C10 1 10 uF 25v D1, D2, D3, D4, D5, D6, D7, D8, D9 9 LED 8 Green, 1 Red D10, D11 2 1N5821 J1 1 DIP 16 ZIF Socket "dip 16 zif socket" J2 1 Conn_01x03_Pin 277-1578-ND L1 1 68 uH L2 1 15 uH Q1 1 VP3203N3 VP3203N3-G-ND R1 1 1.3K .25 watt R2 1 15K .25 watt R3, R9 2 0.5 Ohm .25 watt R4 1 180 .25 watt R5 1 470 .25 watt R6 1 10K .25 watt R7 1 1.3K .25 watt R8, R12 2 1K .25 watt R10 1 13K .25 watt R11 1 82k .25 watt R13, R14, R15, R16, R17, R18, R19, R20 8 1.5K .25 watt SW1, SW2, SW3, SW4, SW5 5 SW_SPDT 2449-ANT11SF1CQE-ND SW11, SW12, SW13, SW14, SW15, SW16, SW17, SW18 8 SW_Push_DPDT 141-TL2202OAYA-ND SW20 1 SW_Push SW21 1 SW_DPDT 2449-ANT21SECQE-ND U1 1 LM555xN 555 Timer DIP8 U2, U3 2 MC34063AP U4 1 TC4429 U1, U2, U3, U4 4 DIP8 Sockets (Optional) PC Power Supply Cable 1 item - 112095154991
