Use :

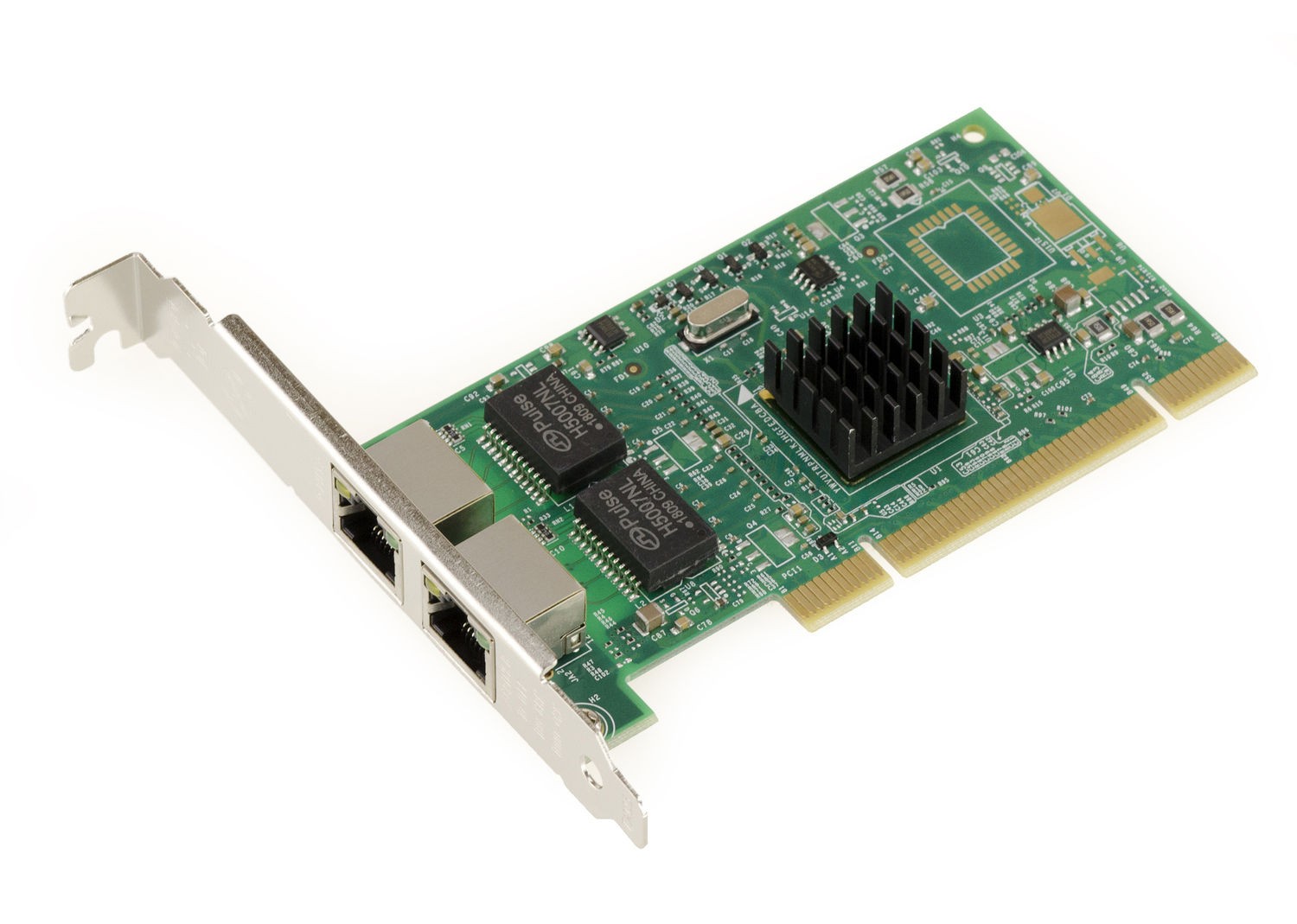

For DESKTOP PC or server on 16 or 32 Bit PCI port. Compatible with all 10Mbps, 100Mbps or 1000Mbps RJ45 networks. Provides two Gigabit Ethernet ports.
Microsoft Windows (32 & 64 bit), Netware, Linux, FreeBSD, Unix, Sun Solaris.
Features :
82546EB/GB chipset.
PCI v2.2 32 bit, 33Mhz.
High performance, reliability and low consumption thanks to the chip integrating MAC and PHY/SERDES.
Acceleration hard'are in order to unload the CPU of the PC/server.
Switch dependent: 802.3ad (LACP), Generic Trunking (GEC / FEC).
Switch and NIC Independent.
Priority queuing? 802.1p layer 2 priority encoding.
Virtual LANs ?802.1q VLAN tagging.
Jumbo Frame (16KB).
802.x flow control.
Boot ROM.
PCI Power Management Interface. (v1.1).
PCI Hot Plug. (IBM, Compaq, Dell, Microsoft).
Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (802.3z, Clause 30).
Link/Activity/Speed ​​LED diodes.
Copper contacts.
Fast Ethernet, 100Base-TX, 1000Base-T.
Single and Full duplex compatible at all speeds. Auto-negotiation between full and single duplex and speed.
Maximum transfer rate in full duplex: 2000Mbit/s 200 20 Mbit/s per port and per cable.
Maximum distance: 10Base-T Category 3, 4, or 5 maximum 100m / 100Base-Tx Category 5 maximum 100m / 1000Base-T Category 5E maximum 100m.
Supplied with two brackets (low profile and high profile).
