PCI-Express PCIe5.0 x16 to MCIO 8i SFF-TA-1016 X16 to X8 X8 Bifurcation Adapter Riser Card The mainboard Needs to be Split PCI-E
Product Details
- One detachable PCIE PCI-Express 8x motherboard can be connected,The converter can be installed into the system internally through the MCIO interface.Only supports motherboards with detachable PCI-E channels.Control the operation of two disks based on the motherboard PCIE channel,The motherboard without PCIE signal split can only recognize one disk.
- 2) Built-in multiple sets of high-power DC modules for sustainable and stable work.
- 3) The adapter is designed for use with ssd that use MICO 8x connectors, allowing for fast and reliable data transfer at speeds of up to 24 Gbps.
- 4) The MCIO Mini Cool Edge IO is designed to support a wide range of protocols, including SAS, PCIe, Ethernet, and more, ensuring optimal performance for your equipment.
- 5) Support for SAS 3.0/4.0, PCIe Gen 3/4/5, 25G Ethernet, and 56GT/s PAM4 means that you can trust that your equipment will perform at optimal levels without any signal loss or degradation.

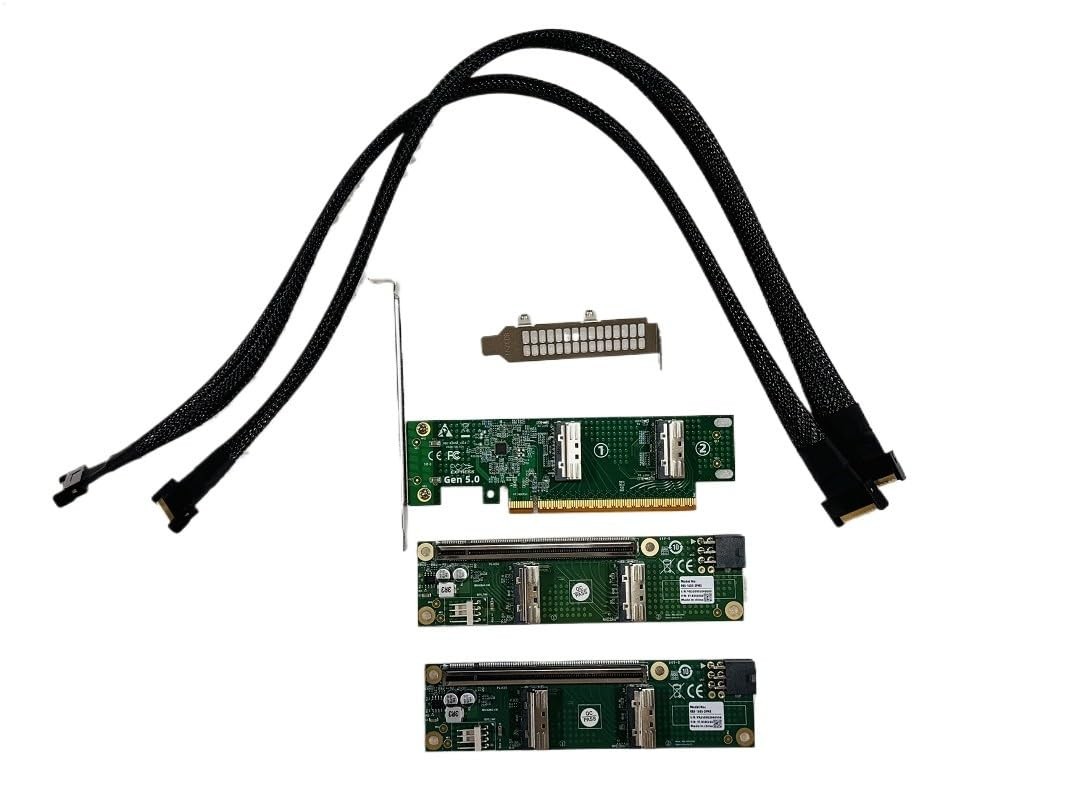

1 PCS PCIe5.0 x16 to 2*MCIO 8i 2 PCS MCIO TO MCIO cable cross line 2 PCS MCIO baseplate ■ two 56G PCIe5.0 MCIO 8i input ■ one PCIe x16 electrical/mechanical output ■ PCIe gen5 - high quality Amphenol SMT slot, ■ 85Ohm Ultra Low Loss PCB ■ can work in x8 mode with one cable (input near the power plug) ■ can work in x16 mode with both inputs connected (must be the same CPU host port and lane ordering must be 0-7->8-15, NOT 8-15->0-7, switching the cables will help!) ■ GPU Power connector to supply 12V. DO NOT connect the wrong power connector, it will destroy the Adapter and your GPU!!! ■ 6A 12V->3.3V buck voltage regulator Product Type Power Connector ATX 2*3 GPU Mini fit 5569 Device Count 1 PCIe AIC Host Connectors 2 MCIO 74Pin Physical Dimensions 138.5mm*38mm weight 250g Operating Voltage +12V +/-8%; Environmental Operating: 0°C to 70°C Storage: -40°C to 70°C 5 to 90% non-condensing
