ThePE4C V3.0is designed for Notebook PCs that converts PCI Express 16X Add-on Card to ExCard ormPCIe or PCIe x1 connector with up toGen3(8Gbps) speed.

This adapter allows you to use your existing PCI-E 16X Card in the notebook PC for gaming.

Function

• VGA card connection to computer or notebook PC
• Support two delay switch to avoid registration problems when boot. (SW1, SW2)
• Special foot cone, avoid graphics card fan noise.
• Support ATX power boot together function.
• DC Jack: External 12V Power Input (Not included)
• Support Suspend Clock (ExCard & mPCIe)
• Support two sets external pin to setup delay time. (J2, J3)

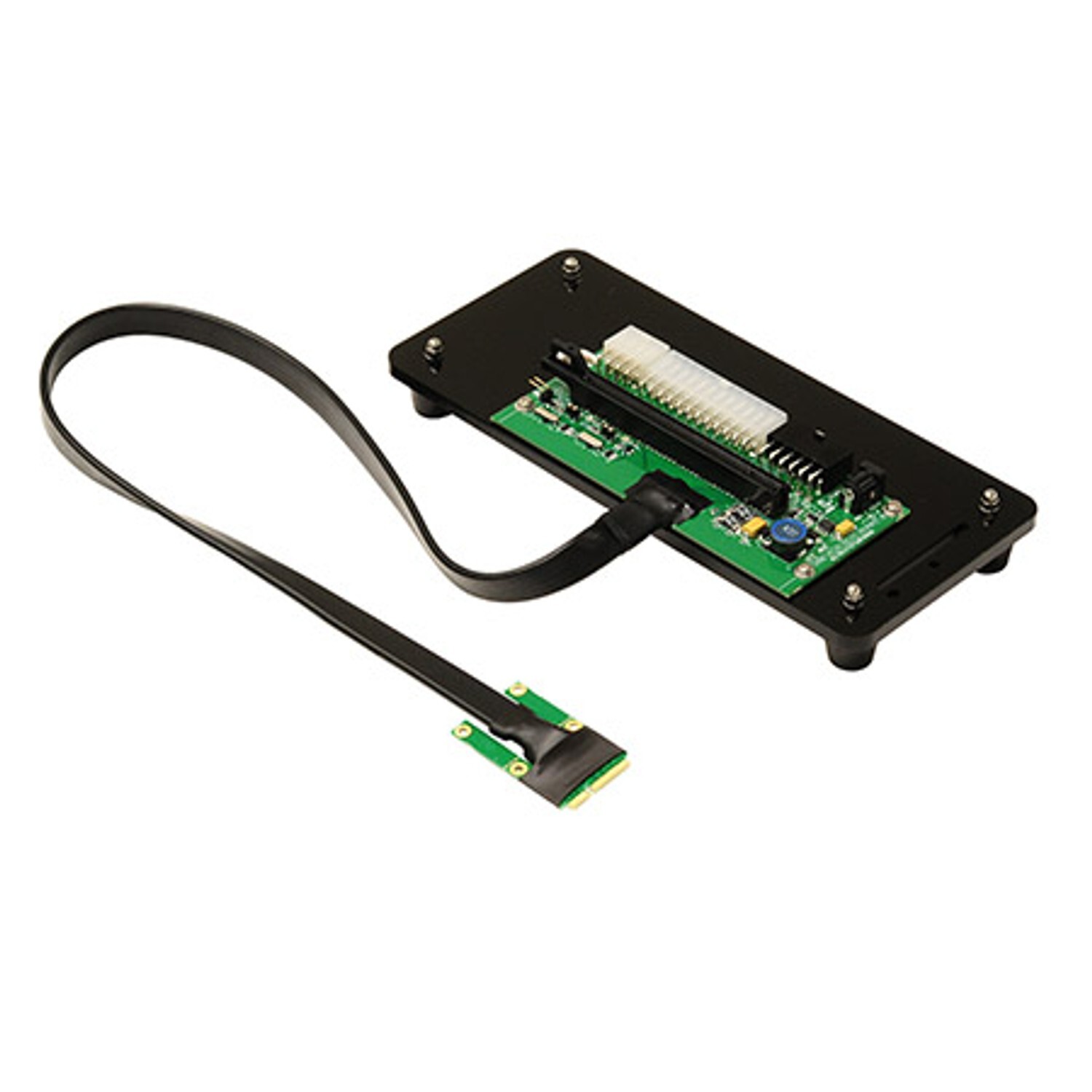

• PE4C-PM060A V3.0 –PCI-E to mPCI-e adapter


Specification

• PE4C-PM060A V3.0allows user to test PCI Express x16 Add-in-Card on thePCI Express mini card (mPCIe) slot.– Cable 60cm
• Compliant with PCI Express 3.0 Specification: Maximum 8Gbps
• Power Supply: ATX PSU, 12V DC Jack adapter, 8PIN connector (for D220P AC adapter),Three select one.

System Requirements

• Notebook PC or Desktop PC with an availableExpress-card slotorPCI-Eslot orPCI Express mini card slot
• Windows 11 (32/64-bit) / Windows 10 (32/64-bit) / Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) SP2 or later/ XP (32-/64-bit) SP3 or later

Dimension & Weight

• 22cm x 9.5cm x 4cm 200g

Certifiction

• RoHS

Operating Temperature

• 0 ~ 70℃

PE4C VGA Recommendation From

Compatibility test table

Notice

• PE4C V3.0is PCIe 1-Lane 8.0Gbps bandwidth limit passive adapter in compliance withExpresscard 3.0specification.
• Basically, PCIe add-on card designed for desktop. We can’t guarantee it compatibility with your laptop. Depends on OS version, notebook’s BIOS, device driver,
• Almost PCIe 16x video card can’t get enough memory resource are allocated. Can’t work in your laptop.
• External Power ATX Power required.
• All of interoperability is not guaranteed.
• For more graphics cards experiences. Please visit web-sitehere.

PE4C-PM060A V3.0
