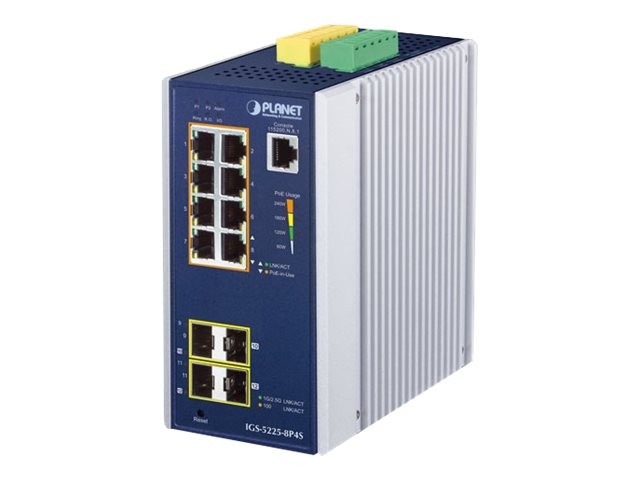

PLANET IGS-5225-8P4S - Switch - L2+ - Managed - 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - DIN rail mountable, wall-mountable - PoE+ (240 W) - DC power
Product Description : PLANET IGS-5225-8P4S - switch - 12 ports - Managed
Device Type : Switch - 12 ports - L2+ - Managed
Subtype : Gigabit Ethernet
Ports : 8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) : PoE+
PoE Budget : 240 W
Performance : Switching fabric bandwidth: 24 Gbps
Throughput (64-byte packet size): 17.85 Mpps
Capacity : VLAN groups: 255
VLAN IDs: 4094
Multicast groups: 255
ACL entries: 123
Virtual interfaces (VLANs): 8
Routing entries: 32
MAC Address Table Size : 8K entries
Jumbo Frame Support : 9KB
Routing Protocol : IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD
Remote Management Protocol : SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
Features : Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, DAI, reset button, bandwidth control, LLDP support, DHCP relay, port configuration, SNMP trap, MVR, CoS, tagged VLAN, GVRP, PSE, PTP, ERPS, Protocol-based VLANs support, system log, IP source guard, Back Pressure Support, Link Aggregation, IGMP querier, Voice VLAN, PVE, DSCP Marking, WRR, MAC based VLAN, DSCP/TOS field in IP packet, BPDU Guard, Q-in-Q tunnelling, port disable, 5KV ESD Protector, aluminium housing, MLD querier, NTP support, SMTP alerts, UDLD
Compliant Standards : IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, ITU-T G.8032
Power : DC 48 - 56 V
Dimensions (WxDxH) : 7.68 cm x 10.73 cm x 15.2 cm
Weight : 1.093 kg
