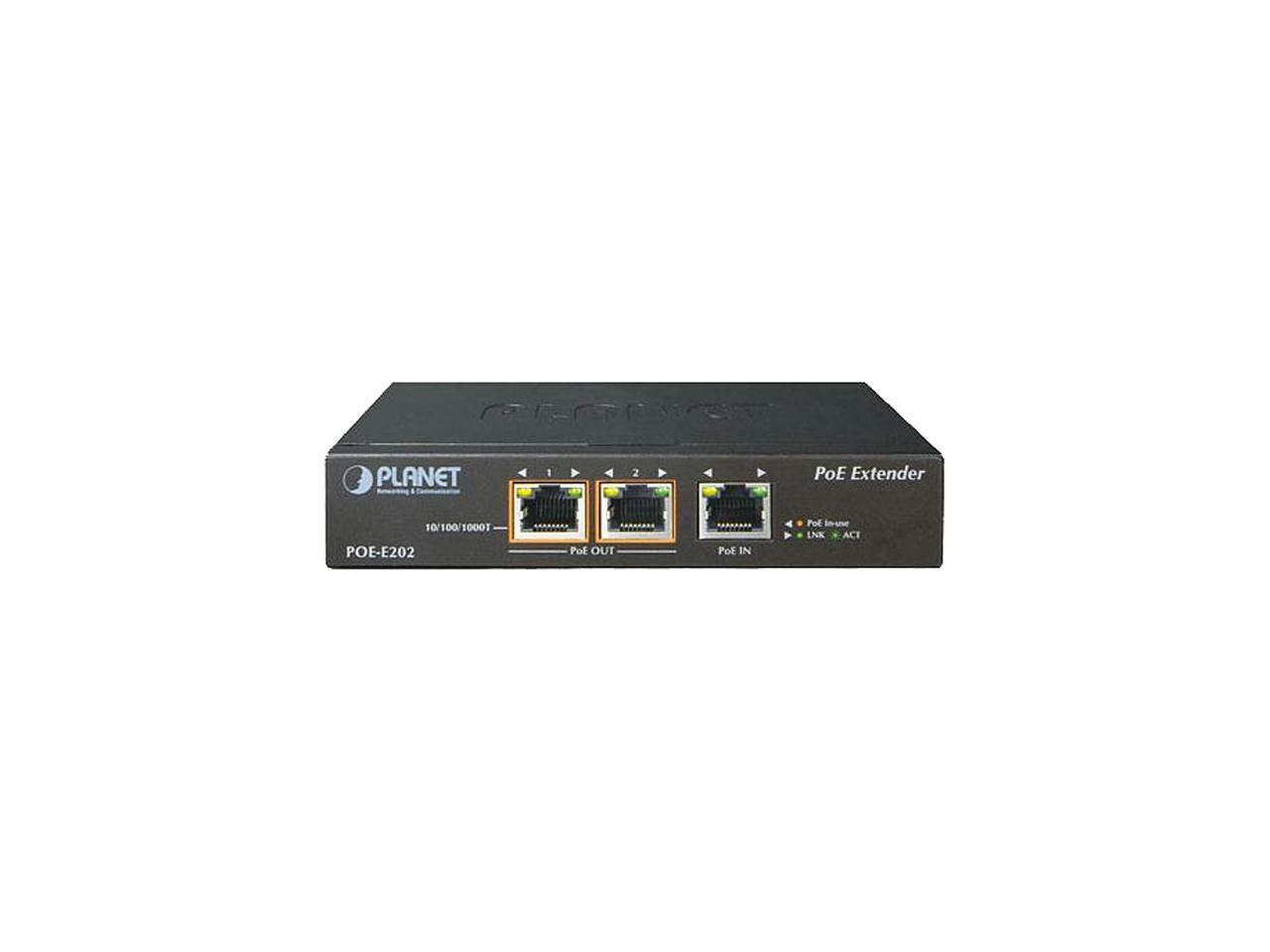

Learn more about PLANET ExtenderSpecificationsInterfaces:PoE IN:1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE "Data + DC power" in auto MDI/MDI-X, auto-negotiation RJ45 connector PoE OUT: 2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE "Data + DC power" out auto MDI/MDI-X, auto-negotiation RJ45 connector Power over Ethernet PoE Standard: "PoE In" Port: IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PDPer "PoE Out" Port:IEEE 802.3at Power over Ethernet Plus end-span PSEIEEE 802.3af Power over Ethernet end-span PSE PoE Power Supply Type: End-span (Type A) PoE Power:"PoE In" Port: 52 - 56V DC, max. 30.8 wattsPer "PoE Out" Port: 44 - 55V DC, max. 25 watts Power Pin Assignment:"PoE In" Port: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)Per "PoE Out" Port: 1/2 (+), 3/6 (-) Data Rate: 10/100/1000Mbps MAC Address Table: 2K Data Buffer: 2M bits Switch Architecture: Store-and-Forward Switch Fabric: 6Gbps Switch Throughput: 4.46 Mpps at 64 bytes Jumbo Frame: 10KB Flow Control: IEEE 802.3x pause frame for full duplex; Back pressure for half duplex LED Indicators:"PoE In" Port: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green)"PoE Out" Port 1: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green)"PoE Out" Port 2: PoE-in-Use x 1 (Orange), LNK/ACT x 1 (Green) Protection:ESD (Ethernet): 2KV (TBD)Surge (EFT for power) : 2KV (TBD) Enclosure: Metal Installation: Wall mountable Power Requirements: IEEE 802.3at compliant with voltage within 52V - 56V DC Power Consumption:1.6 watts / 5.5BTU (System on with PoE input)2.2 watts / 7.5BTU (Ethernet full loading without PoE function)36 watts / 122.8BTU (Full loading with PoE function) Network Cable10BASE-T: 4-pair UTP Cat. 5 up to 100m (328 ft.)100BASE-TX: 4-pair UTP Cat. 5 up to 100m (328 ft.)1000BASE-T: 4-pair UTP Cat. 5e, 6, up to 100m (328 ft.)EIA/TIA-568 100-ohm STP (100m, 328 ft.)FeaturesFeaturesPhysical Port3-port 10/100/1000BASE-T Gigabit RJ45 interface1-port data + power input2-port data + power outputPower over Ethernet1-port data + power input:Complies with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PDSupports PoE input power up to 30.8 watts2-port data + power output:Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSEUp to 2 IEEE 802.3af/802.3at devices poweredSupports PoE power up to 25 watts for each PoE portAuto detects powered device (PD)Extends the range of PoE to an additional 100 meters (328ft.)Forwards both Ethernet data and PoE power to remote deviceLayer 2 FeaturesHardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-XIntegrates address look-up engine, supporting 2K absolute MAC addresses10K iumbo packet supportIEEE 802.1Q VLAN transparencyFeatures Store-and-Forward mode with wire-speed filtering and forwarding ratesIEEE 802.3x flow control for full duplex operation and backpressure for half duplex operationAutomatic address learning and address agingSupports CSMA/CD protocolCase and InstallationNo external power cable installation requiredMade of metal, desktop size designWall-mountable, Plug-and-Play installation0 - 50 degrees Celsius operating temperatureShippingEnjoy fast and reliable shipping when you buy your products from Newegg. Our ordering and shipping services are among the best in the industry due to short processing times and a variety of shipping methods. Your orders are packaged at one of the many local warehouses across the country, minimizing delivery times and ensuring you get your purchases as soon as possible.PaymentsNewegg has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology.ReturnReturns are subject to restocking fees of 15% - 30% of the purchase price and return shipping fees. For products that are eligible for return for replacement, the return shipping labels are free for returns for replacement of the same item within the applicable return policy period. Newegg does NOT charge for restocking fees or return shipping labels for returns of defective products, or if you received the wrong product, the product did not match what was shown on the Site, or we made some other shipping error, provided the item is returned within its return policy period, and in accordance with the Return Policy. For international buyers, items shipped internationally do not qualify for manufacturer warranties.
