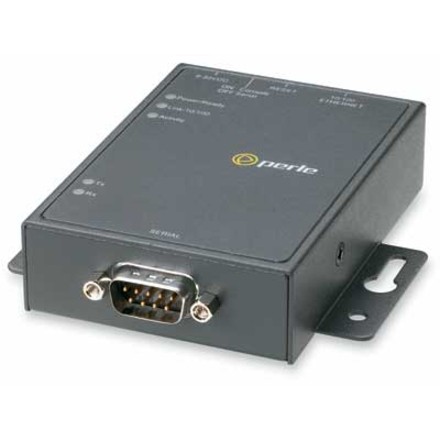

Perle IOLAN DS1 G9 Serial Device Server Perle IOLAN DS1 G9 Serial Device Server

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: IOLAN DS1 G9 Serial Device Server 120 V AC (USA) Wall Power Adaptor

Certifications & Standards: Emissions: CFR47 FCC Part 15 Subpart B:2015 ICES-003:2016 Issue 6:2016 CISPR 32:2015/EN 55032:2015 (Class A) CISPR 16-2-3:2010/A2:2014 EN61000-3-2:2014, Limited for Harmonic Current Emissions EN61000-3-3:2013, Limits of Voltage Fluctuations and Flicker Immunity: CISPR 24:2010/EN 55024:2010 EN61000-4-2: 2009 Electrostatic Discharge EN61000-4-3: 2006/A2:2010: RF Electromagnetic Field Modulated EN61000-4-4: 2004 Fast Transients EN61000-4-5: 2006 Surge EN61000-4-6: 2009 RF Continuous Conducted EN61000-4-8: Power-Frequency Magnetic Field Safety: EN61000-4-11: Voltage Dips and Voltage Interruptions IEC 62368-1 and EN 62368-1:2014 CAN/CSA-C22.2 No. 62368-1-14 and UL 62368-1

Environmentally Friendly: Yes

Energy Star: Yes

Environmental Compliance:

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Canada

Product Description

This item is brand-new, factory sealed.

The IOLAN DS/TS Device Server is the best choice for simple serial to Ethernet connectivity applications. Delivering a cost effective solution in a compact size, the IOLAN DS/TS offers flexibility and advanced TrueSerial® technology making it ideal for applications that require an authentic serial connection across an Ethernet network. IOLAN DS1 Device Servers are also available with support for Extended Temperature Ranges.

Features and Benefits

• TrueSerial® delivers the most authentic serial connections across Ethernet
• Powerful processors for the best throughput and performance on the market
• Indicators for network and serial interfaces for easy troubleshooting
• Plug & Play installation utility eliminates configuration hassles for all IOLANs on you IP network
• TruePort software provides true remote serial ports over an Ethernet LAN
• Share a serial port with multiple TCP or UDP servers
• Software Development Kit available to develop powerful custom applications
• Power over serial cable models eliminate costs of a separate power installation
• Next Generation IP support (IPv6) for investment protection and network compatibility
• Compact and protective solid steel enclosure for tabletop, wall mount or DIN rail mounting

Flexible and Reliable Serial to Ethernet Connections

The IOLAN DS/TS is ideal for connecting serial-based COM port, UDP or TCP socket based applications to remote devices. Perle's TruePort re-director provides fixed TTY or COM ports to server based applications enabling communication with remote devices connected to Perle device servers. You can also tunnel serial data between devices across an IP network.

Easy to set up and manage, the IOLAN DS1 has a software selectable RS-232/422/485 interface capability which simplifies setup and eliminates mechanical tampering associated with DIP switch based products.

Perle's Device Management software, shipped as standard with the IOLAN DS/TS, provides better centralised control and management of multiple units resulting in maximum uptime for your remote equipment. Protection against electrostatic discharges and power surges is provided on the IOLAN DS/TS with its robust 15Kv ESD protection circuitry enabling organisations to utilise this solution with confidence.

IOLAN Plug-ins

Backed with the experience of connecting hundreds of thousands of different devices to Ethernet over the years, using a Perle Device Server you can rest assured that virtually any device with a serial COM port will operate in conjunction with your desired application exactly as it did when you had it directly connected. If the unlikely event occurs that the Perle Device Server does not enable this out of the box, Perle will make it work.

Perle IOLAN Device Servers utilize customer installable "Device Plug-ins" to successfully network devices where other solutions have failed.

Package Contents:

• IOLAN DS1 G9 Serial Device Server
• 120 V AC (USA) Wall Power Adaptor

SpecificationPower DescriptionInput Voltage24 V DCPhysical CharacteristicsForm Factor

• Wall (Approximate)8.11 WarrantyLifetimeInterfaces/PortsNetwork (RJ-45)YesNumber of Serial Ports1Serial PortYesManagement PortYesNumber of Network (RJ-45) Ports1MemoryStandard Memory512 MBGeneral InformationBrand NamePerleMarketing Information The IOLAN DS/TS Device Server is the best choice for simple serial to Ethernet connectivity applications. Delivering a cost effective solution in a compact size, the IOLAN DS/TS offers flexibility and advanced TrueSerial® technology making it ideal for applications that require an authentic serial connection across an Ethernet network. IOLAN DS1 Device Servers are also available with support for Extended Temperature Ranges. Features and Benefits TrueSerial® delivers the most authentic serial connections across Ethernet Powerful processors for the best throughput and performance on the market Indicators for network and serial interfaces for easy troubleshooting Plug & Play installation utility eliminates configuration hassles for all IOLANs on you IP network TruePort software provides true remote serial ports over an Ethernet LAN Share a serial port with multiple TCP or UDP servers Software Development Kit available to develop powerful custom applications Power over serial cable models eliminate costs of a separate power installation Next Generation IP support (IPv6) for investment protection and network compatibility Compact and protective solid steel enclosure for tabletop, wall mount or DIN rail mounting Flexible and Reliable Serial to Ethernet Connections The IOLAN DS/TS is ideal for connecting serial-based COM port, UDP or TCP socket based applications to remote devices. Perle's TruePort re-director provides fixed TTY or COM ports to server based applications enabling communication with remote devices connected to Perle device servers. You can also tunnel serial data between devices across an IP network. Easy to set up and manage, the IOLAN DS1 has a software selectable RS-232/422/485 interface capability which simplifies setup and eliminates mechanical tampering associated with DIP switch based products. Perle's Device Management software, shipped as standard with the IOLAN DS/TS, provides better centralised control and management of multiple units resulting in maximum uptime for your remote equipment. Protection against electrostatic discharges and power surges is provided on the IOLAN DS/TS with its robust 15Kv ESD protection circuitry enabling organisations to utilise this solution with confidence. IOLAN Plug-ins Backed with the experience of connecting hundreds of thousands of different devices to Ethernet over the years, using a Perle Device Server you can rest assured that virtually any device with a serial COM port will operate in conjunction with your desired application exactly as it did when you had it directly connected. If the unlikely event occurs that the Perle Device Server does not enable this out of the box, Perle will make it work. Perle IOLAN Device Servers utilize customer installable "Device Plug-ins" to successfully network devices where other solutions have failed. Product TypeDevice ServerProduct NameIOLAN DS1 G9 Serial Device ServerManufacturerPerle Systems, IncManufacturer Part Number04031774Product ModelDS1 G9Product LineIOLANMedia & PerformanceMedia Type SupportedTwisted PairTitleProduct TitlePerle IOLAN DS1 G9 Serial Device Server (04031774)Processor & ChipsetProcessor Speed600 MHzNetwork & CommunicationNetwork Standard10/100/1000Base-TEthernet TechnologyGigabit Ethernet Shipping
